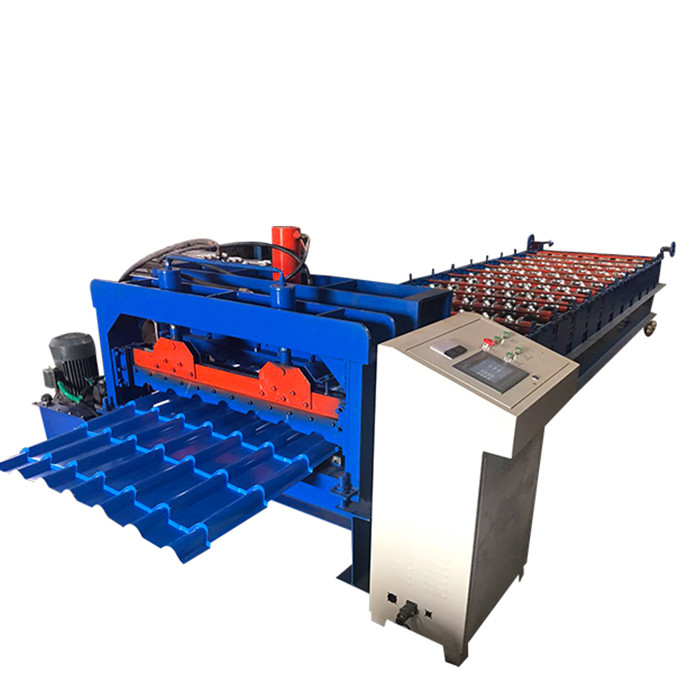

Galvanised Steel Roofing Sheets Roll Forming Machine Automated Production Lines

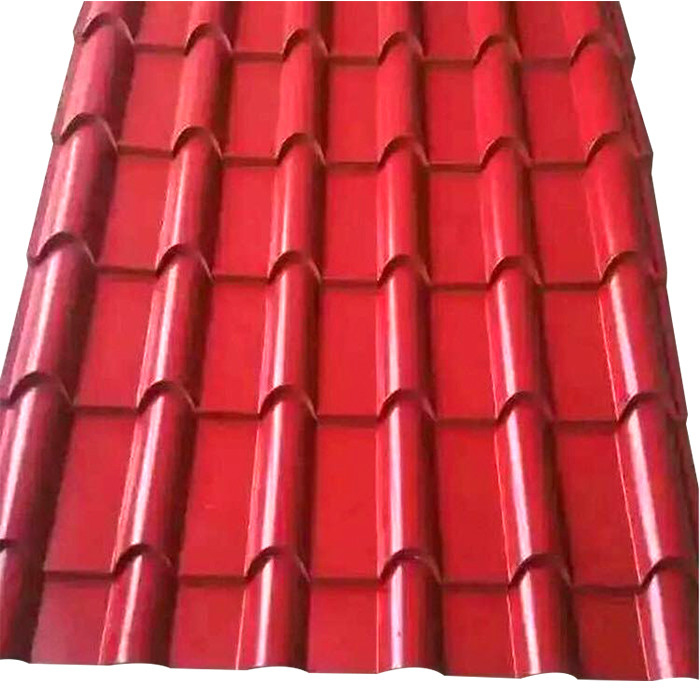

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.
Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.
Specification
| 1 | material of input sheet | galvanized steel/ colored steel |
| 2 | feeding width | 1200mm |
| 3 | effective width | 960mm |
| 4 | material thickness | 0.3-0.8mm |
| 5 | main motor power | 4kw |
| 6 | hydraulic pump power | 4kw |
| 7 | forming step | 13steps |
| 8 | diameter of shaft | 75mm |
| 9 | main frame | 300H steel |
| 10 | roller material | 45# steel with chrome |
| 11 | cutting knives material | Cr12 |
| 12 | control system | PLC control system with inverter (Delta brand) |
| 13 | working speed | 6-8m/min |
| 14 | machine size | 6.0*1.5*1.3m |
| 15 | machine weight | about 3.5 tons |
| 16 | voltage | 380v 3phase 50hz |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
