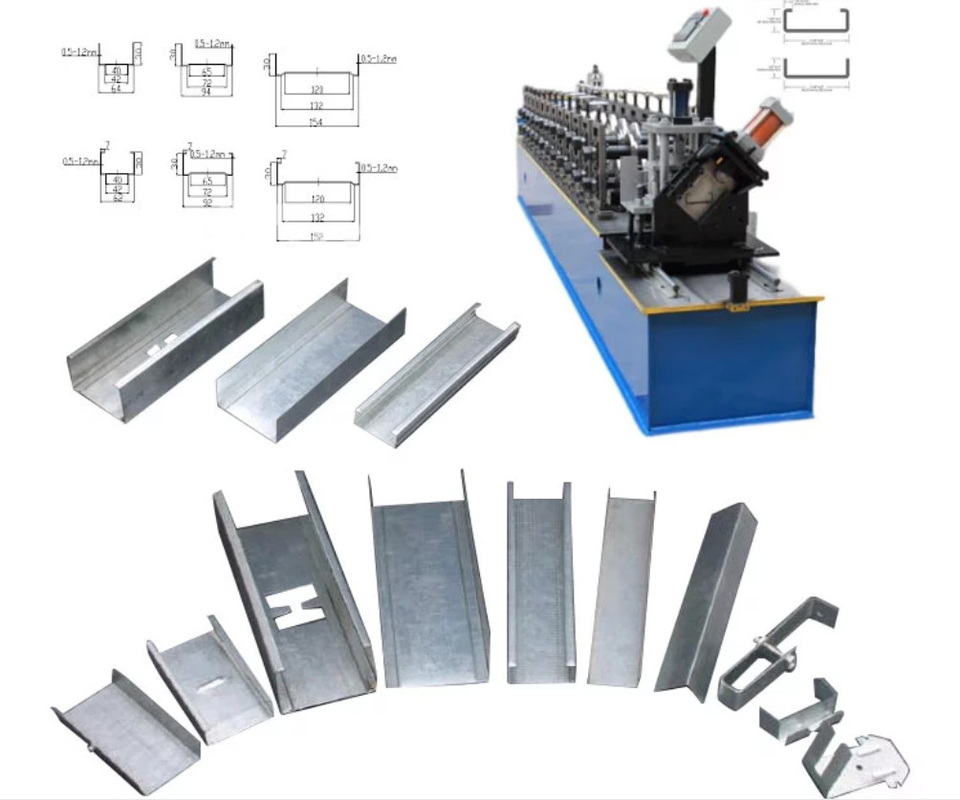

Structural Steel Framing Roll Forming Automated Production Lines

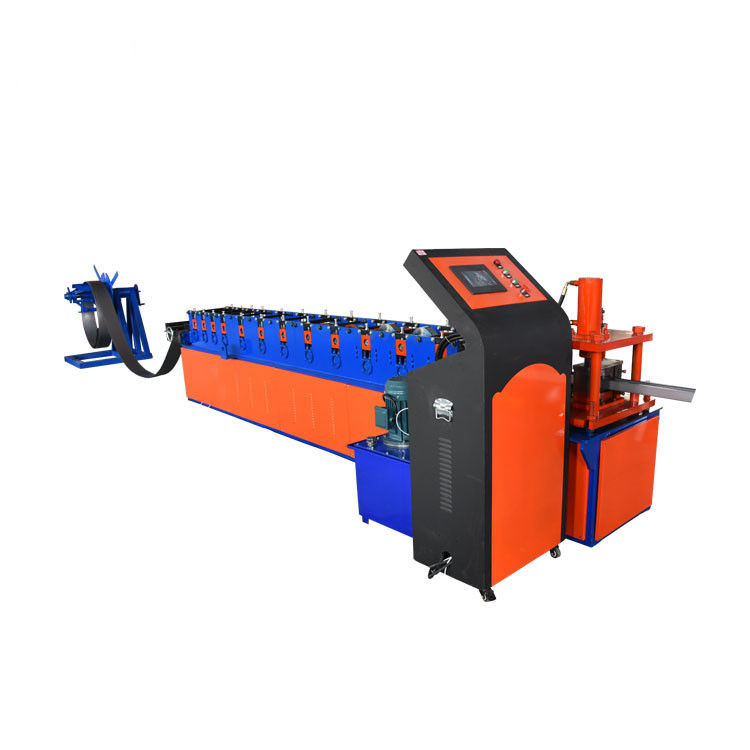

A drywall stud and track roll forming machine usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. Under PLC control system, this drywall stud and track roll forming machine fully automatically produces 4-6 metal c studs or u tracks out of galvanized steel.
Specification
| No. | Item | Description |
| 1 | Production Capacity | 25m/min |
| 2 | Web size | 46mm to 146mm |
| 3 | Lip dimension | 6mm |
| 4 | Condition | New |
| 5 | Rolling thinckness | 0.4-0.8 mm |
| 6 | Warranty of core components | 1 Year |
| 7 | Tile Type | Steel |
| 8 | Place of Origin | Hebei, China |
| 9 | Cutting Accuracy | ±2 mm |
| 10 | Driving Mode | Single Chain 1 inch |
| 11 | Material of Shaft | 60 mm 45#steel forged |
| 12 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
