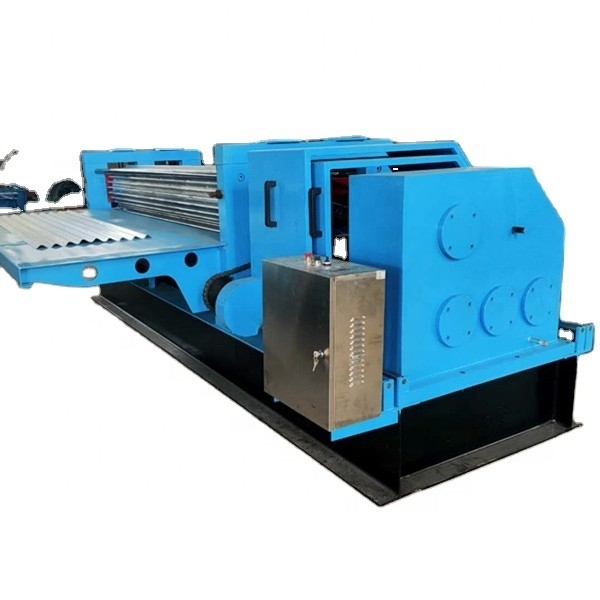

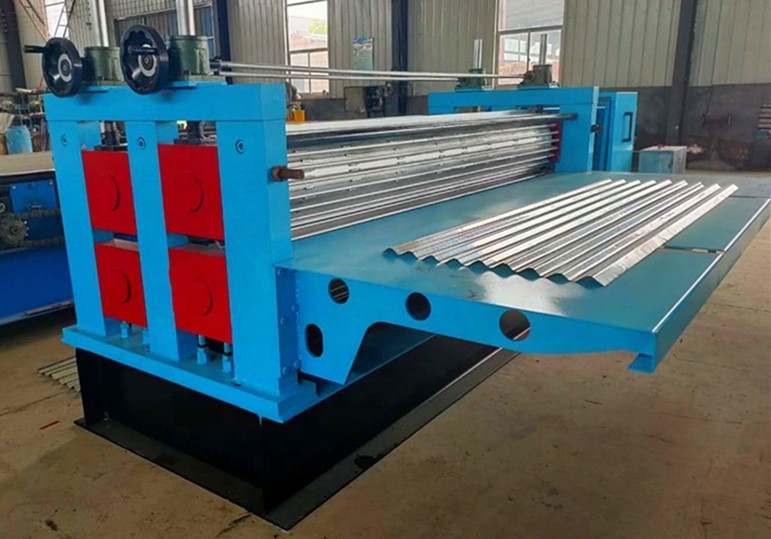

Iron Sheet Roll Forming Machine 0.14-0.3mm Barrel Corrugator
Barrel Corrugated Roll Forming Machine is for thin material from 0.12-0.4mm thinkness. It is very popular in Africa, such as Nigeria, Kenya, South Africa and Senegaln etc.
Parameter
1.Transverse barrel corrugating type.
2.Raw material: thin Galvanized steel sheets, Aluzinc steel sheets etc
3.Sheet width:762mm(2.5 feet),914mm(3 feet),1000mm,1250mm
4.Thickness range:0.1mm to 0.25mm (0.17mm).
5.Sheet Maximum length:4500mm, Thickness: 0.14mm to 0.30mm
6.Pitch:76 mm(+/-1.0mm) or customer(s) required.
7.Depth:18mm(+/-0.5mm) or customer(s) required.
8.Corrugation:large round wave
9.Drive:geared motor 7.5Kw -8kw
10.Forming speed: 9-12 times per min
11.Corrugation roll:barrel length 2500mm-4500mmL.
12.Pitch adjust roll:barrel length 2500mm-4500mmL.
13.Power:380V (50HZ).
14.Capacity: 2-4 Ton per hour
