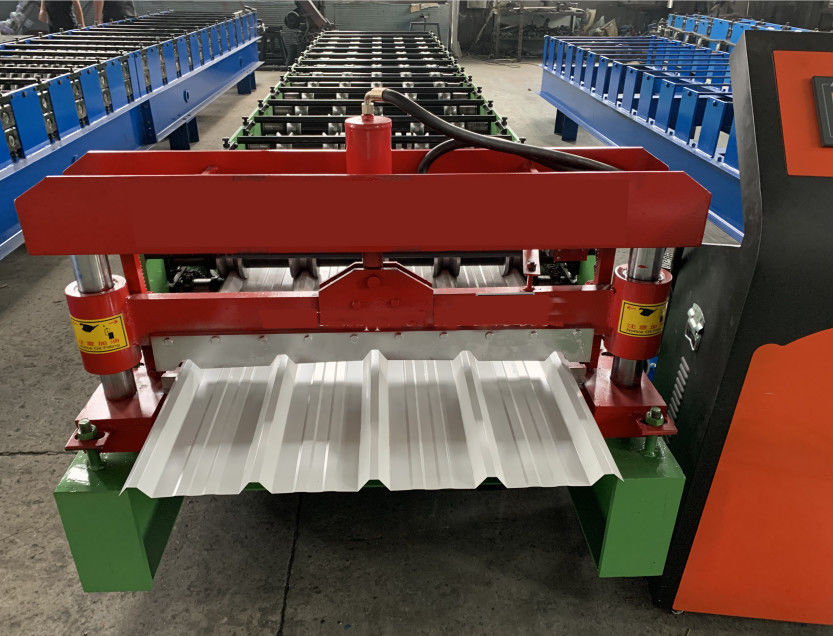

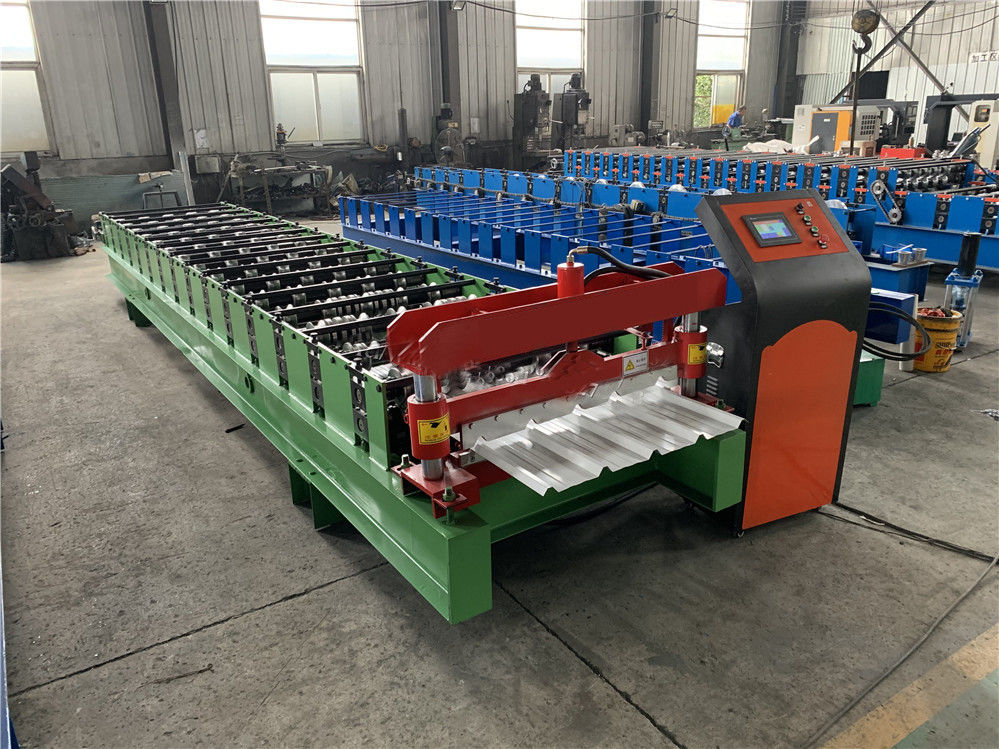

Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon
The trapezoidal metal roofing making machine used fully automatic control system,It has the characteristics of high output and high quality.
The Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon is a affordable metal roofing machine . This roof machine include the decoiler , feeding table , main machine , cutting device , plc control box , oil pump and receving table .
The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.
Specification
|
Feeding width
|
1000 mm (According to the profile)
|
|
Thickness
|
0.3-0.8mm
|
|
Roller Stage
|
16 rows
|
|
Roller Material
|
45# forging steel with chromium plate
|
|
Roller station
|
15 steps (According to the profile)
|
|
Material of cutting blade
|
Cr12Mov, Quenched treatment 58℃-60℃
|
|
Main Structure of the Machine
|
350H beams
|
|
Side Panel of Machine
|
16mm
|
|
Chain
|
1.2 inch
|
|
Motor power
|
4 kw
|
|
Hydraulic pump power
|
4 kw
|
|
Voltage
|
380V 50Hz 3phases or Customerization
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
