Crimping Curved Arch Plc Roof Sheet Roll Forming Machine Automatic

Crimping Curved Arch Plc Roof Sheet Roll Forming Machine Automatic

crimping roof sheet roll forming machine

plc roof sheet roll forming machine

plc controlled sheet roll forming machine

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

FMS

प्रमाणन:

CE,ISO

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
क्रिम्पिंग कर्व्ड आर्क रूफ शीट रोल बनाने की मशीन स्वचालित
उत्पादन क्षमता:
10-15 मी / मिनट
रोलिंग मोटाई:
0.3-0.8 मिमी
नियंत्रण प्रणाली:
पीएलसी
प्रमुख विक्रय बिंदु:
ऊर्जा की बचत
खिला चौड़ाई:
1200 मिमी
शाफ्ट सामग्री:
45# स्टील बाहरी व्यास: 75 मिमी
कच्चा माल:
रंग स्टील शीट
प्रमुखता देना:

crimping roof sheet roll forming machine

,

plc roof sheet roll forming machine

,

plc controlled sheet roll forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
मुख्य मशीन नग्न है, कंप्यूटर नियंत्रण बॉक्स प्लास्टिक से पैक किया गया है।
प्रसव के समय
30 दिन
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन, एल/सी,
आपूर्ति की क्षमता
प्रति माह 30 सेट
संबंधित उत्पाद

6m Automatic Stacker for Roof Sheet Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine ऑनलाइन वीडियो

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows ऑनलाइन वीडियो

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 4meter/Min Glazed Tile Roll Forming Machine With 18 Rows ऑनलाइन वीडियो

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

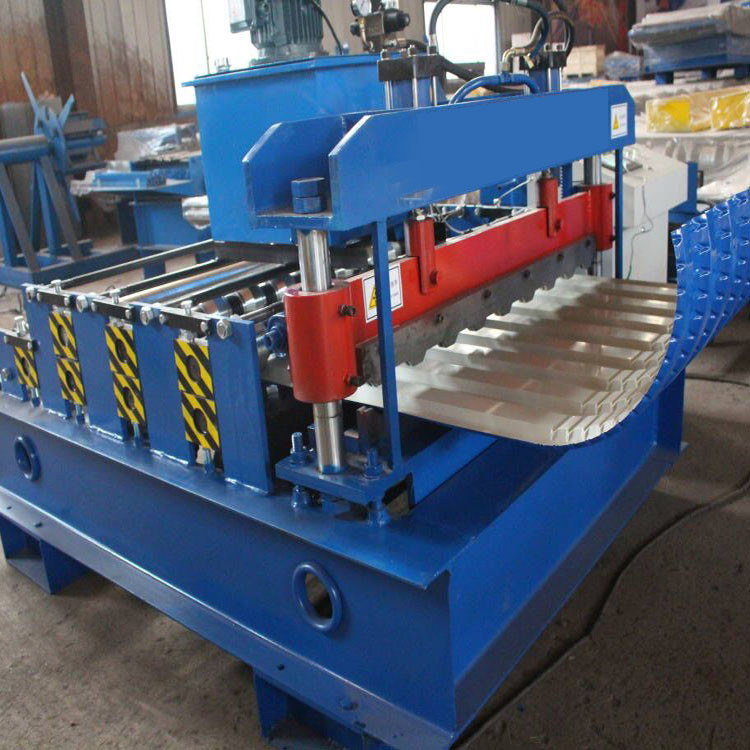

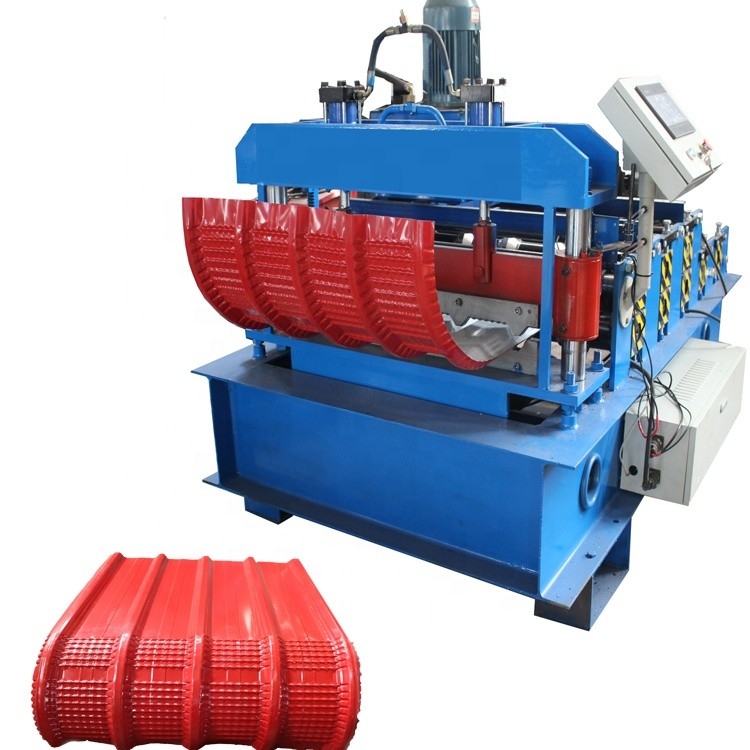

Crimping Curved Arch Roof Sheet Roll Forming Machine Automatic



 The curved panel is used for the door and wall, when raining, the rain drops to the front of your door, and there is some water. It is not convenient to come in or out. Now with the curved panel, the rain is guided away from your door.It will be cleaner.
It works same for the wall. With the curved panel, the rain will not leak into your room, also keeps away from the wall panel. Thus the wall panel will endure for longer years.



Specification

Name Crimping Curved Arch Roof Sheet Roll Forming Machine
Suitable Material Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range 0.3-0.8 mm
Coil Width Range 914, 1000, 1220 or 1250 mm; According to actual drawing
Electric Power 380V, 50 Hz, 3 phase or according to your need
Dimension About 2.6*1.6*1.2m(L*W*H), as per the drawing
Cutting Automatically stop and cutting when it comes to the set length
Length of the Sheet

You can set the length according to your need.

It is controlled by PLC.

length accuracy: ±1mm.



Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.





Crimping Curved Arch Plc Roof Sheet Roll Forming Machine Automatic 0
