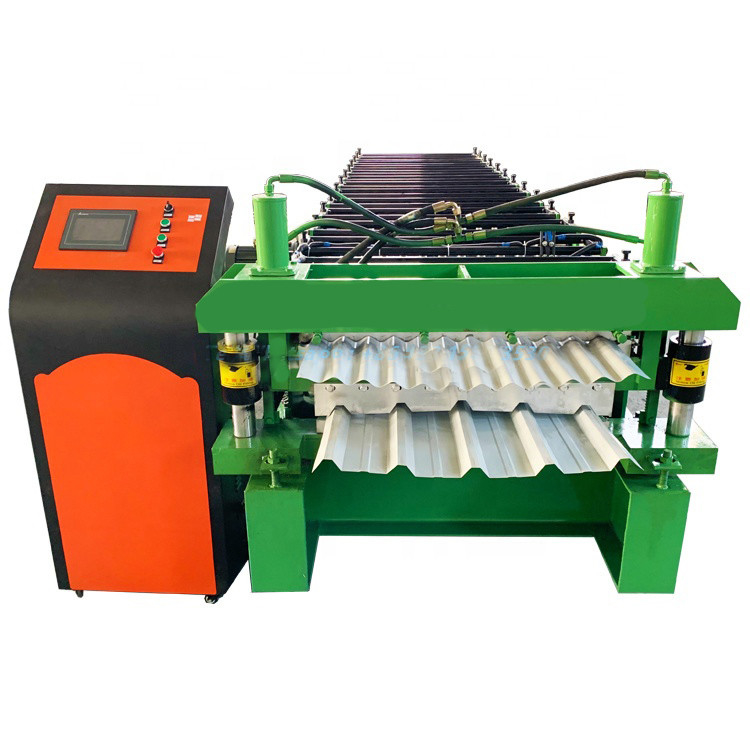

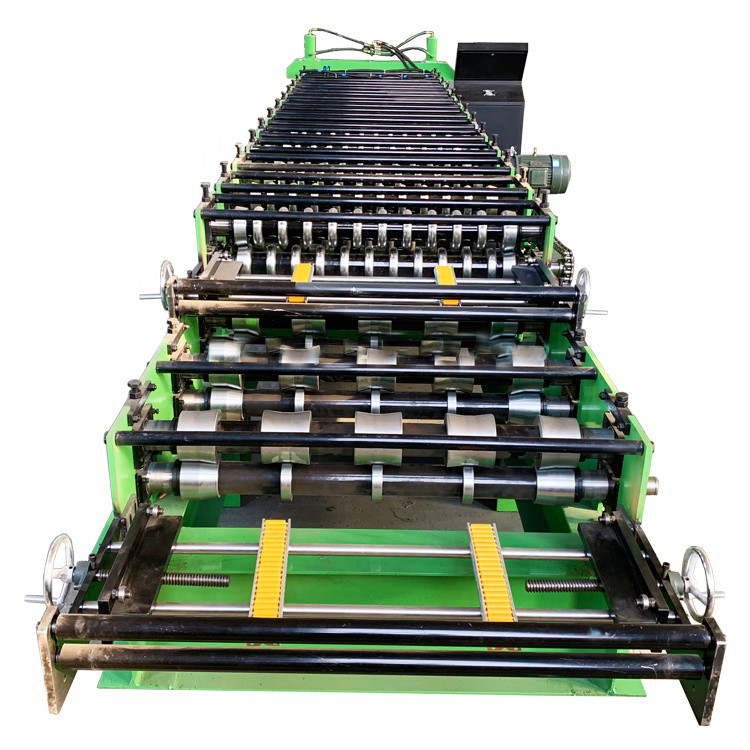

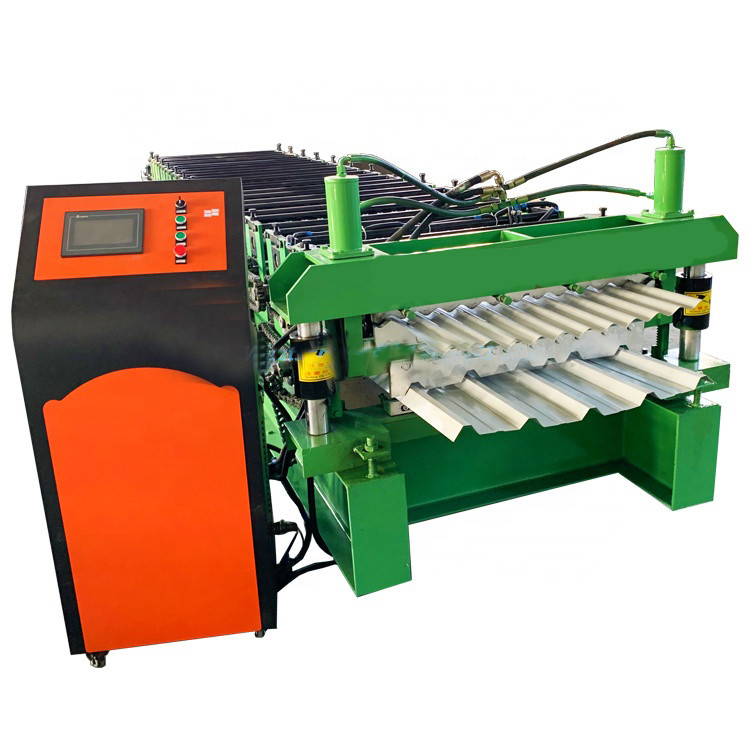

Double Layer Trapezoidal Metal Roofing Machine Versatile
The double layer rollformer produces a dual profile on the same machine, sharing the same de-coiler, drive trains and motors, but using different rolls and different cut offs.
The double layer machine is particularly useful where operating or storage space is a problem. Double layer roofing panel roll forming machine can make two different roof design one machine , you can choose different roof collocations, IBR profile and Corrugated profile,Step tile and trapezoidal,Step tile and corrugated or Glazed tile and IBR ,Glazed and Corrugated profile.
Detailed Parameters:
Metal material thickness | 0.3 - 0.7mm |
Metal material width | 925mm or as client require |
Roller Stage | 13+15 rows |
Roller Material | 45# forging steel with chromium plate |
Diameter of shaft | Φ70mm |
Material of cutting blade | Cr12Mov, Quenched treatment 58℃-60℃ |
Main Structure of the Machine | 350H beams |
Side Panel of Machine | 16mm |
Chain | 1.2 inch |
Motor power | 5.5 kw |
Hydraulic pump power | 4 kw |
Productivity | 8-12 meters per minute |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
