उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
मॉडल संख्या:
840/850
वीडियो
वीडियो
वीडियो

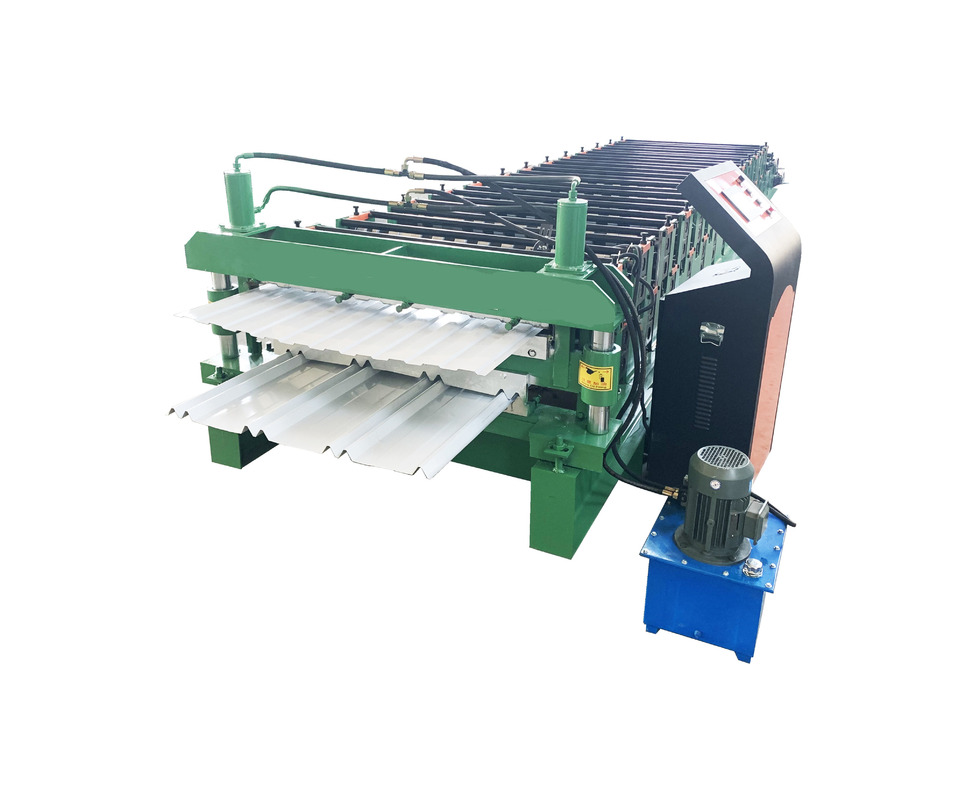

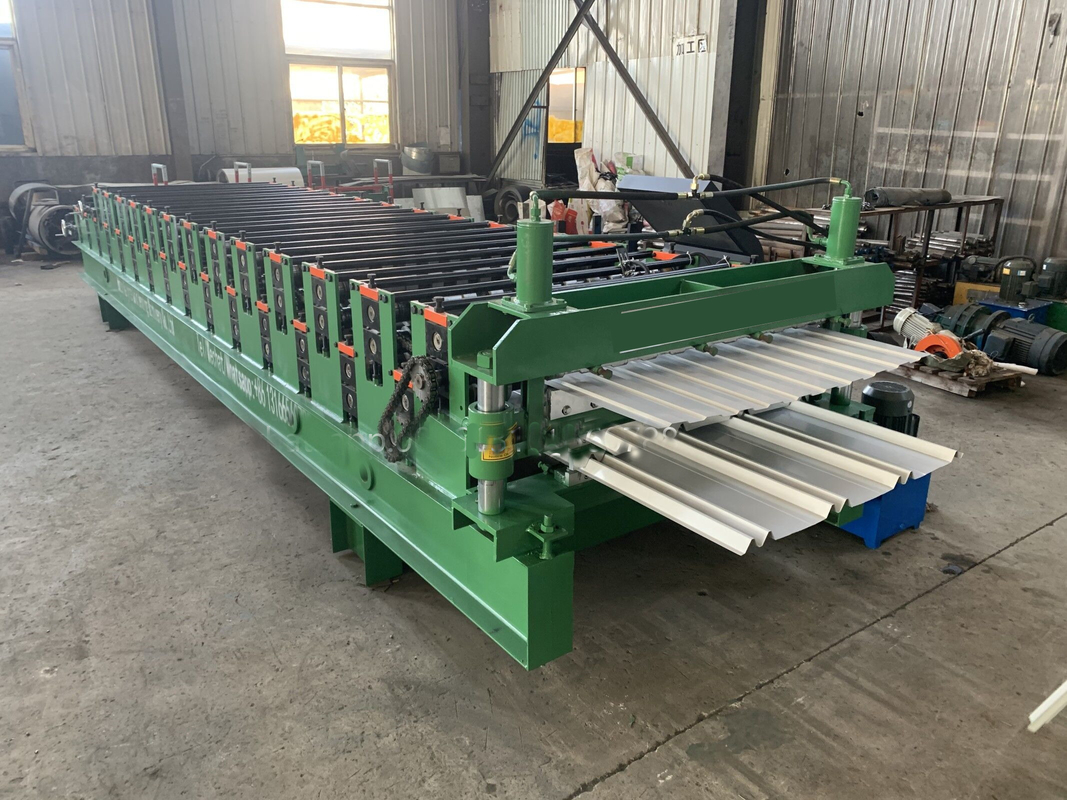

IBR And Corrugated Double Layer Roll Forming Machine For Sri Lanka
Double Layer Aluminium Roofing Sheet Roll Forming Machine can produce two different shape of metal roof tile. In this way, it can save cost and space . If customer's capital and space of workshop are limited, this machine will be a best choose . This machine suitable both Aluminium and colour steel, as to the aluminium is very soft, it need high accuracy of rollers and cutter to make sure the finished roof tile perfect..
Detailed Parameters:
| No. | Type | Specification | |
|
1 |
Raw Material |
Type | Colored steel plate, galvanized board |
| Feeding width | According to requirement | ||
| Thickness | 0.3-0.8mm | ||
|
2 |
Main body |
Roller station | Up layer 12 steps , down layer 16 steps (According to the profile) |
| Diameter of shaft | 75mm | ||
| Shaft material | 45# Steel | ||
| Roller material | 45# Steel | ||
| Frame | 350H steel | ||
| Frame thickenss | 18 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8~12 m/min | ||
| Size (L*W*H) | About 9600*1550*1510mm | ||
| Weight | About 9 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12 | ||
| 3 | Power | Motor power | 5.5 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain | ||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
