Cold Metal Shaping 0.3mm Downspout Roll Forming Machine

plc downspout roll forming machine

0.3mm downspout roll forming machine

cold metal shaping downspout machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

CANGZHOU FMS

प्रमाणन:

ISO CE

मॉडल संख्या:

नाली

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
​डाउनस्पाउट्स कोल्ड रोल बनाने वाली मशीन मेटल शेपिंग
कच्चा माल:
गैलवेल्यूम, गैल्वेनाइज्ड, पीपीजीआई, एल्युमीनियम, कॉपर
वोल्टेज:
380V 50Hz 3phases
DIMENSIONS:
7.4*1.15*1.51मी
नियंत्रण प्रणाली:
पीएलसी
काटने की प्लेट की सामग्री:
CR12
प्रसंस्करण परिशुद्धता:
1.00 मिमी के भीतर
द्रव्य का गाढ़ापन:
0.3-0.8 मिमी
प्रमुखता देना:

plc downspout roll forming machine

,

0.3mm downspout roll forming machine

,

cold metal shaping downspout machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
20' एफएलसी
प्रसव के समय
30 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद
हमसे संपर्क करें
अब संपर्क करें
उत्पाद वर्णन

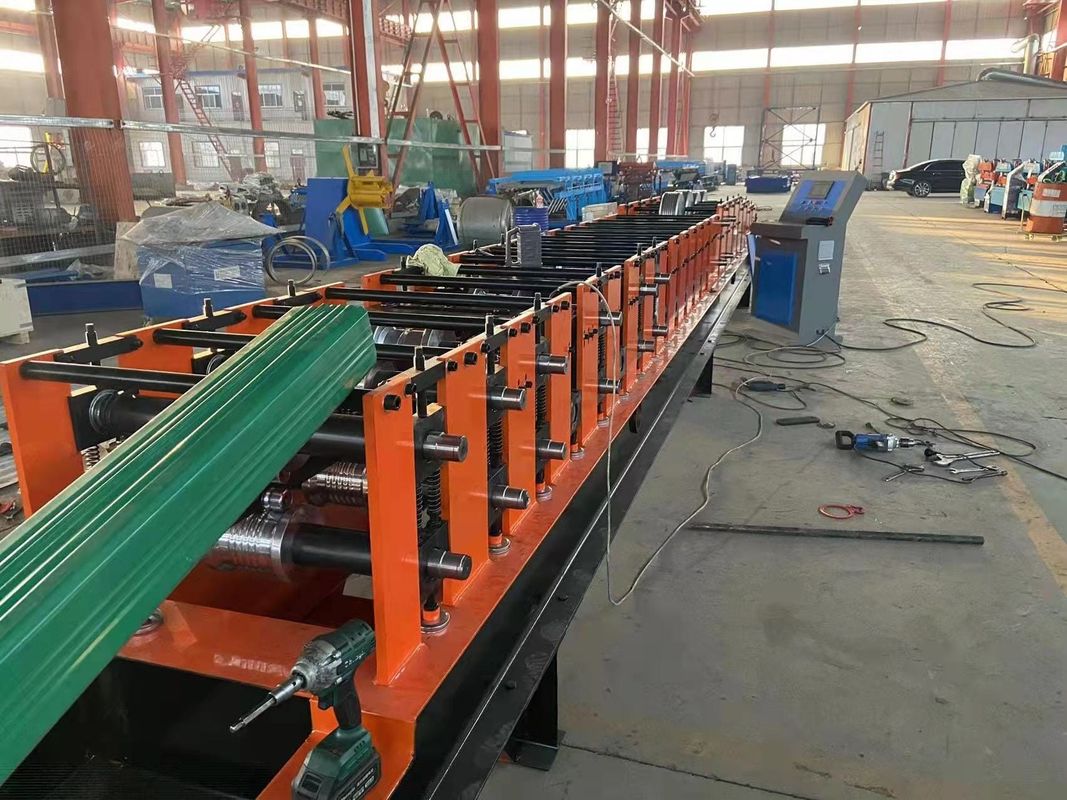

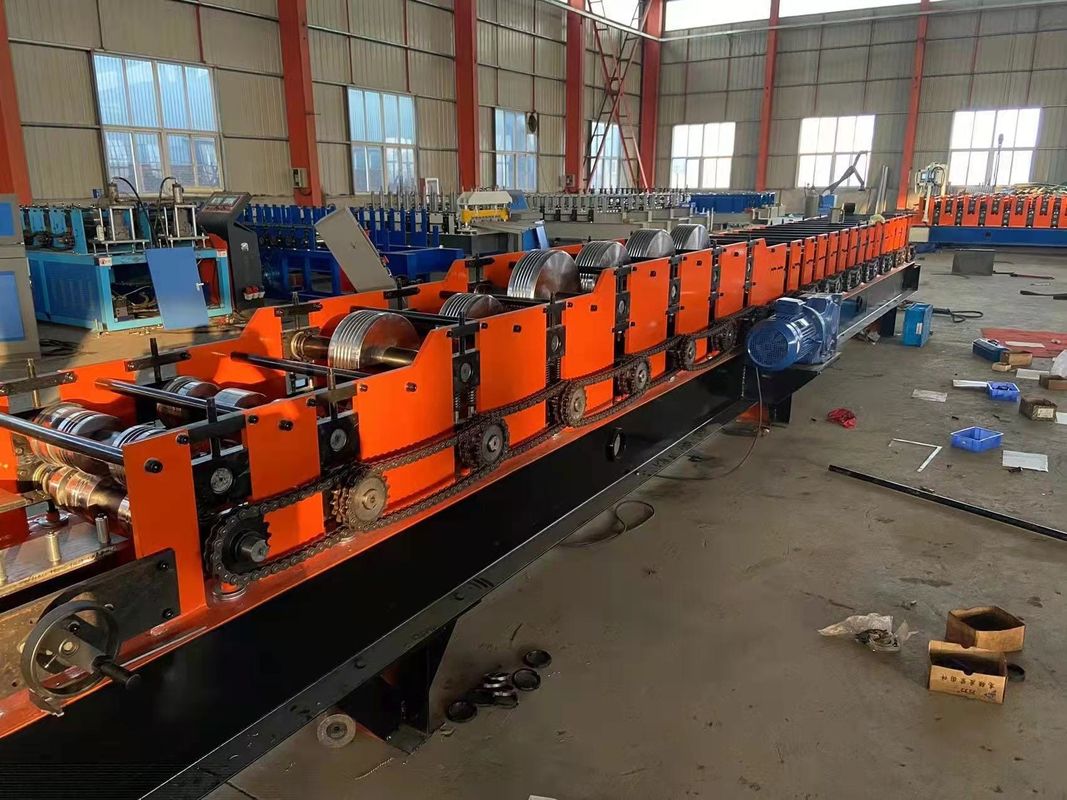

​Downspouts cold roll forming Machine Metal Shaping



The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

This equipment has high output efficiency. The gutter board produced by it has a flat surface, no scratches, easy installation, light volume, and low site requirements. It is one of the best-selling versions in the US market.



Specification

No. Downspouts cold roll forming Machine Metal Shaping
1 Suitable to process Color steel plate
2 Width of the plate 330mm
3 Rollers 15rows
4 Dimensions 7400*1150*1510mm
5 Power 5.5+4kw
6 Rolling material high grade 45# steel(plated chrome on surface)
6 Thickness of the plate 0.3-0.6mm
7 Productivity 8-10m/min
8 Diameter of the roller Φ66mm
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control



Application



This produc has the advantages of easy installation, short construction period, beautiful appearance, light weight but high strength.so it's widely used in roofs and walls of factories, warehouses, garages, stadiums, exhibition centers, cinemas, theaters, etc.





Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms and delivery



40% in advance as down payment

60% is paid before the shipment is processed

The Delivery Time: 30 days after the down payment is received.
