Hydraulic Crimping Color Gl Steel Roof Sheet Making Machine Curving Vertical

Hydraulic Crimping Color Gl Steel Roof Sheet Making Machine Curving Vertical

gl steel roof sheet making machine

crimping steel roof sheet making machine

gl metal roofing sheet forming machine

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

CANGZHOU WILLING

प्रमाणन:

ISO CE

मॉडल संख्या:

घुमावदार मेहराबदार छत

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
वर्टिकल हाइड्रोलिक क्रिम्पिंग कलर स्टील रूफ कर्विंग मशीन
कच्चा माल:
पीपीजीएल, जीएल, पीपीजीआई, जीआई,
आयाम(एल*डब्ल्यू*एच):
2050*1500*1300
रोलिंग मोटाई:
0.3-0.8 मिमी
शाफ्ट सामग्री:
45# स्टील बाहरी व्यास: 70 मिमी
मुख्य फ्रेम:
350 एच स्टील
नियंत्रण प्रणाली:
पीएलसी
वोल्टेज:
220V/380V/440V
प्रमुखता देना:

gl steel roof sheet making machine

,

crimping steel roof sheet making machine

,

gl metal roofing sheet forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
20' एफएलसी
प्रसव के समय
30 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 40 सेट
संबंधित उत्पाद
अच्छा दाम Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line ऑनलाइन वीडियो

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine ऑनलाइन वीडियो

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw ऑनलाइन वीडियो

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine ऑनलाइन वीडियो

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

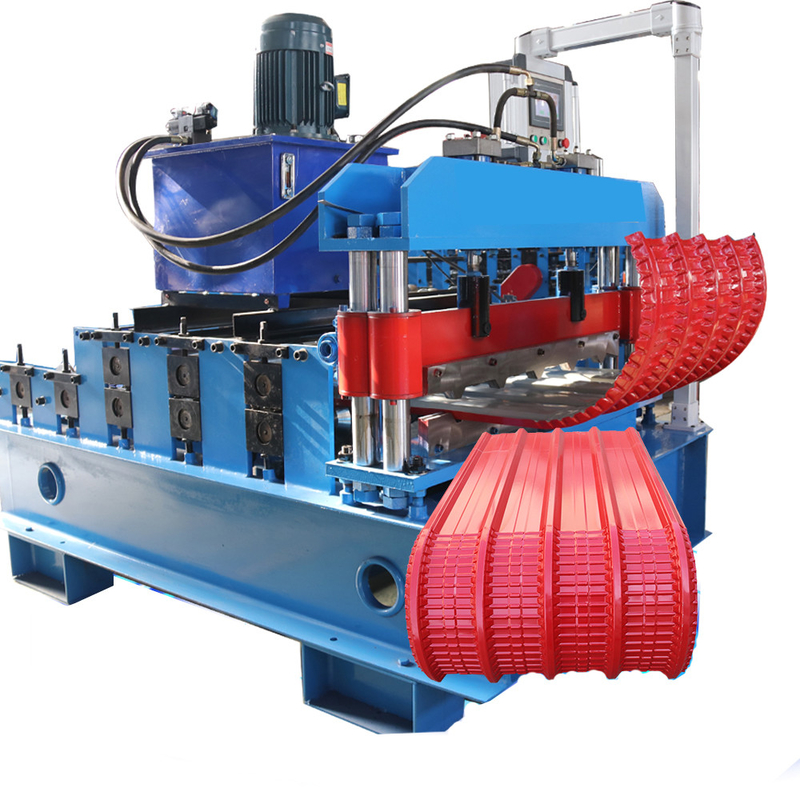

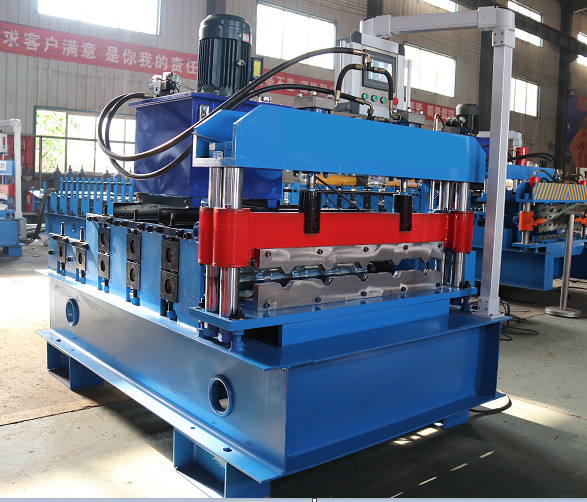

Vertical Hydraulic Crimping Color Steel Roof Curving Machine


This stand seam roof curving machine is for curving the stand seam roof into concave and convex shape, 3 steps roll forming and choose gear transmission. It can both curve aluminum sheet and metal steel shee, this type of standidng roof can build more beautiful steel house and big sport hall. So small design, you can take this machine for your steel building project anywhere.

Specification


Product name
Color Steel Roof Curving Machine
Size
1500*850*2000mm
Weight
1200KGS
Voltage
380V/50HZ/3PH
Motor Power
4KW
Hydraulic Power
3KW
Motor for changing models Power
0.37KW
Curved Thickness for Aluminum
0.8-1.2mm
Curved Thickness for Steel
0.7-1.0mm
Width of straight roofing to curve
300mm to 600mm
Min.Width of Tapered Roofing to Curved
250mm
Max.Width of Tapered Roofing to Curved
500mm
Working Speed
10-16m/min



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
