उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU FMS
प्रमाणन:
ISO CE
वीडियो

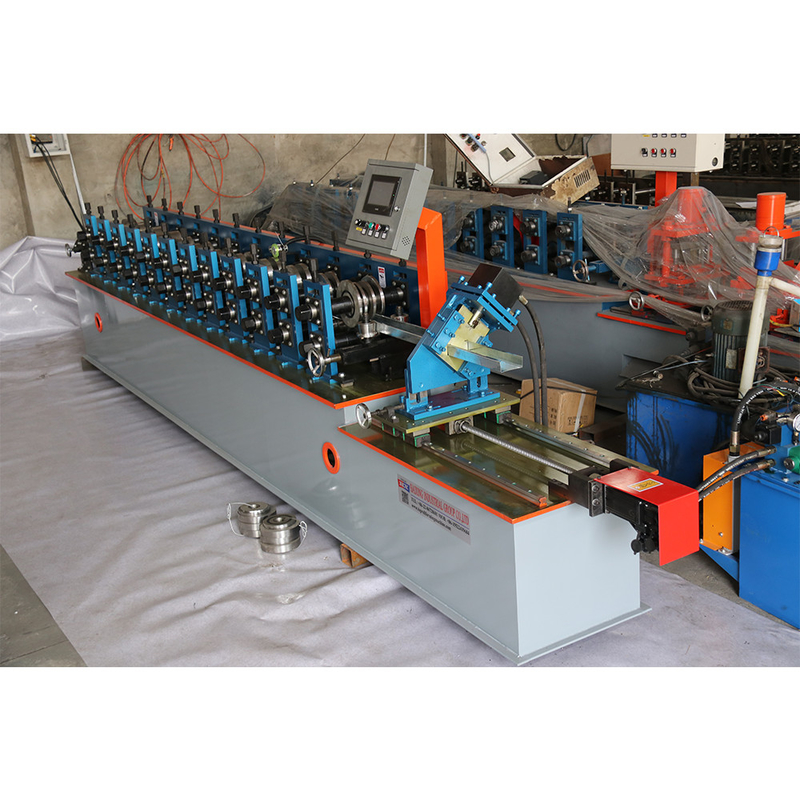

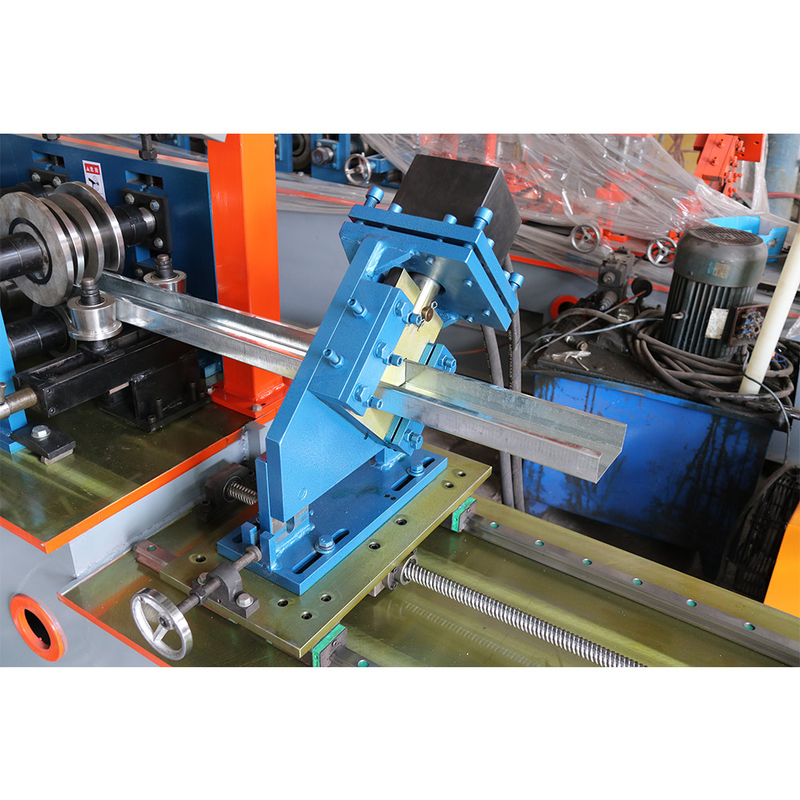

Ceiling C U Automatic Keel Making Machine For Building Material
This product Cd Ud Light Steel Ceiling Keel Machine for Beam and Frame is mainly used to produce light steel keel required for hotels, terminals, bus stations, stations, playgrounds, shopping malls, factories, office buildings, old building renovation, interior decoration, roofing and other places. This product has strong durability, is not easy to be damaged, and the speed of production is fast, which greatly saves time and labor costs. All our machine include a range of standard equipment that ensures the safety, functionality and usability of the machine are unsurpassed.
Specification
| No. | Item | Description |
| 1 | Core Components | Motor, Engine, PLC |
| 2 | Shaft material | 45#steel hardening and tempering |
| 3 | Cutting Mode | Hydraulic Cutting |
| 4 | Production Capacity | 12-20/min |
| 5 |
Cutting length tolerance |
±1mm |
| 6 | Weight | 3.5T |
| 7 |
Main frame |
350H Bemas |
| 8 |
Suitable material |
Galvanizedsteel Coil |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 50HZ, 3 PHASES |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Feeding width |
according to sample panel size |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
