उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
वीडियो
वीडियो
वीडियो
वीडियो

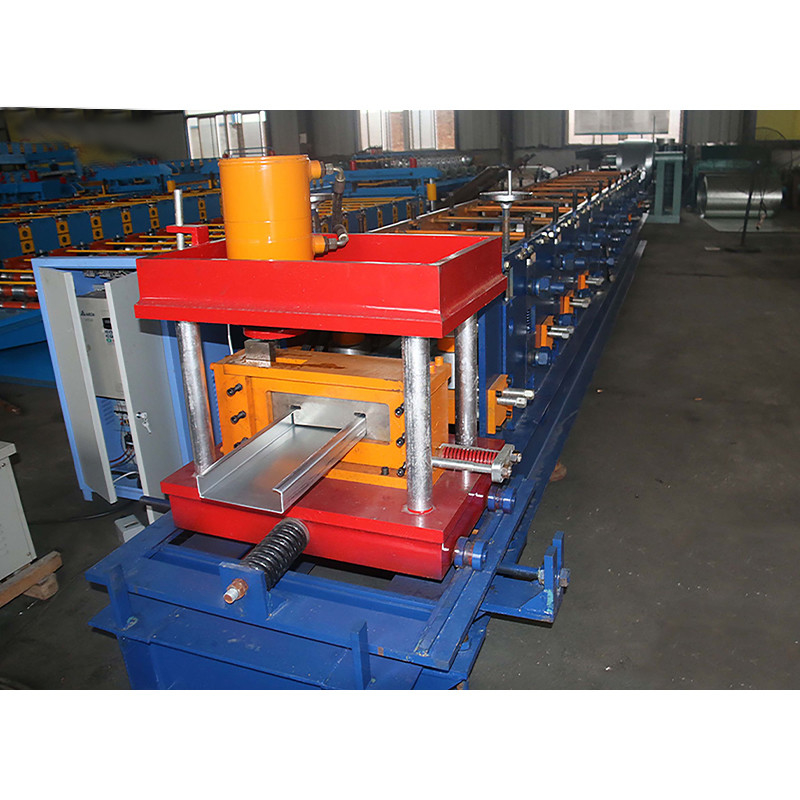

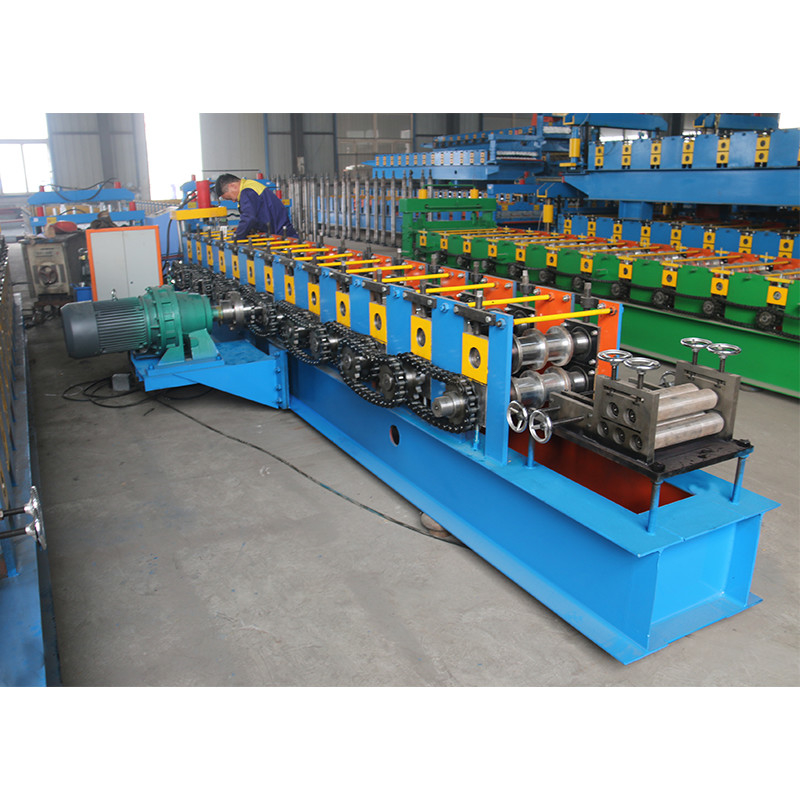

C Shape Purlin Roll Forming Machine with PLC System
C Purlins Roll Forming Machine can produce different size of the C purlin, when it produce different size of C purlin, it need need change the blade and rollers, just need adjust the rollers and cutting device. In this way to meet customer's different requirements. The structural C and Z purlins are used in industrial buildings, garages, verandas, and carports; or anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.
specifications
|
Main structure of the machine
|
400 H steel
|
|
Side panel of machine
|
20mm( A3 steel)
|
|
Rollers
|
18rollers+ leveling shaft+straightening shaft
|
|
Diameter of the shaft
|
Φ80mm
|
|
Rolling materials
|
GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching)
|
|
Diameter of the shaft
|
Φ80mm
|
|
Shaft material
|
40Cr Modulation of heat treatment after polishing hard chromium plating
|
|
Operating Mode
|
Automatic CZ Free Replacement By Motor Drive
|
|
Main Motor size
|
Hydraulic Motor pump station 25Kw
|
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
