उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU FMS
प्रमाणन:
ISO CE
मॉडल संख्या:
डबल डेक ट्रेपेज़ॉइड / नालीदार
वीडियो
वीडियो
वीडियो

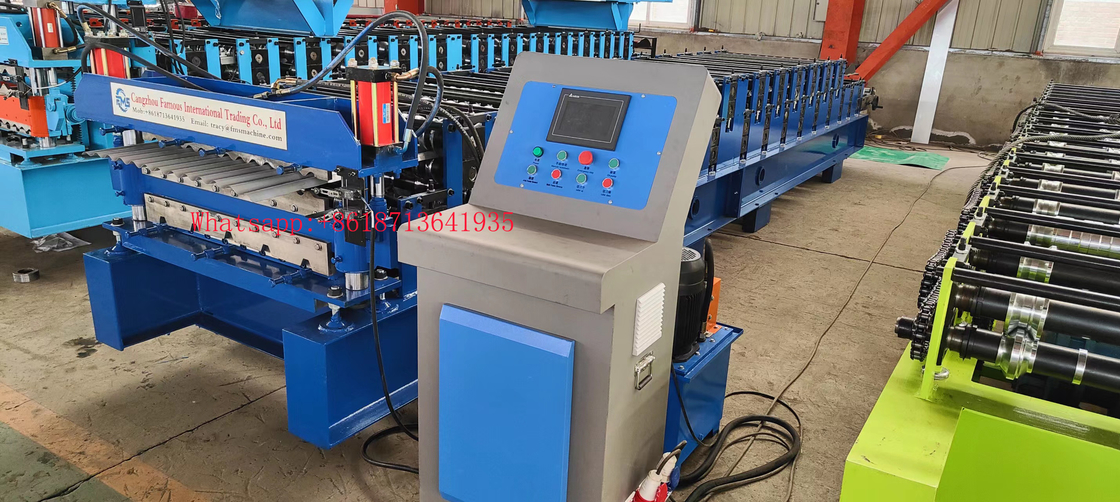

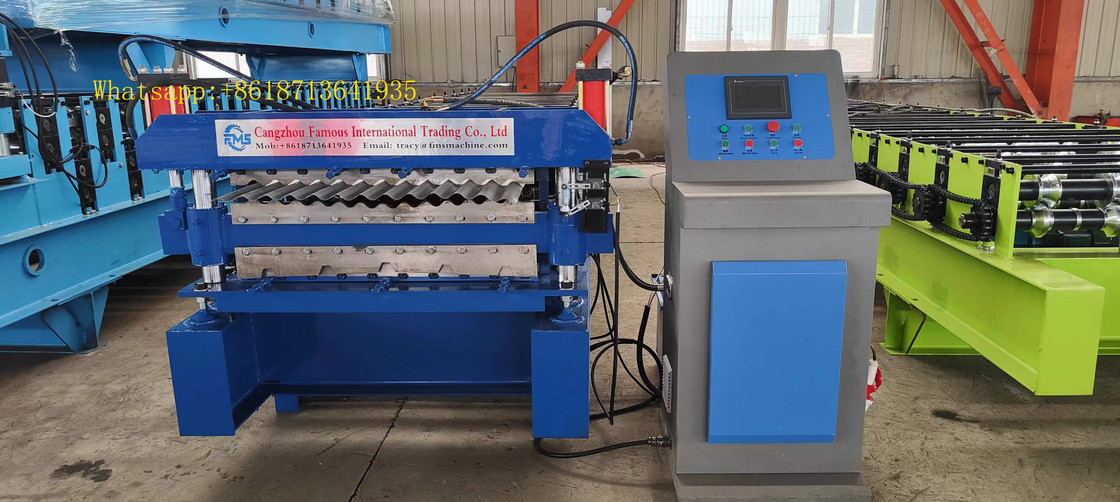

Roofing Glazed Tile Roll Forming Machine Double Layer Plc Control
Corrugated Iron roof making machine double layer roll forming machine roof tile making machine Processing technique and deployment
corrugated Iron roof making machine double layer roll forming machine roof tile making machine by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.
Specification
| No. | Main Parameter of Double Layer Glazed Tile Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1250mm |
| 3 | Rollers |
Up layer:10 rows Down layer:15 rows |
| 4 | Dimensions | 9500*1550*1910mm |
| 5 | Power | 4+4kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity |
Up layer:4m/min Down layer:15-20m/min |
| 8 | Material of the cutting blade | Cr12 |
| 9 | Diameter of the roller | Φ70mm |
| 10 | Weight | About 6.9T |
| 11 | Voltage | 380V 50Hz 3phases |
| 15 | Control system | PLC control |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
