उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
वीडियो

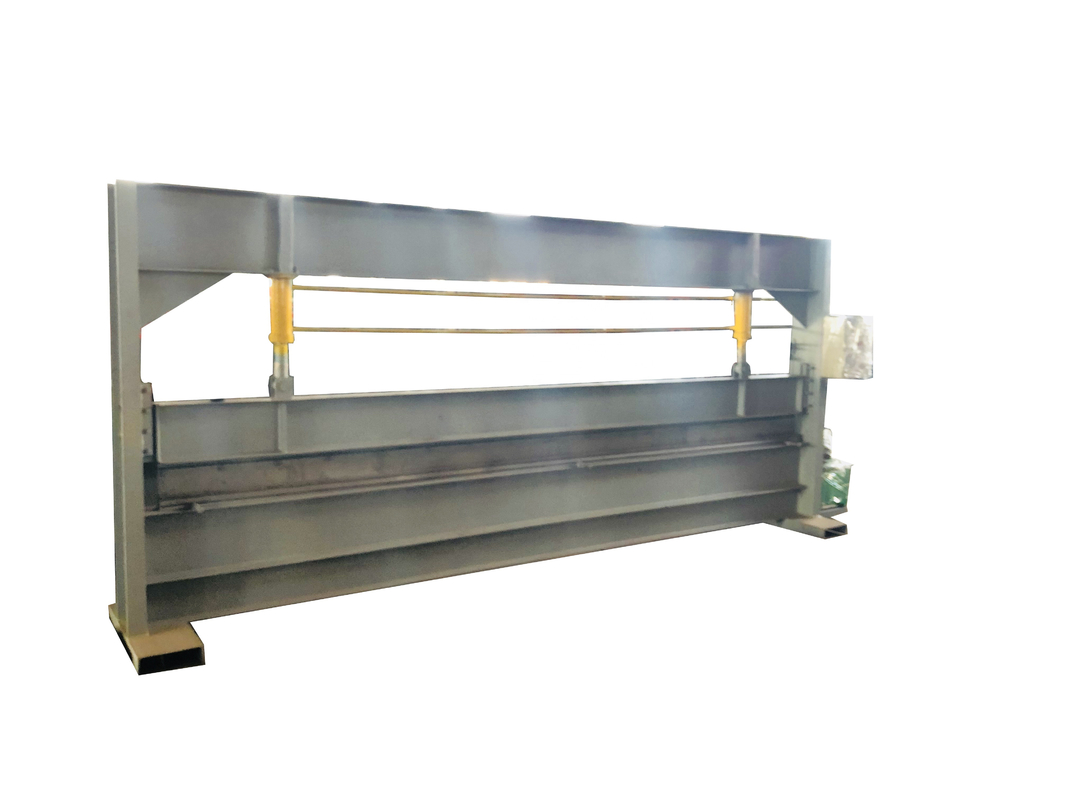

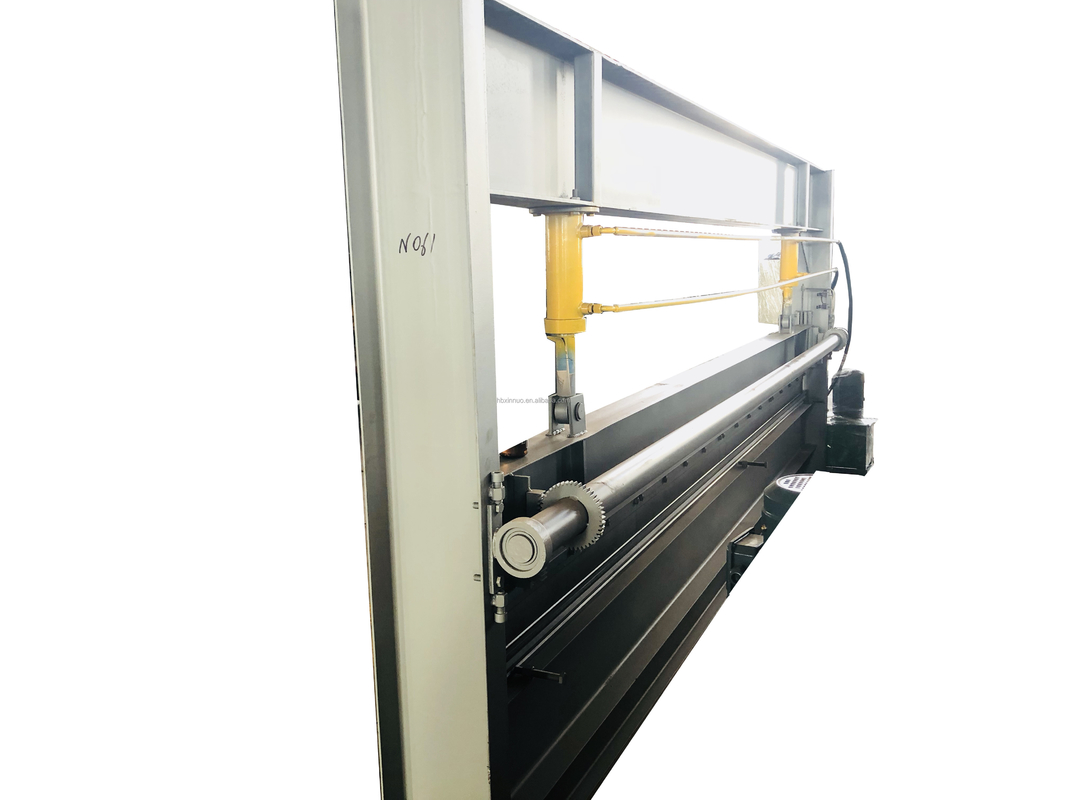

1. Special numeric-control system is fitted with mainframe of the bending machine.
2. Multi-work-step programming function is able to achieve an automatic operation and continuous positioning of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.
3. The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters.
4. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Equipment Detailed Parameters:
| No. | Main parameter | |
| 1 | Suitable to process | color steel plate, steel plate, galvanized sheet and so an. |
| 2 | Raw material thickness | 0.2-1.0mm |
| 3 | Raw material width | 6000mm |
| 4 | Motor power | 3KW |
| 5 | Size | 6200*1700*2200 |
| 6 | Weight | about 2.3Tons |
| 7 | Warranty of core components | 1 Year |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Core Components | Motor, PLC |
| 10 | roller material | 45#steel |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
