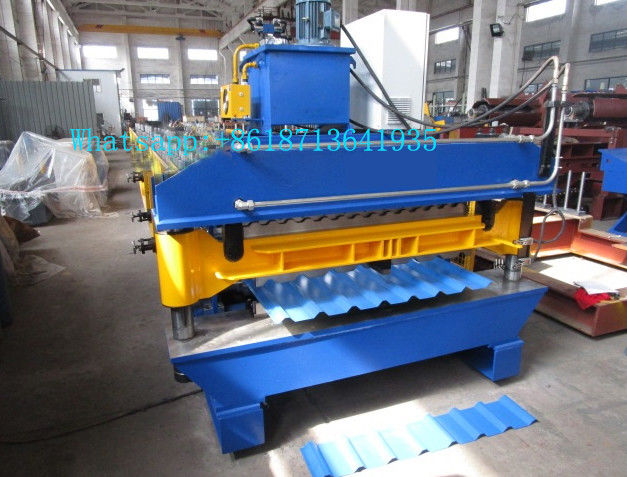

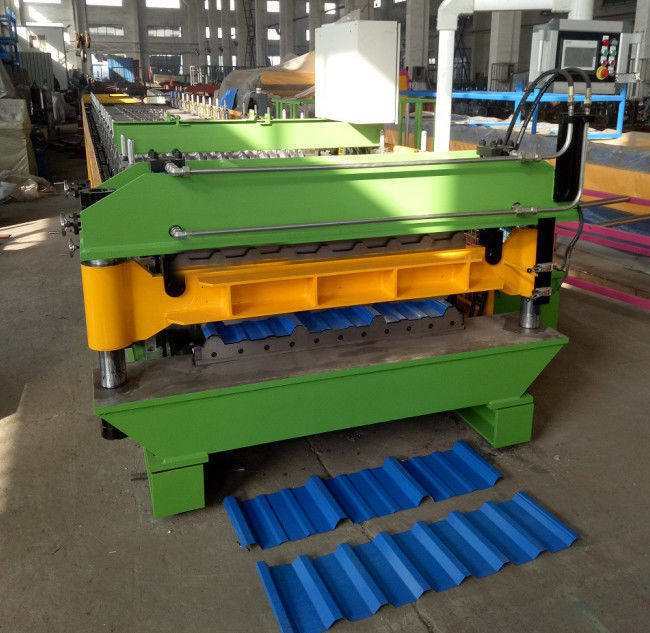

Mild Steel Double Layer Roll Forming Machine For Industrial
Double layer forming machines for roofing and cladding sheets , with the greatest advantage is one double layer machine can make two design sheets.
usually, one layer forming machine or single layer forming machine only make one roofing design.
Therefore, if customer has limited install space and required to make two roofing designs, double deck machine is best choose.
double layer machine have additional set rollers and cut blade for another roofing design. that is , two sets rollers share with one machine base, motor , hydraulic station, plc controller and cut frame.
Equipment Detailed Parameters
| Weight | About 12000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Suitable Raw Material | |
|---|---|
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 1220mm |
| Yield Strength | 2350Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
