Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

wall panel roll forming machine 30m/min

touchscreen wall panel roll forming machine

touchscreen cold roll former

उत्पत्ति के प्लेस:

चीन (महाद्वीप

ब्रांड नाम:

FMS

प्रमाणन:

ISO CE

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
धातु छत दीवार पैनल मशीन निर्माता
मुख्य घटक:
मोटर, इंजन, पीएलसी
नियंत्रण सिस्टमपीएलसीएम:
6000 किग्रा
उत्पादन क्षमता:
30 मीटर/मिनट
वोल्टेज:
380V
मुख्य घटकों की वारंटी:
1 वर्ष
टाइल प्रकार:
इस्पात
बाद में:
वीडियो तकनीकी सहायता
प्रमुखता देना:

wall panel roll forming machine 30m/min

,

touchscreen wall panel roll forming machine

,

touchscreen cold roll former

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
40' एफएलसी
प्रसव के समय
30 कार्य दिवस
भुगतान शर्तें
एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता
प्रति माह 20 सेट
संबंधित उत्पाद
अच्छा दाम 2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style ऑनलाइन वीडियो

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic ऑनलाइन वीडियो

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases ऑनलाइन वीडियो

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut ऑनलाइन वीडियो

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
86-317-2016816
अब संपर्क करें
उत्पाद वर्णन

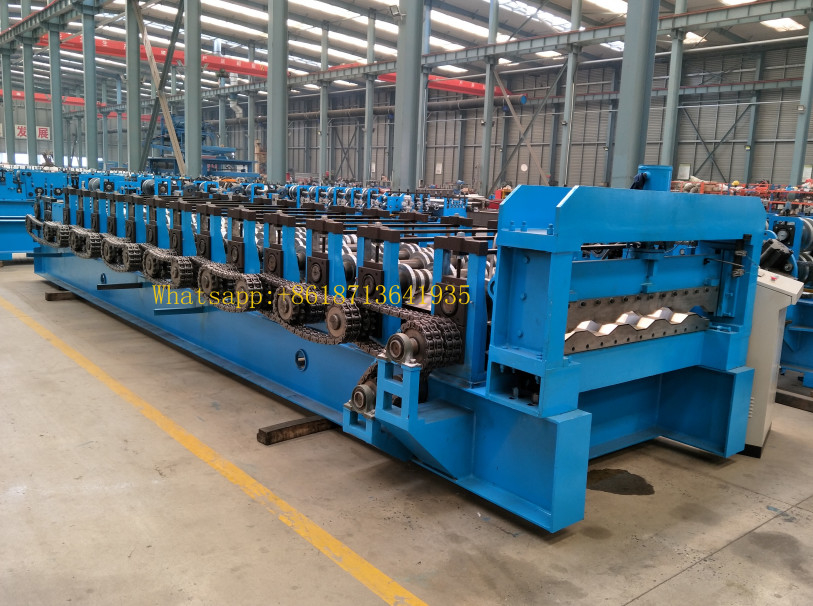

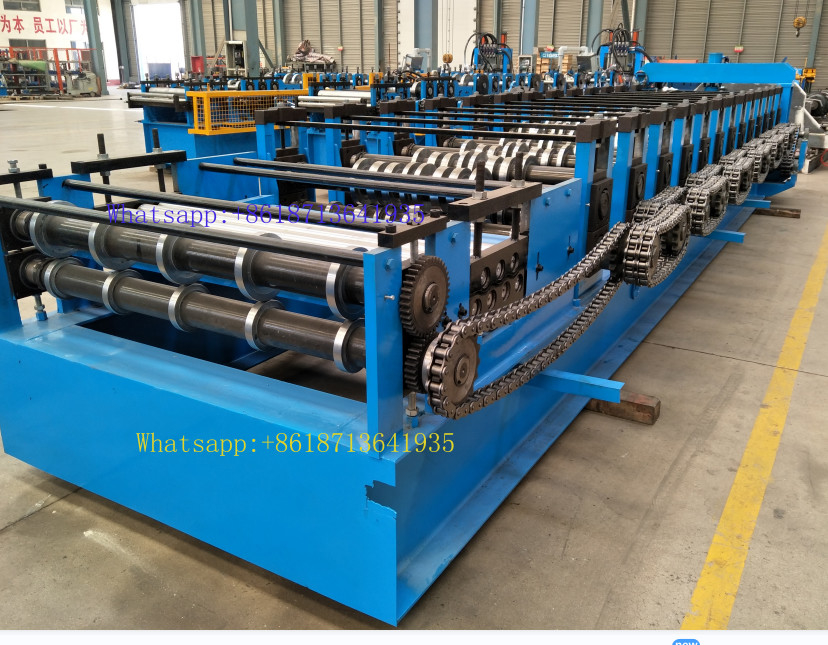

Metal Roof Wall Panel Machine Manufacturers



Metal roof Wall Panel roll forming machine is to use color coating steel plate, the roll forming into various wave type roof sheets, as been widely applied for industrial and civil buildings, warehouses, large-span steel structure roofing, wall and external decoration of the house, etc., Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.



Specification



Model 840/900
Rod 18
Production and processing speed 30 m/min
Processing thickness color steel 3mm
Axle diameter of roll Ø100
Frame 300H steel welding
Medium plate 16mm
Transmission mode 1 inch sprocket chain drive
Shaft material 45# quenching and finishing machining
Wheel material 45# finishing car processing, high frequency quenching, hard chrome plating
Main engine power 4KW pure copper motor
Oil pump motor 7.5KW
Control system touch screen setting
Shear hydraulic mold shear
Cutter plate Cr12 blade



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
