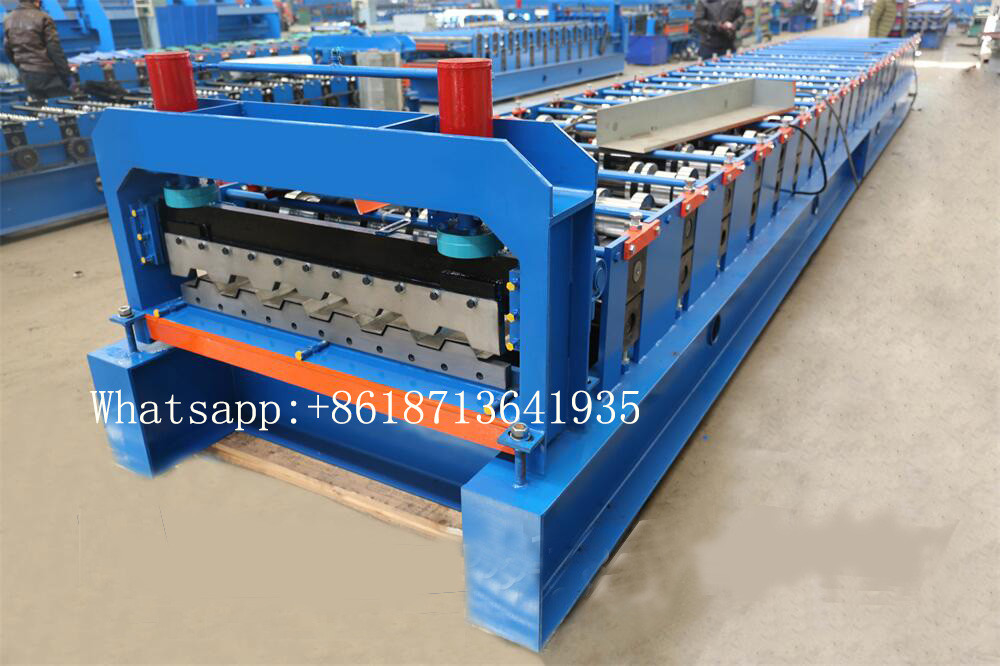

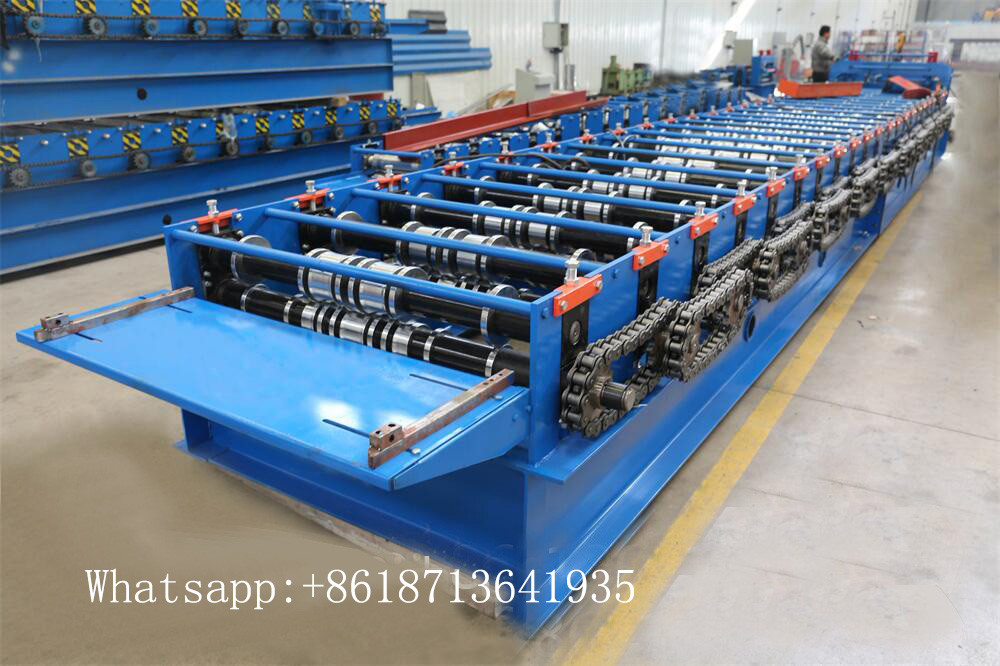

Car Carriage Panel Cold Roll Forming Machine Box Panel Making Machine
cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate,and help to enhance the image of the all project.
Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
Specification
|
No.
|
main parameter of car panel roll forming machine
|
||
|
1
|
Suitable to process
|
Color steel plate
|
|
|
2
|
Width of the plate
|
1220mm
|
|
|
3
|
Rollers
|
14-18rows
|
|
|
4
|
Dimensions
|
11.6*1.6*1.5m
|
|
|
5
|
Power
|
7.5+4kw
|
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
|
7
|
Productivity
|
8-12m/min
|
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
|
9
|
Weight
|
About 6.8 T
|
|
|
10
|
Voltage
|
380V 50Hz 3phases
|
|
|
11
|
Rolling material
|
Carbon Steel 45#
|
|
|
12
|
Material of the cutting plate
|
Cr12
|
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
|
14
|
Control system
|
PLC control
|
|
|
15
|
Side panel of machine
|
14mm
|
|
|
16
|
Main structure of the machine
|
300 H steel
|
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
