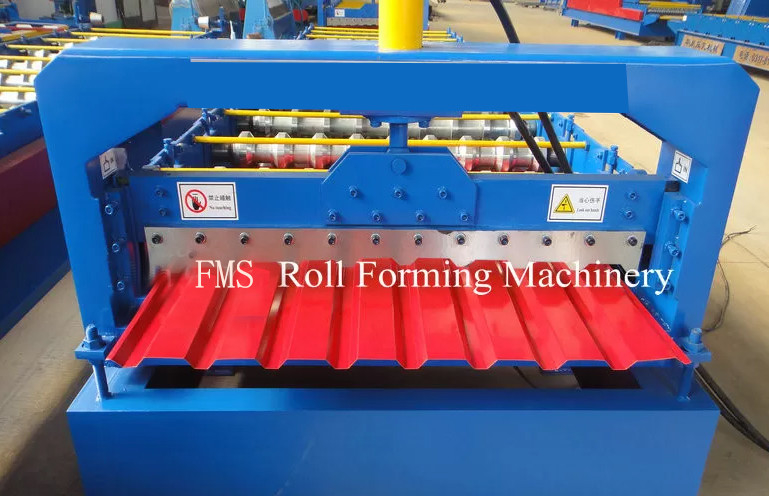

Automatic Wall Panel Cold Roll Forming Machine Roof Sheet Making Machine
As the original manufacturer of the tile press, we can produce most of the products according to your requirements

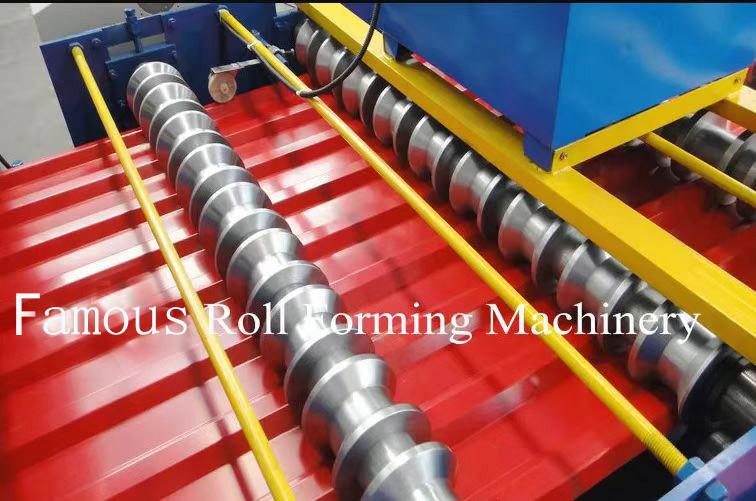

1.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing. 2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.
This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.
Specification
| No. | Main parameter of Wall Panel Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1250 mm |
| 3 | Rollers | 10rows |
| 4 | Dimensions | 5.8*1.6*1.5m |
| 5 | Power | 4+4kw |
| 6 | Rolling material | 45# steel(plated chrome on surface) |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 8-10m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Hydraulic | 40# |
| 13 | Control system | PLC control |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
