उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE, ISO, TUV
मॉडल संख्या:
एफएमएस-24.3-262.5-1050
वीडियो
वीडियो
वीडियो

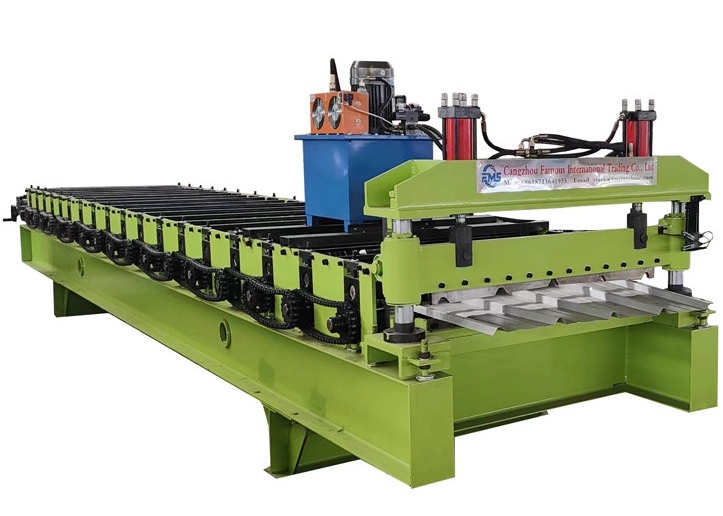

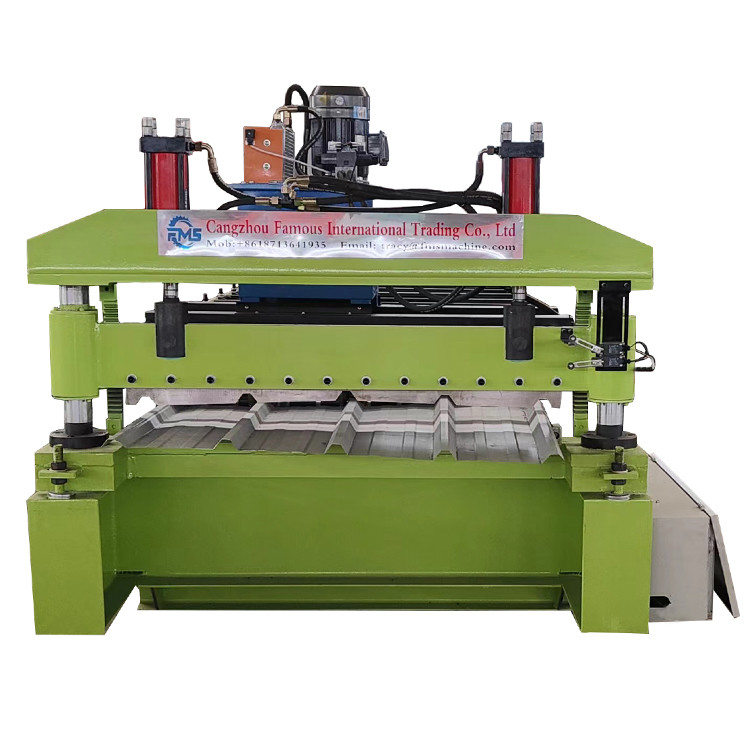

Trapezoidal Metal Roof Tile Roll Forming Machine
The trapezoidal roll forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The trapezoidal roll forming machine has the following characteristics:
1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.
Equipment Detailed Parameters
| Weight | About 5000kgs |
| Size | About 8m x 1.2m x 1.3m (length x width x height) |
| Suitable Raw Material | |
|---|---|
| Material | pre-painted steel coil, galvanized steel coil, galvalume steel coil |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 0-15m/min |
| Forming rollers material | 45# steel with CNC machining and surface is being hard chrome |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | DELTA PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |

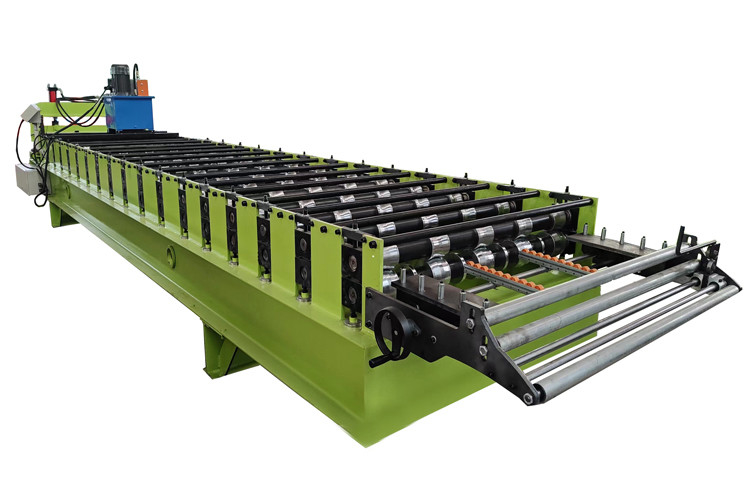

More machine pictures
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
The Delivery Time: 30 working days after the down payment is received.
