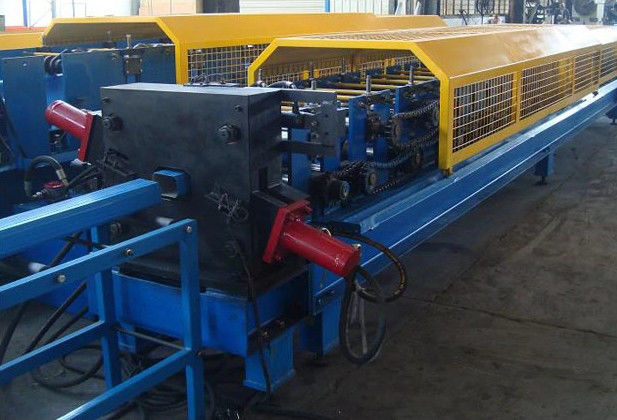

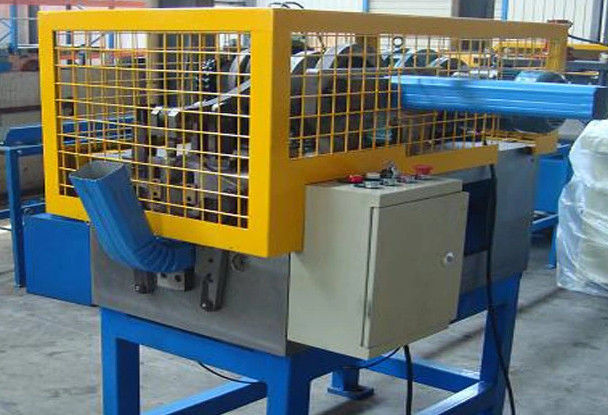

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine
| Item | Description |
| Material Spec | Aluminum, coated aluminum, galvanized and painted galvanized steel sheet |
| Thickness | 0.3 mm to 0.8mm |
| Main motor power | 7.5 kw |
| Hydraulic station power | 4 kw |
| Feeding width | 398mm |
| Cover width | Model# WLFM89-118 is 118mm |
| Coil stress | Q235 Mpa (33KSI); maximum stress yield is Q345Mpa (50KSI) |
| Roll forming Speed | 10~12 m/min |
| Cutting Tolerance | ≤±2mm |
| Manual Uncoiler | Max. Capacity: 3000kgs |
| Manual Uncoiler | Roll-formed and length-set cutting |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
