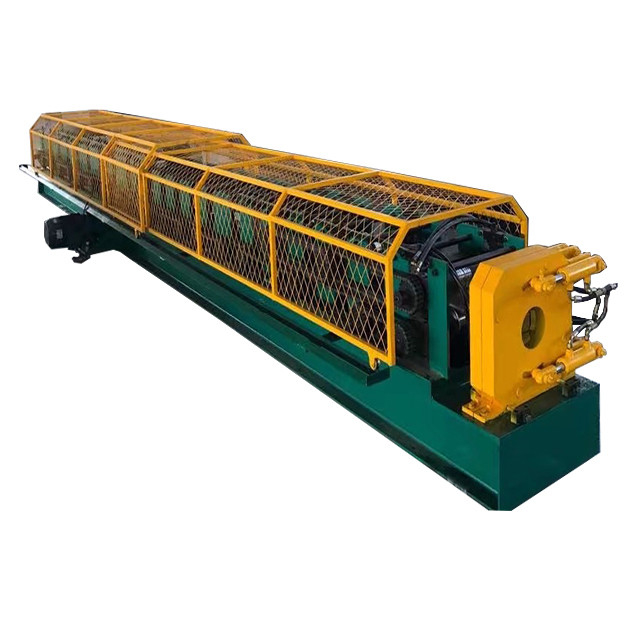

Circular Down Pipe Roll Forming Machine PLC Control System
The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.
steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable.
|
Forming stations:
|
About 24 stations or according to you profile drawings
|
|
Machine structure:
|
Wall panel structure
|
|
Material thickness
|
0.3-0.8mm
|
|
Forming speed
|
5-12m/min (EXCLUDING CUTTING STOP TIME)
|
|
Main motor power
|
7.5KW
|
|
Hydraulic station power
|
7.5KW
|
|
Rollers material :
|
45# forged steel, surface coated with chrome
|
|
Way of drive :
|
Chain drive
|
|
Raw material request:
|
Galvanized steel,PPGI, Aluminum
|
|

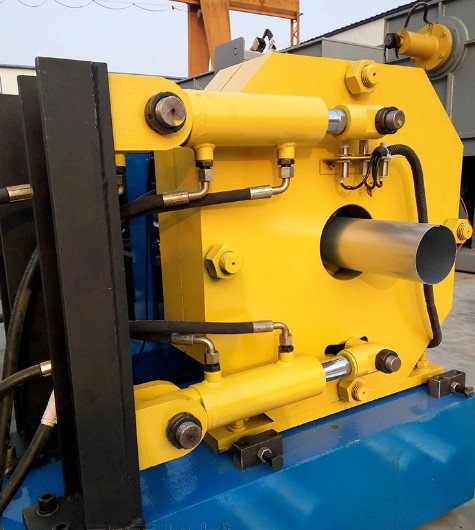

Cutting blade material
|
Cr12Mov quenching treatment
|
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
