उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU Famous
प्रमाणन:
ISO CE
मॉडल संख्या:
downspout

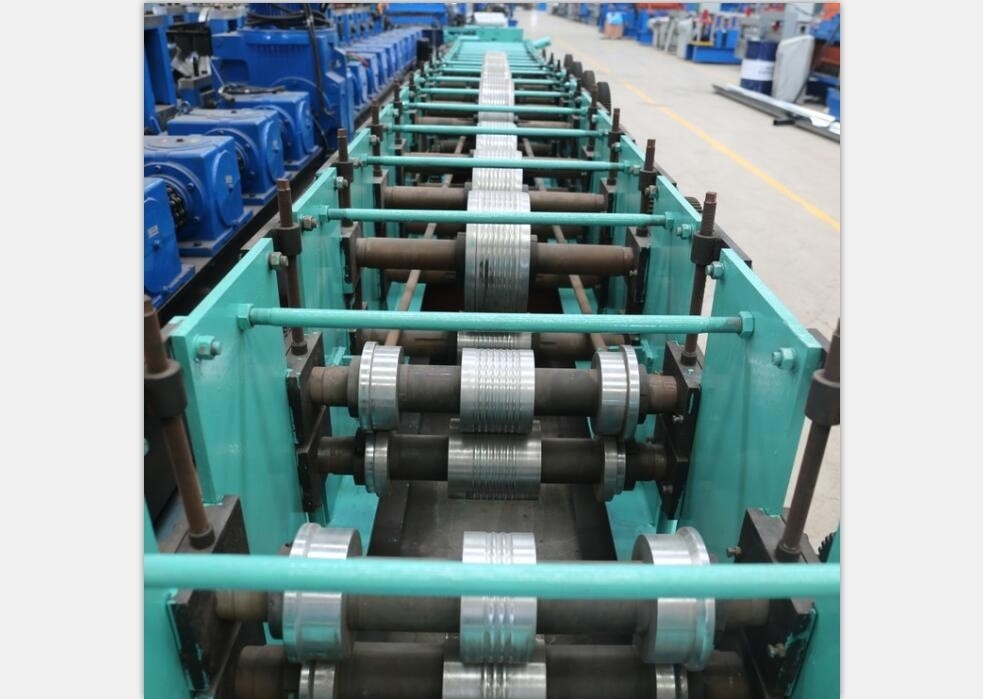

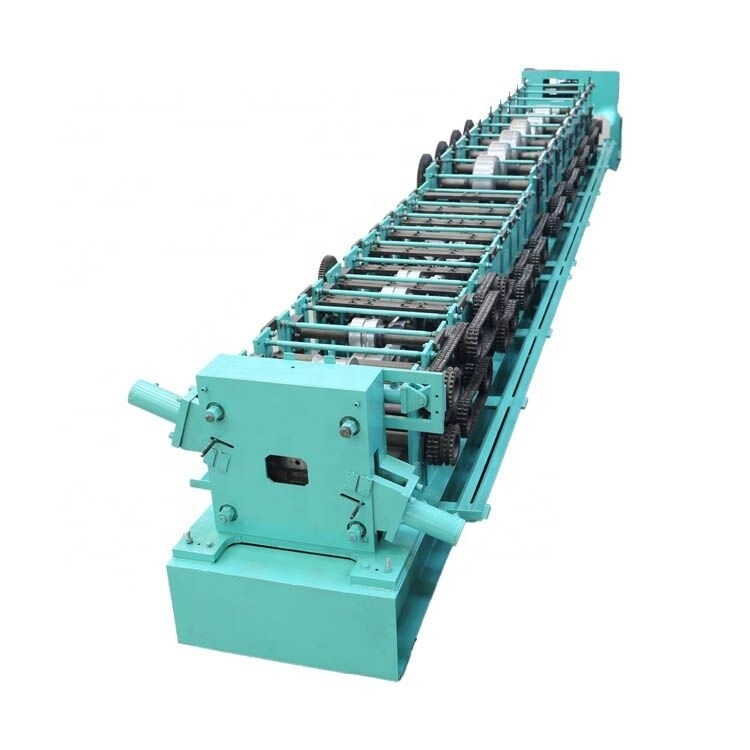

Metal Downspout Pipe Roll Forming Machine Steel Rain Gutter Making Machinery
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI |
| 2 | Roller material | 45#steel Chrome Plated |
| 3 | Production Capacity | 5-12m/min |
| 4 | Roller Station | 22 Stations |
| 5 |
Roller stations |
12-20rows |
| 6 | Machine Weight | 9000 KG |
| 7 |
Electrical Control System |
PLC (can be customized) |
| 8 |
Hydraulic Station Power |
4 KW |
| 9 |
Power Supply |
380V50Hz3Ph |
| 10 |
Cutting Accuracy |
± 2 mm |
| 11 |
Raw material |
PPGI PPGL GI GL |
| 12 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
