उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU Famous
प्रमाणन:
ISO CE
मॉडल संख्या:
downspout

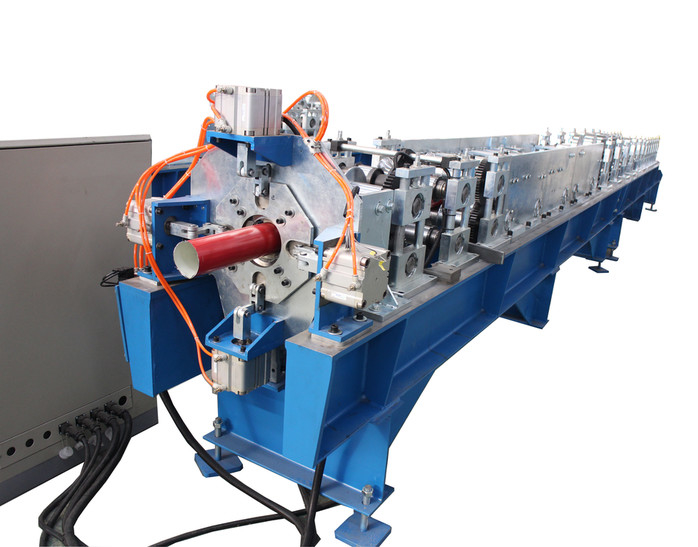

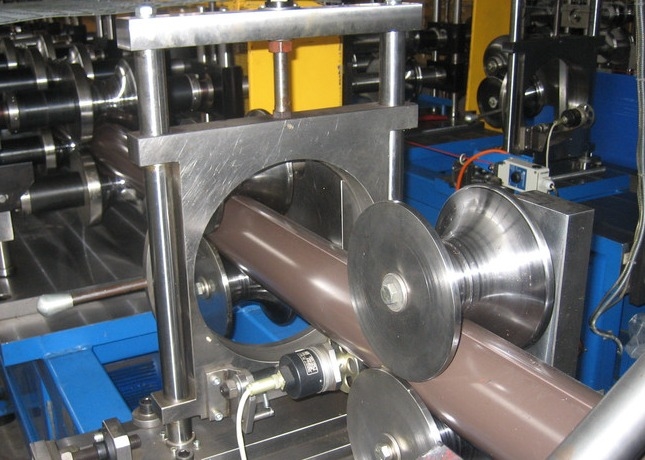

Circular Down Pipe Roll Forming Machine Water Down Pipe Making Line
1.The whole line working speed is about 15m/min.,max working speed could be 30-50 meters per minute.
2.Feeding material width should be confirmed before machine design .the width are changeable,
3.Material thickness normal range are 0.4-0.6mm.if you have any special request on material thickness,we should discuss in advance .
4.Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing.
5.Final sheet embossing is available.we can different embossing rollers on various pattern and drawings.
6.Hydraulic pre-cutting are provided.
| Item | Technical Data |
| Steel Sheet Thickness | 0.5-0.8mm (depend on requirement ) |
| Voltage | 380V, 50HZ, 3 phase |
| Transmission way | Chain |
| Material of blad | Cr12, quenching treatment |
| Capacity of Decoiler | 3 ton passive decoiler |
| Forming Speed | 10-15m/min |
| Roller Groups | about 18 stations |
| Roller Material | 45# grade steel, quenching treatment |
| Roller Diameter | 180mm |
| Principal Axis | 45# high grade steel with quenching treatment |
| Main Motor Power | 5.5 kw |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
