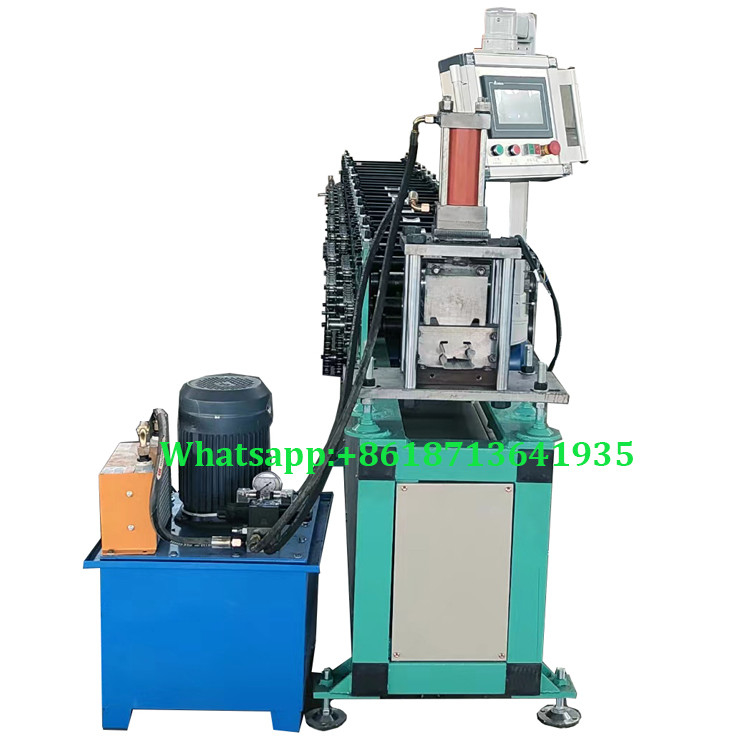

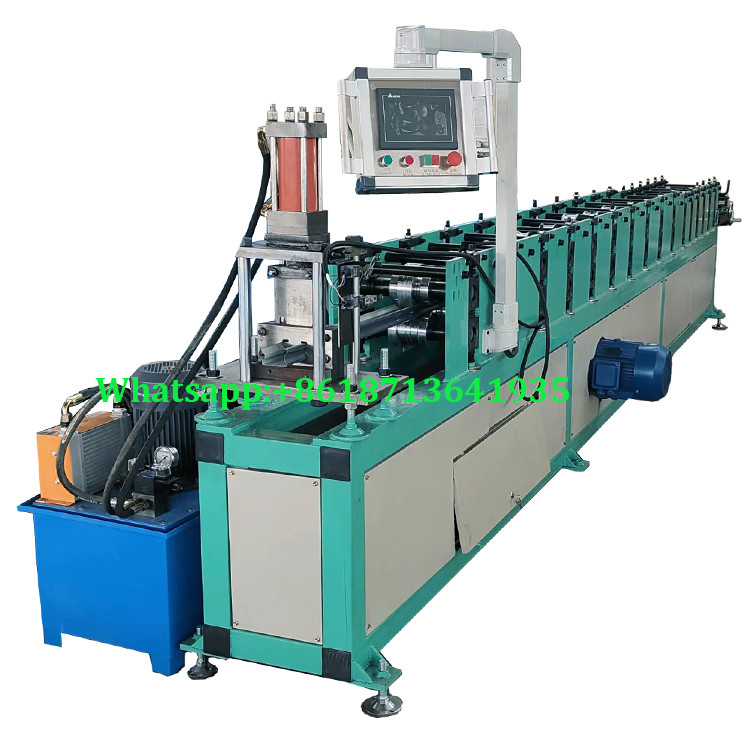

Guide Rail Roller Shutter Door Track Roll Forming Machine 0.8-1.0 Mm Automatic
Shutter door roll forming machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The shutter door roll forming machines a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This shutter door production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc.
Equipment Detailed Parameters:
| Roll forming machine name | shutter door roll forming machine |
| Brand of plc | Delta |
| Material of rollers | Gcr12 steel |
| Material of shafts | Soild high grade 45# steel |
| Diameter of shaft | 60mm |
| Material of blade | Cr12 ateel |
| Transmission | Chain |
| Motor voltage | 380V 50Hz 3P or customized |
| Motor kw | 5.5kw |
| Cutter system | Automatic Hydraulic cutter system |
| Hydraulic pump kw | 3 kw |
| Machine base frame | square pipe welding |
| Raw material | gi |
| Thickness of raw material | 1-2mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
