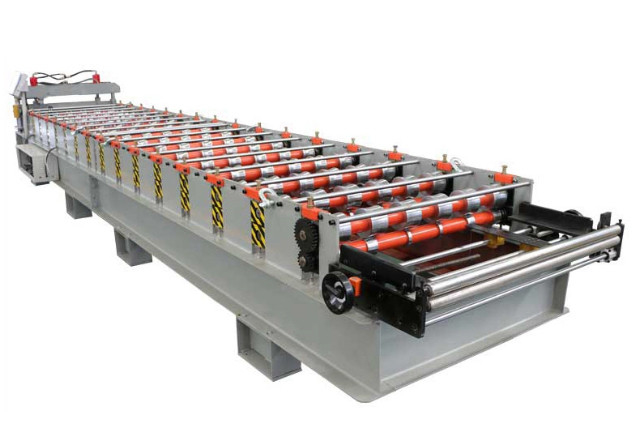

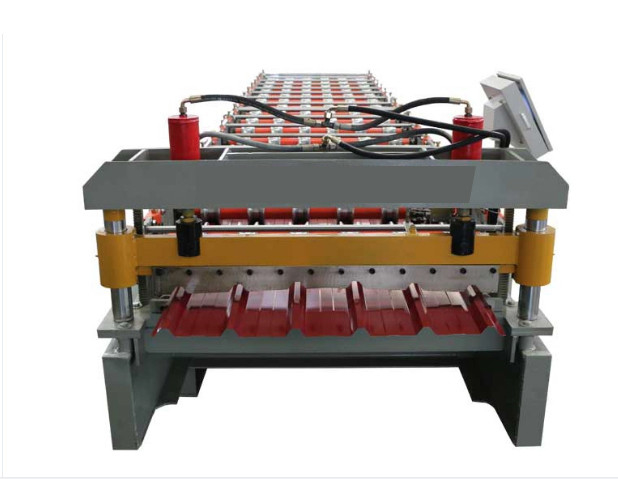

Ibr Metal Steel Sheet Roll Making Forming Machine For Roof Wall Construction
|
Ibr Metal Steel Sheet Roll Making Forming Machine
|
|||
|
1
|
Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
|
|
2
|
Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
|
3
|
Main body
|
Roller station
|
16 rows(As your requirement)
|
|
Diameter of shaft
|
80mm solid shaft
|
||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
||
|
Machine body frame
|
350 H steel
|
||
|
Drive
|
Chain transmission
|
||
|
Dimension(L*W*H)
|
8500*1600*1600(customize)
|
||
|
Weight
|
6.5T
|
||
|
4
|
Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
|
5
|
Power
|
Motor Power
|
5.5KW
|
|
Hydraulic system power
|
5.5KW
|
||
|
6
|
Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
|
7
|
Control system
|
Electric Box
|
Customized(famous brand)
|
|
Language
|
English(Support multiple languages)
|
||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
||
|
8
|
Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
