IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity

IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity

building roof tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

cangzhou fms

प्रमाणन:

CE,ISO

हमसे संपर्क करें
उद्धरण मांगें
उत्पाद विवरण
प्रोडक्ट का नाम:
900 लंबी अवधि की छत रोल बनाने की मशीन 7 पसलियां उच्च क्षमता
कॉइल मोटाई:
0.3-0.8 मिमी
आयाम(एल*डब्ल्यू*एच):
7500X1500X1910 मिमी
वज़न:
6.5टी
रफ़्तार:
12 मी / मिनट
वोल्टेज:
380V 3 चरण 50HZ
प्रमुखता देना:

building roof tile roll forming machine

,

ibr roof tile roll forming machine

,

7 ribs tile roll forming machine

भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
negotiable
पैकेजिंग विवरण
मुख्य मशीन नग्न है, कंप्यूटर नियंत्रण बॉक्स प्लास्टिक से पैक किया गया है।
प्रसव के समय
30 दिन
भुगतान शर्तें
टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता
प्रति माह 30 सेट
संबंधित उत्पाद

6m Automatic Stacker for Roof Sheet Roll Forming Machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine ऑनलाइन वीडियो

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows ऑनलाइन वीडियो

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

सबसे अच्छी कीमत प्राप्त करें
अच्छा दाम 4meter/Min Glazed Tile Roll Forming Machine With 18 Rows ऑनलाइन वीडियो

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

सबसे अच्छी कीमत प्राप्त करें
हमसे संपर्क करें
अब संपर्क करें
उत्पाद वर्णन

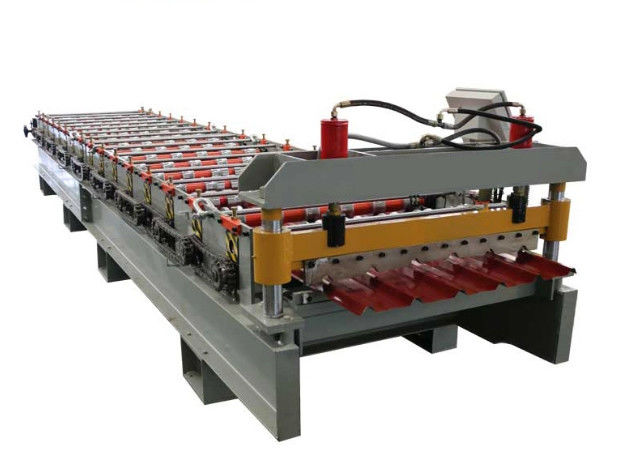

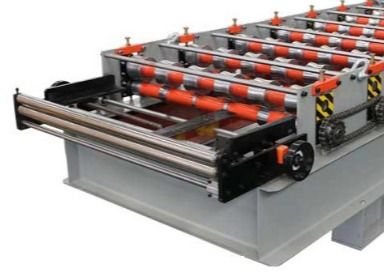

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs



High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs.It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.
Because of price pressure of the material used to manufacture, this product is getting thinner and harder requiring these IBR Rollforming machines to be specially designed to produce and ensure a good quality finished product. It can also be noted that the machines are often required to run 915mm material as well or even 1225mm wide coil.



No.

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs



1
Suitable material
Color steel sheet ,galvanized steel sheet, aluminium sheet
2
Width of material
1000mm or as need
3
Thickness of material
0.3-0.8mm or as your needs
4
Working speed
10-20m/min
5
Electrical control system
PLC control system
6
Shaft diameter
80mm/85mm
7
Dimension
7500x1500x1910mm
8
Weight
About 7 T
9
Voltage
380V 3phase 50HZ or as the customer's requirements
10
Material of roller
High grade 45# forged steel plated with hard chrome plating
11
Material of cutting
Cr12 mould steel with quenched treatment
12
Working time
Can be 24 hours
13
Workers
1-2 only





IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity 0
