Metal Roof Tile Forming Machine Low Noise Roof Panel Machine

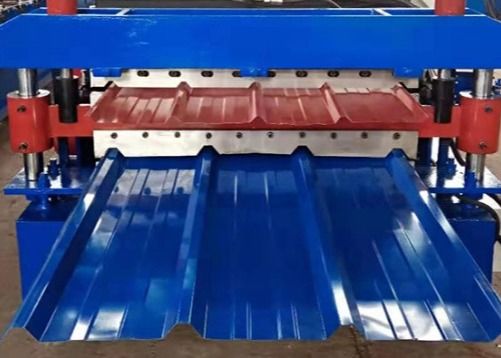

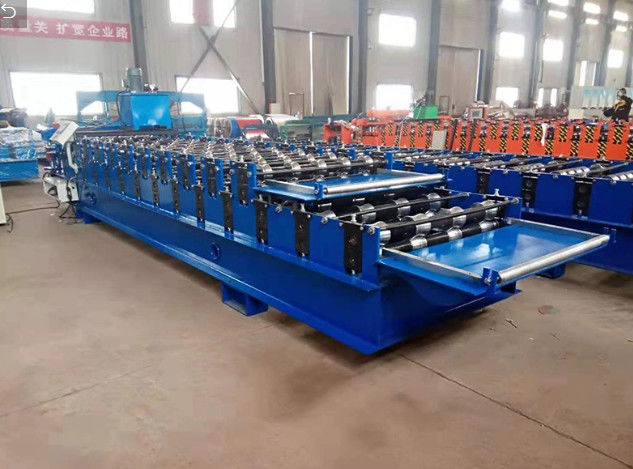

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine,The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can't produce the 2 profiles at the same time.
Specification
| Coil required | Material | PPGI GI AL |
| Width | 914/925/1000/1200/1220/1250mm | |
| Thickness | 0.3-0.7mm , as custom order | |
Power required |
Power | 380V 50Hz 3 Phase , as custom order |
| Main Motor | 5.5KW Siemens Brand | |
| Cutting Motor | 4KW Siemens | |
Machine |
Support Frame | 400 H Steel 10mm |
| Forming Station | 14 rows as profile | |
| Structure | 18-20mm | |
| Shaft | 75mm | |
| Roller | 45# Steel with heat treatment | |
| Chains | 1.2 inch | |
| Bearings | Standard as custom order | |
| Speed | 15-30m/min | |
| Electric Components | Delta and Siemens | |
| Size | 7.5*1.3*1.6M | |
| Weight | 4T |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
