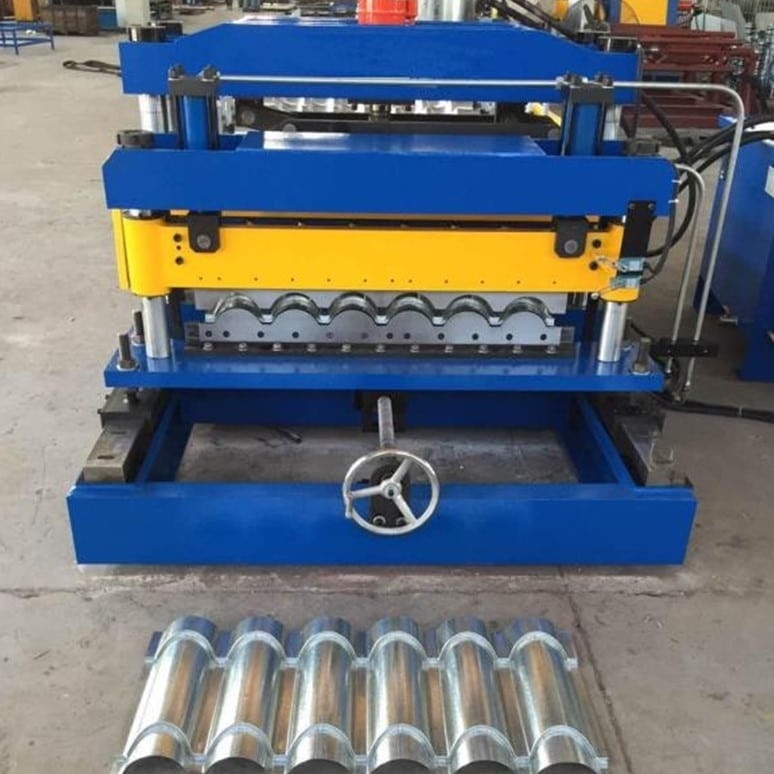

Italy Popular Glazed Tile Making Machine Roofing Step Tile Rollforming Line
Components: It contains one set of the servo motor , one set of blade, one hydraulic tank and one cutter machine.

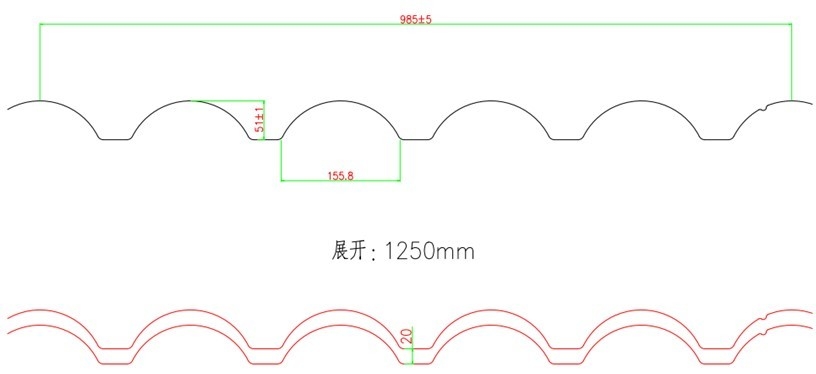

The archaistic tile sheet is rolled and pressed by modular glazed roll forming machine. it enjoys good appearance,primitive simiplicity and elegance,unique style,noblest grade,and etc. It is widely used in garden style factories,scenic resorts,pavilions,hotels, villas,exhibition halls,country clubs,and so on for outdoor decorations.
| No | Italy Popular Glazed Tile Making Machine Roofing Step Tile Rollforming Line | |
| 1 | Speed | 8 meters/min |
| 2 | Material of blades | Cr12 quenched |
| 3 | Power supply |
Hydraulic power |
| 4 | Voltage | 380V 50Hz 3phases |
| 5 | Servo motor power | 3.0 kw 1 GSK |
| Function | Automatic cutting controlled by PLC | |
| Feature | Ensure stability, precision and cutting speed | |
| Material thickness | 0.25-0.8 mm | |
| Main power | 11 kw | |
| Number of rollers | 22 rollers | |
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
