उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
CANGZHOU WILLING
प्रमाणन:
ISO CE
मॉडल संख्या:
ट्रेपेज़ॉइड 760
वीडियो
वीडियो

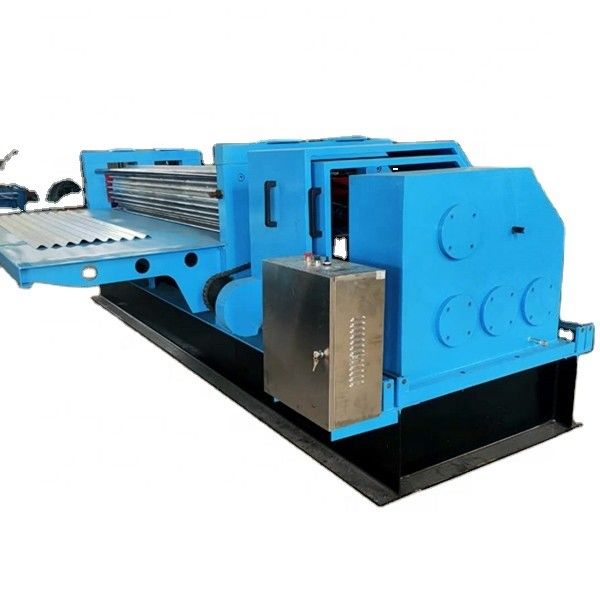

Horizontal Wave Roof Sheet Machine For South Africa

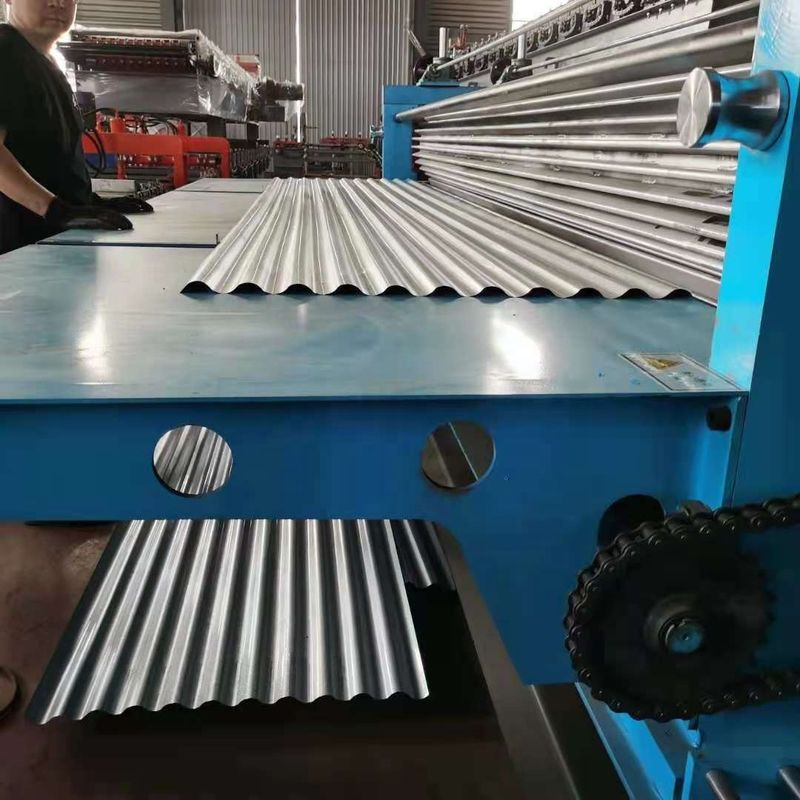

Barrel Corrugated Roll Forming Machine is for thin material from 0.12-0.4mm thinkness. It is very popular in Africa, such as Nigeria, Kenya, South Africa and Senegaln etc.
Note:
The effective width is depend on the raw material width.
The Panel length is depend on the machine Width.
Machine width: 8ft/10ft/12ft (PLS choose according to your needs)
| NO | Name | Specification | Mark | |
|
1. |
Raw material |
Type | Galvanize Steel | |
| Thickness | 0.15-0.3mm | |||
| 2. | Forming machine | Roller station | One feeding station+One Forming Station | |
| Material of shaft | Mn-Fe-C | |||
| Drive way | Motor | |||
| Frame | Welded-Steel Plate | |||
| 3. | Power | Motor | 7.5KW | |
| Voltage | 380V 50HZ | |||
|
4. |
Power | Main motor | 4KW | |
| voltage | 220V 50HZ | |||
| 5. | Brand | Motor Brand | SIEMEN | |
| 6. | Speed | 6-14m/min | ||
| 7. | Labor | Four workers | ||
| 8. | Delivery Time | 30 working days | ||
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
अपनी पूछताछ सीधे हमें भेजें
