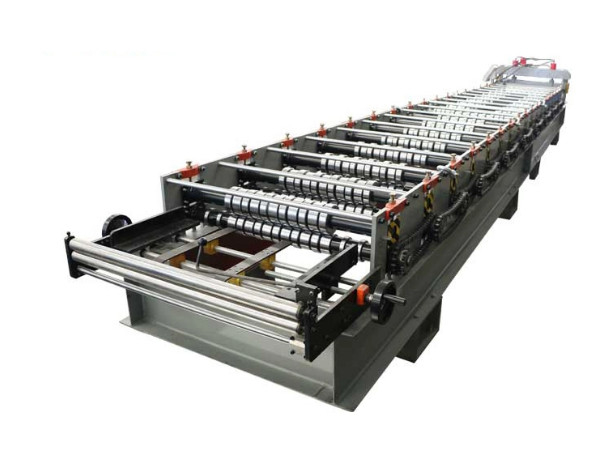

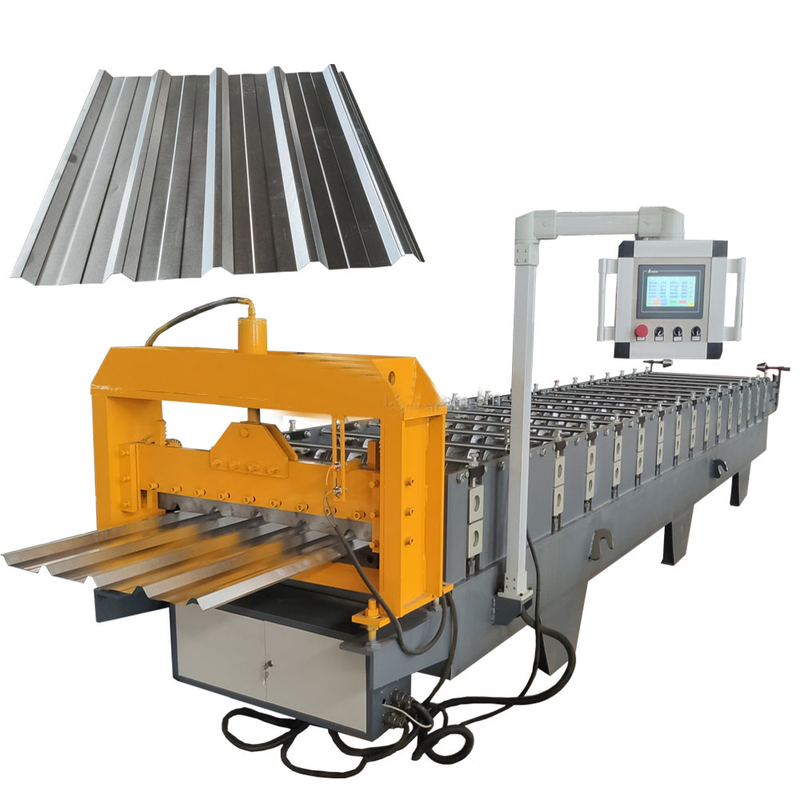

G550 hardness roof panel roll forming machine metal spandek machine 40m/min
G550 hardness roof panel roll forming machine metal spandek machine 40m/min . 40m/min 0.14mm thickness G550 hardness roof panel roll forming machine metal spandek machine is popular sold to all over the world. We are customized roll forming machine factory and we have professional after-sale service team. We call this kind of trapezoid roof tile maing machine as the width of feeding coil material.
The main width of feeding coil material including: 914mm,1000,1219mm,1220mm and 1250mm. Then the effective width of roof tile is different.
The capacity of 40m/min 0.14mm thickness G550 hardness roof panel roll forming machine metal spandek machine can be 8-15m/min, 20m/mim, 8-40m/min. There are two automatic roof panel roll forming machine systems.
Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine
Specification
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | As ur need |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 9-18stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-40 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chrome |
| 8 | Weight | 6.5 ton |
| 9 | length | 6.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 6 Tons |
| 13 | Motor | 5.5kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch or double chain design |
| 16 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
