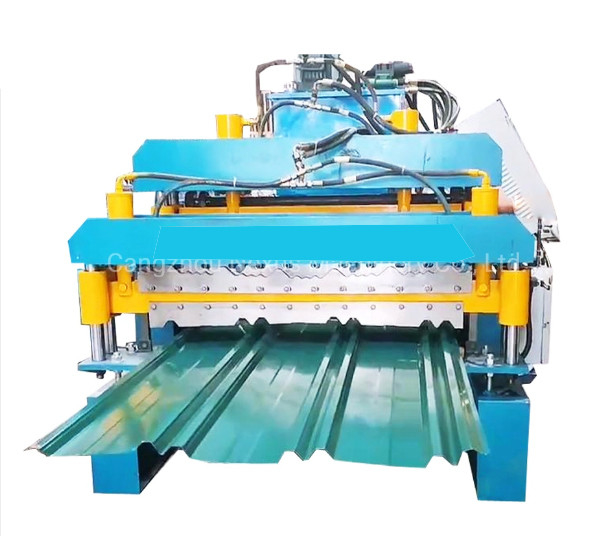

Dust Proof Control Trapezoidal Sheet Roll Forming Machine BI-RIB Low Noise
We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE.With more then 20 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China.
Dust Proof Control Trapezoidal Sheet Roll Forming Machine BI-RIB Low Noise:
Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table
| No. | Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity | |
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 1250mm or as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Working speed | 8-12m/min, can be 20-25m/min |
| 5 | Main motor power | 5.5kw with cycloidal with reducer |
| 6 | Hydraulic pump power | 4kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 75mm |
| 9 | Roller station | 15 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 3.5T |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
