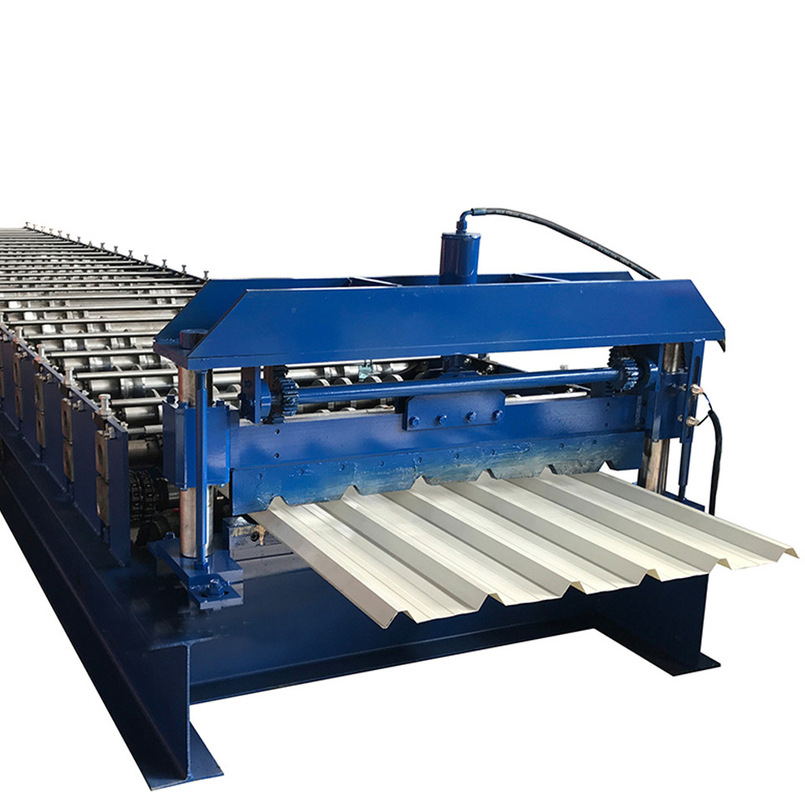

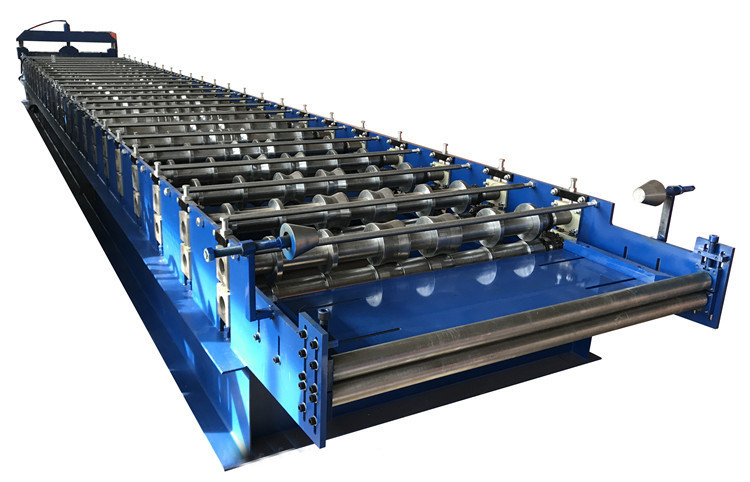

IC72-Panel Trapezoidal Sheet Metal Roof Roll Forming Machine Low Noise
We has been established in 1995 as a professional manufacturers of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more then 20 years of experiences and strict quality control, our products meet International Standard. We are the leading manufacturer and reported of roll forming machine in China.
trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1200mm /1220mm / 1250mm. After rolling product width is 840/1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.
Specification
| Article No. | Item Name | Specification |
| 1 | Effective width | 1000 mm |
| 2 | Thickness of panel | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 23 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 6.5 tons |
| 9 | length | 7 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
