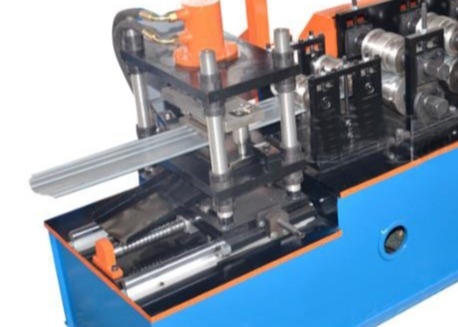

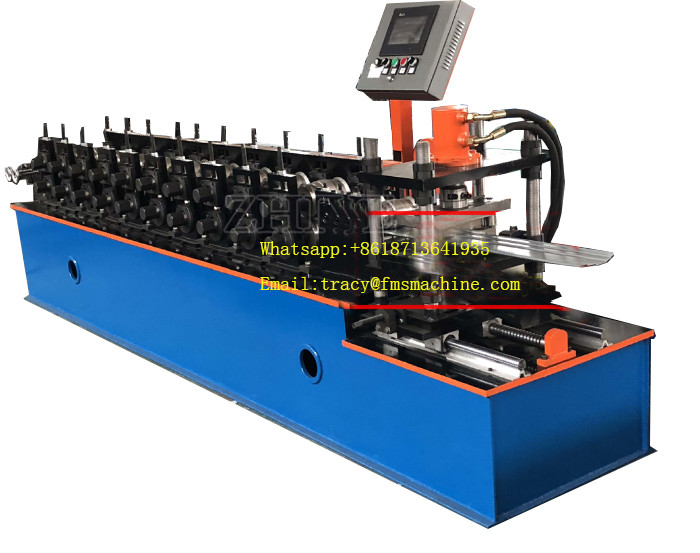

Palisade Decorative Fence Panel Roll Forming Machine Automatic
Cangzhou Famous Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.
Palisade Decorative Fence Panel Roll Forming Machine Automatic,Our Fence Roll Forming Machine for different models based on different designs or customer's samples .The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.
Specification
| No. | Item | Characteristic |
| 1. | Processing Material | PPGI,GI |
| 2. | Processing Thickness(mm) | 0.6-1.6mm |
| 3. | Main Frame/Middle plate |
H400 Steel Beam/ 20mm Steel plate |
| 4. | Material of Rollers | 45# steel, with hard chrome coated |
| 5. | Diameter of Shaft | 100mm |
| 6. | Number of Rollers | 26 stand rollers |
| 7. | Production Speed | 0-14m/min |
| 8. | Roller Driven | Decelerating Motor+20A Chain Transmission |
| 9. | Cutting Model | Hydraulic Profile Cutting |
| 10. | Length Measurement | Encoder |
| 11. | Control Style | PLC |
| 12. | Operation Model | Button + Touch Screen |
| 13. | Total Power | 27.5kw |
| 14. | Voltage | 380V 50HZ or at buyer's request |
| 15. | Testing Material | Q195 |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
