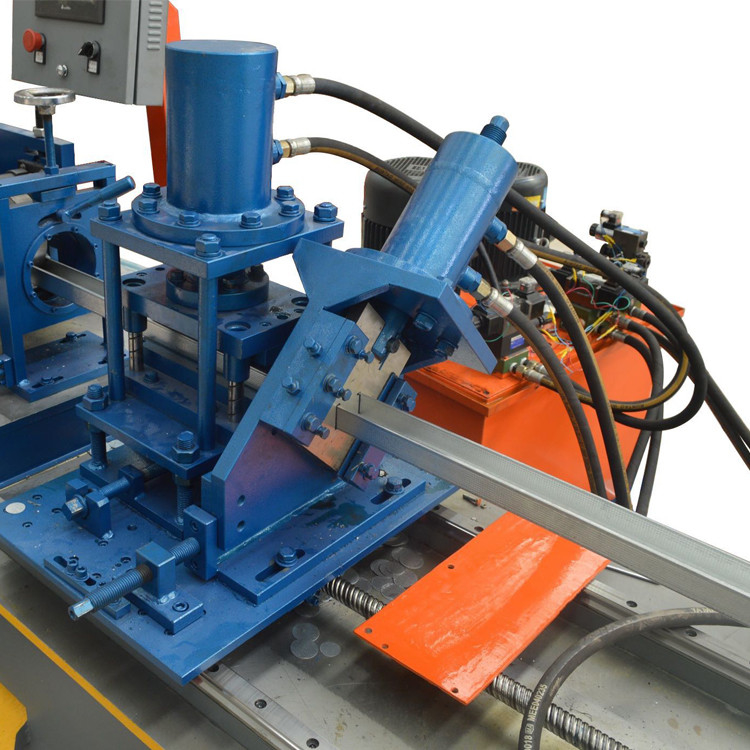

C/U Truss Roll Forming Machine (Model TR-FL) Metal Stud And Track Machine
C/U Truss Roll Forming Machine (Model TR-FL) Metal Stud And Track Machine.In the overall frame of the fuselage we used the gb 360 heavy i-beam, the fuselage stable, long life, no sag of the fuselage. The machine is equipped with double bearings to ensure the quality of the products. Even if one of them is broken, there is another bearing to ensure the operation. Our products are inspected by professional machines and quality inspection teams,They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework. Working Process The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. ...
Specification
| Name | Metal Stud And Track C Purlin Channel Roll Forming Machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | According to your actual drawing. |
| Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 4.8*0.8*1.2 m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet |
You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
