उत्पत्ति के प्लेस:
चीन (महाद्वीप
ब्रांड नाम:
FMS
प्रमाणन:
ISO CE
वीडियो
वीडियो
वीडियो
वीडियो

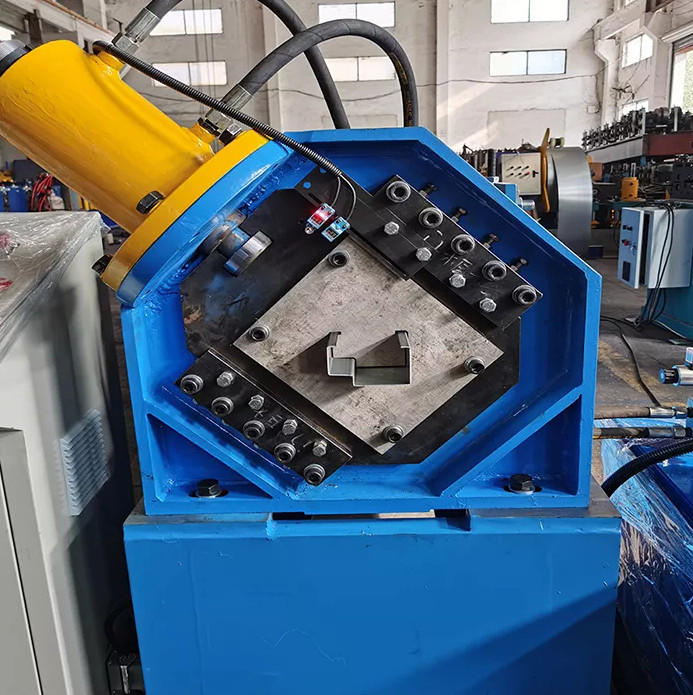

Fast Speed Metal Door Frame Roll Forming Machine Factory Customized

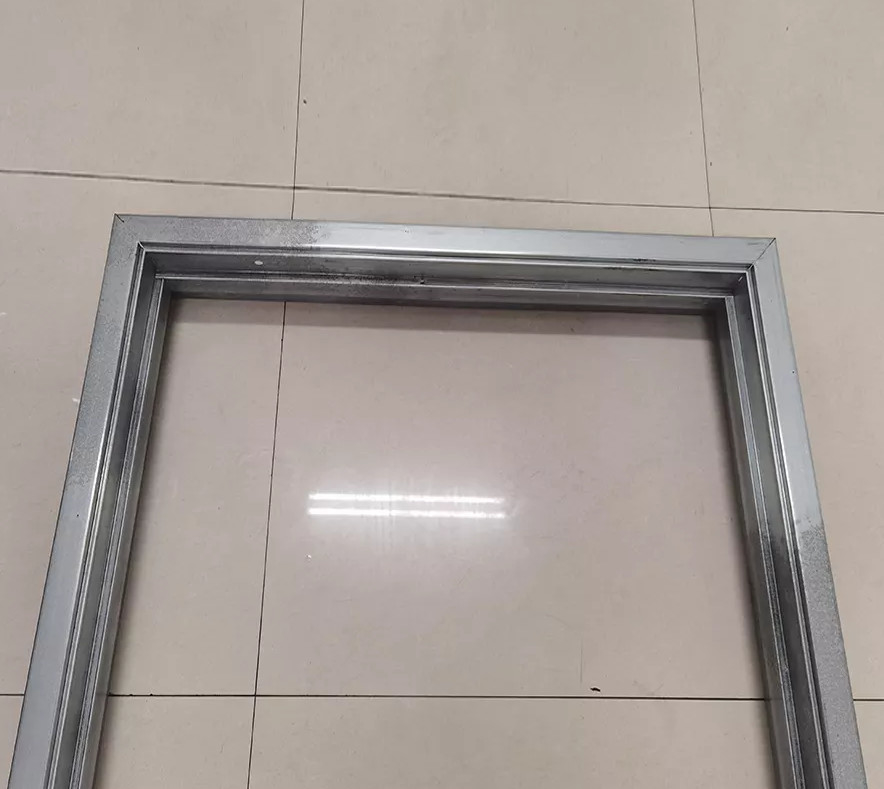

Doorframe And Fire Door Roll Forming Machine Doorframe Roll Forming Line.It can produce a structural doorframe, fire door and clean panel, doorframe roll forming line of KINDUS can automatically control according to the width of product.Widely used in various industrial, factory, villa building, civilian building, warehouse and have features such as nice appearance and durable.We can manufacture various kinds of machines to satisfy our customer, you can also provided the drawings what you want or the samples, we will design the project for you accordingly.
Specification
| Technical Parameters (some depend on the final design) | ||
| 1 | Machine Type | Door frame |
| 2 | Machine Dimension (mm) | 10500*900*1450 |
| 3 | Total Wight (Kg) | 6000 |
| 4 | Forming Steps | 16 |
| 5 | Forming Speed (m/min) | 15-20m/min |
| 6 | Hydraulic Station Power(KW) | 7.5 |
| 7 | Diameter of Shaft (mm) | 75 |
| 8 | Electric Condition | 380V/3Phase/ 50HZ |
| 9 | Power for Hydraulic Uncoiler(KW) | 3KW |
| 10 | Recoiler Max Capacity (KGS) | 5Tons |
| 11 | Control System | PLC |
| 12 | Raw Material Thickness (mm) | 1.2-1.5mm |
| 13 | Effective Width(mm) | 58mm |
| 14 | Material Width(mm) | 500mm |
| 15 | Serial Number | BG2020006 |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
