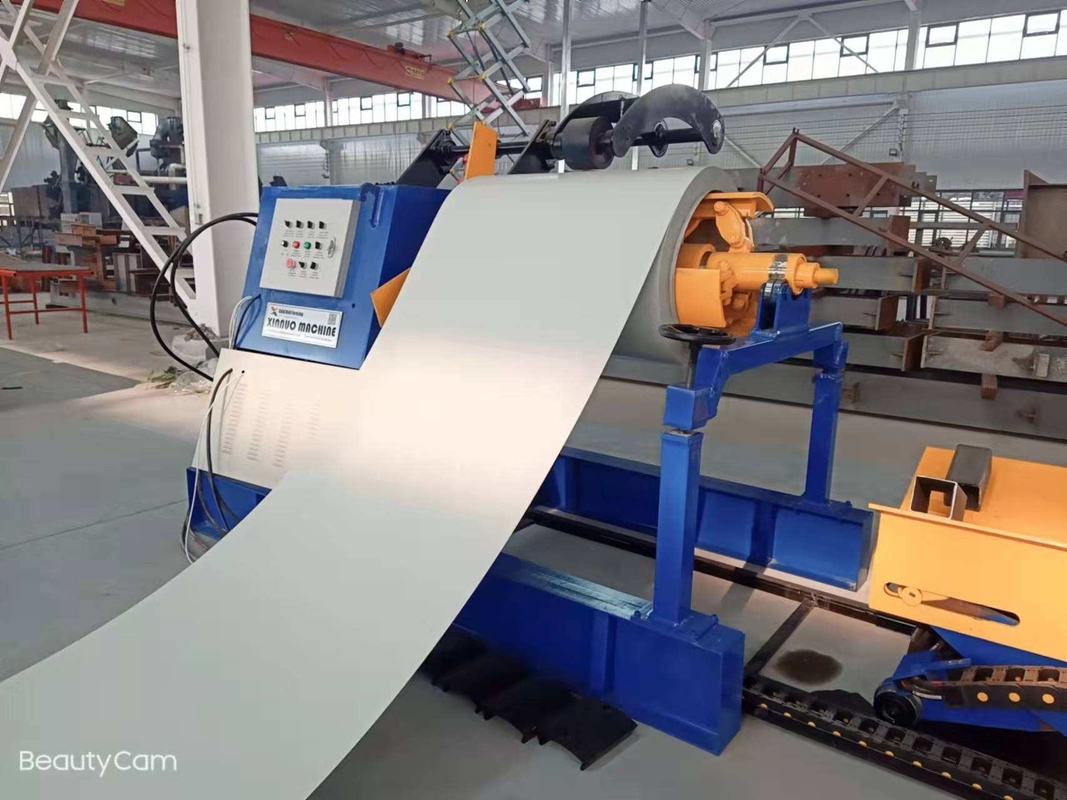

Teel Coil Slitting Machines Heavy Duty Decoiler Slitting Line Machines
Teel Coil Slitting Machines Heavy Duty Decoiler Slitting Line Machines :

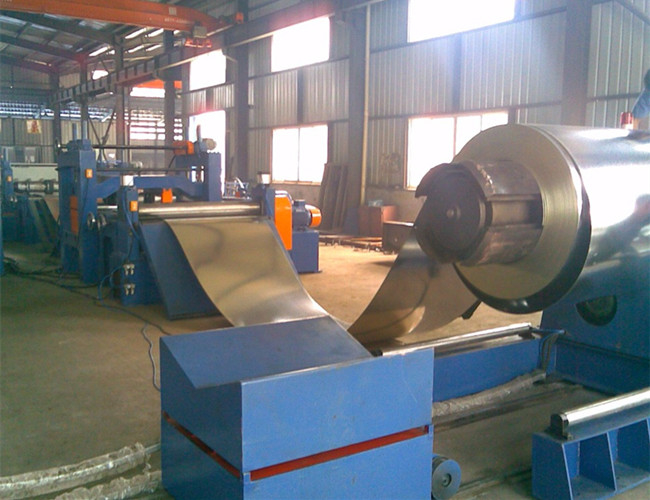

Roll slitting machine is a length ways cutting production line, for cutting metal sheet strip. roll slitting machine can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the slitted metal sheet strips, for getting narrow metal sheet strip coils.roll slitting machine is for metal sheet strip coil cutting service center, press machine stamping punching, metal sheet strip processing,etc.
Specification
| Technical Parameters of Sliting Machinery | |
| 1. Specifications: | |
| b. Tensile strength | b≤500Mpa, S≤300Mpa |
| c. Thickness | 0.5-2.0mm |
| d. Width | 500-1600(Max) or customized |
| e. Coil I.D. | 508mm |
| f. Coil O.D. | 1600mm(Max) |
| g. Weight | 15T(Max) or customized |
| h. Diameter of leveling rollers | 65mm |
| i. Distance of leveling rollers | 70mm |
| j. Material of leveling rollers | GCr15, hardness: HRC 55-60 |
| k. Total weight of machines | around 30T |
| 2. Finished products parameters | |
| a. Diagonal tolerance | ≤±1mm/2000mm |
| b. Length tolerance | ≤±0.5mm/2000mm |
| 3. Other parameters | |
| a. Power | 380V/50Hz/3Ph or customized |
| b. Line speed | 0-60m/min or customized |
| c. Capacity | around 100kW |
| d. Area of the whole production line | (about) 25m(L)×7m(W) |
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
