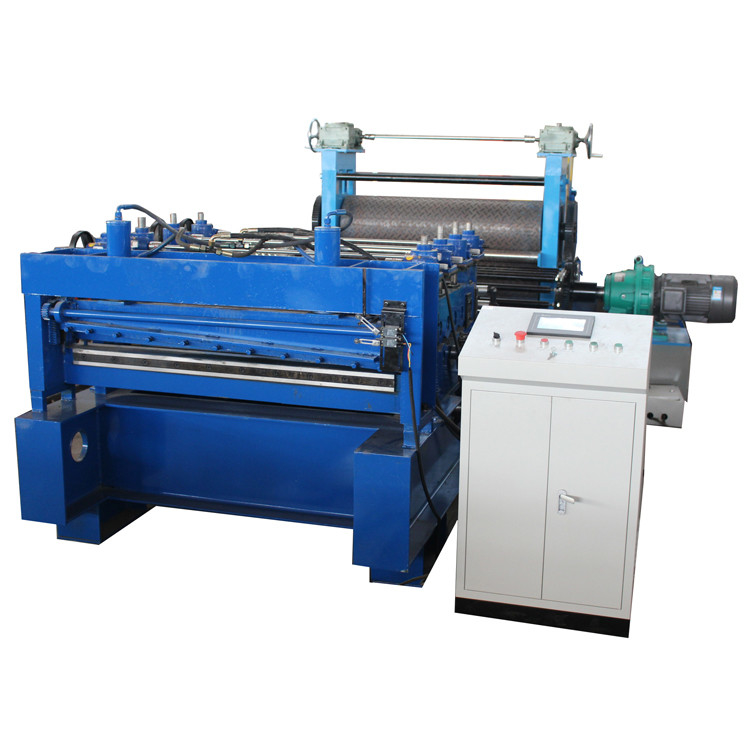

Steel Metal Sheet Metal Plate Embossing Machine Embossing Line

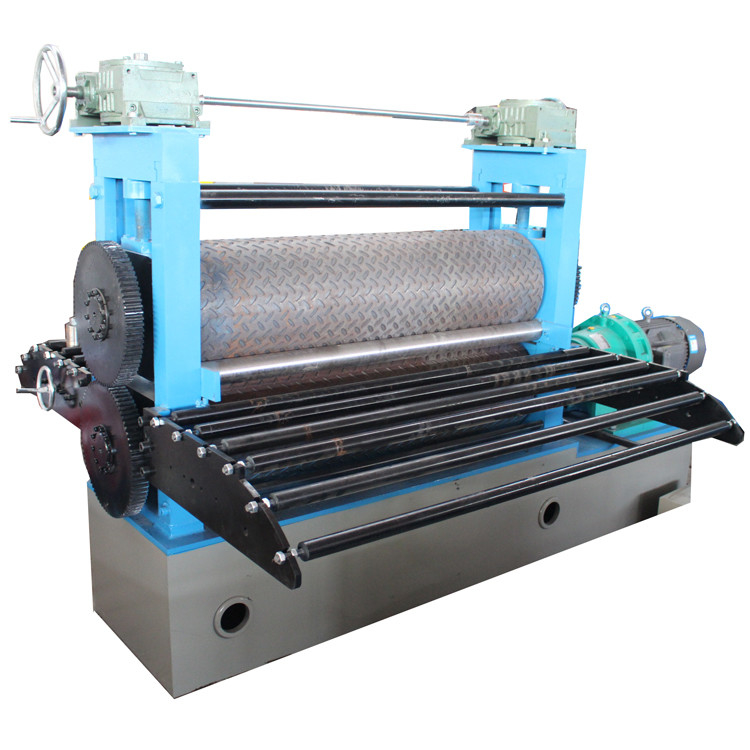

Steel Metal Sheet Metal Plate Embossing Machine Embossing Line.The embossing rollers steel machines fuctions main by the two big rollers, there are patterens on the rollers, so when then rollers rolling, and the sheet between the two sheet is running, there will appear the patterns on the sheet.
Finest-quality Steel Embossing roller floor embossing machinery can work manual by workers from the feeding and the embossing, and also be formed by the full automatic by PLC controling box.
The embossing profile can be customized as customer's request.
Welcome you send us the profile drawing.
Specification
| Pattern | as customer required |
| Material Thickness and width | Thickness maximum 6mm,width maximum 1500mm |
| Material | Carbon steel,stainless steel,so on |
| Productivity | 0-8m/min ,the speed can be adjusted |
| Technical Parameter |
Embossed roller: 2 pcs Material:42CrMo,Solid forging Hardness:tempering and intermediated frequency quenching,roller surface hardness HRC63-64. Surface with hard chrome coating or boiled black. Motor:22kw Siemens Beide motor Cycloida speed reducer: BBWD7-87-22KW-4P Electric control:Fulling AC frequency driver Press-down:by screw rod driven by worm speed-reducing motor WPWKO 100 Machine structure:90-120mm solid steel plate Include: Input and output platform Safety cover Leveling Roller:90-120mmx 11pcs |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
