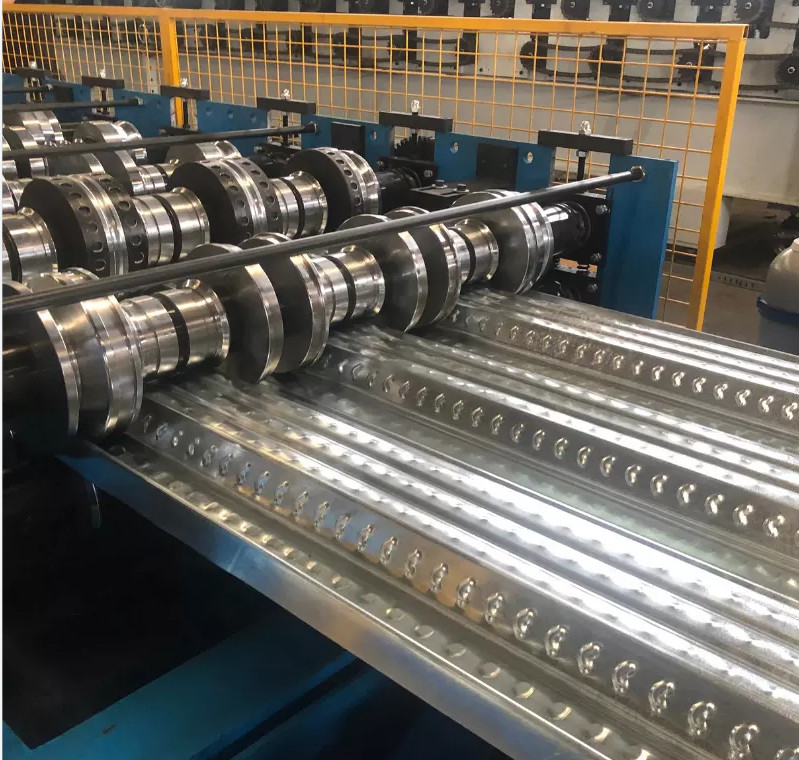

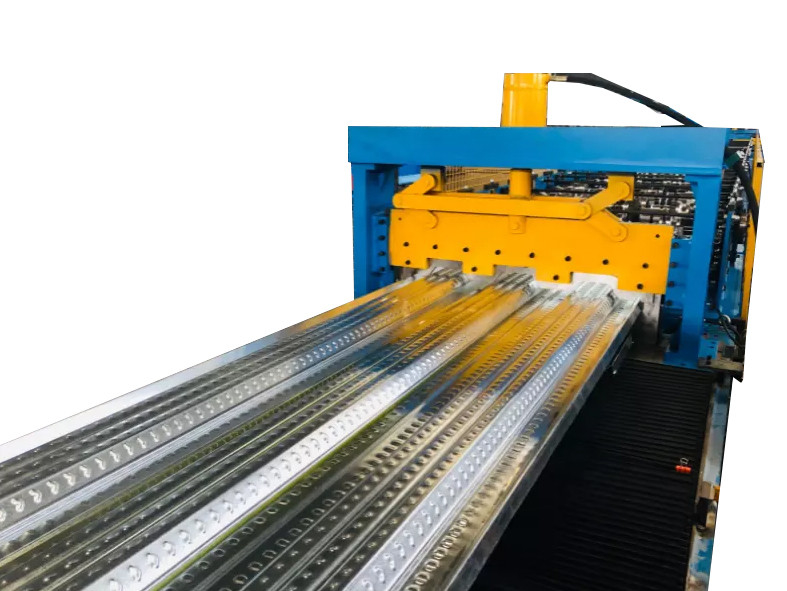

High Speed Floor Deck Roll Forming Machine 30m/Min 914mm
High Speed Floor Deck Roll Forming Machine 30m/Min 914mm
Specification
Item NO | Description | UnitType | RF-DF |
1 | Steel Thickness | mm | 0.7-1.2mm G550 galvanized steel |
2 | Forming Speed | m/min | About 0-30 |
3 | Roller stands | stand | About 34 |
4 | Roller Material | high-grade Gcr15 steel | |
5 | Shaft diameter | Ф95mm | |
6 | Main Motor Power | Kw | 22*2kw |
7 | Hydraulic cutting Power | Kw | 7.5 |
8 | Hydraulic pressure | Mpa | 12 |
9 | Power Supply | 220V, 60HZ,3 phase | |
10 | Tolerance | mm | 1.5 |
11 | Material of cutting | Cr12mov | |
12 | Control system | PLC with touch screen | |
13 | Transmission | Chain driven | |
14 | Machine size | mm | About 16500*1500*1350mm |
15 | Machine weight | T | About 15 |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
