उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
वीडियो
वीडियो
वीडियो
वीडियो

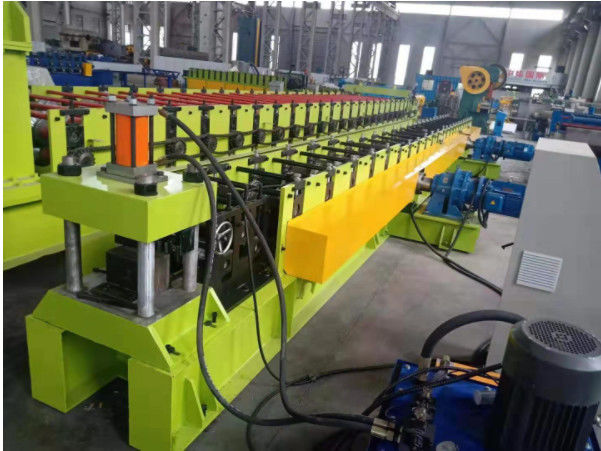

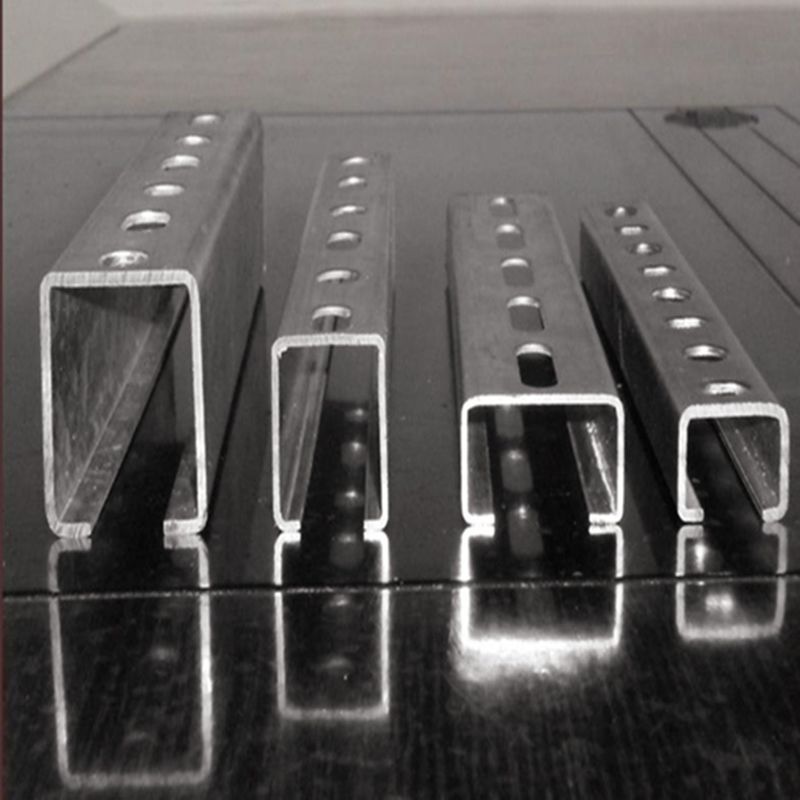

41*41 41*21 solar panel bracketing roll forming line none stop cutting
CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.
Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.
specifications
| rticle No. | Item Name | Specification |
| 1 | Width of feeding material | <1000 mm coil sheet |
| 2 | Thickness of feeding material | <3.0 mm coil sheet |
| 3 | Roller station | 22 stations |
| 4 | Shaft Diameter | 75-85 mm |
| 5 | Productivity | 20-25 m/min |
| 6 | Rollers' material | Bearing steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 5-8 tons |
| 9 | length | 12.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 6 tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
