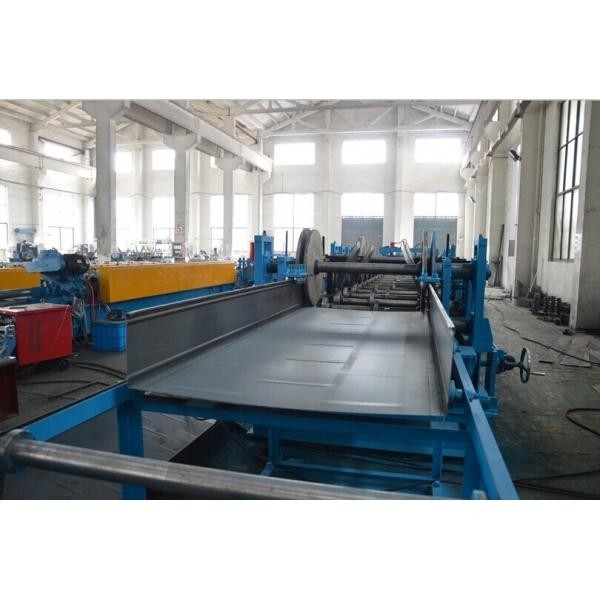

90 - 600mm Profile Width Cable Tray Roll Forming Machine 7.5KW Motor High Speed
CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD is a professional manufacturer designing and producing roll forming machines established in June 1995.
Products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.
specifications
| Material Spec | colored steel sheet, galvanized steel sheet |
| main motor power | 4.0 kw |
| forming speed | 10-15m/min |
| Diameter of roller | 70 millimeter |
| Thickness of Coil Sheet |
|
| the width of the colored sheet | 1000 millimeter |
| the effective of steel sheet | 820 millimeter |
| Hydraulic station pressure | 3 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | about 5.5ton |
| Voltage | 380 volt/3phase |
| Roll stand | 22 groups |
| PLC | Computer adopt PLC, Mitsubishi FX-IS series |
| Dimension | 11.4m*1.3m*1.2m |
| Roller material | high grade No.45 forged steel, plated hard chrome onthe surface of roller with thickness 0.05 millimeter |
| Frequency converter | containing |
| Computer operating screen | MT6056 from Taiwan |
| Material of cutter | Cr12 |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
