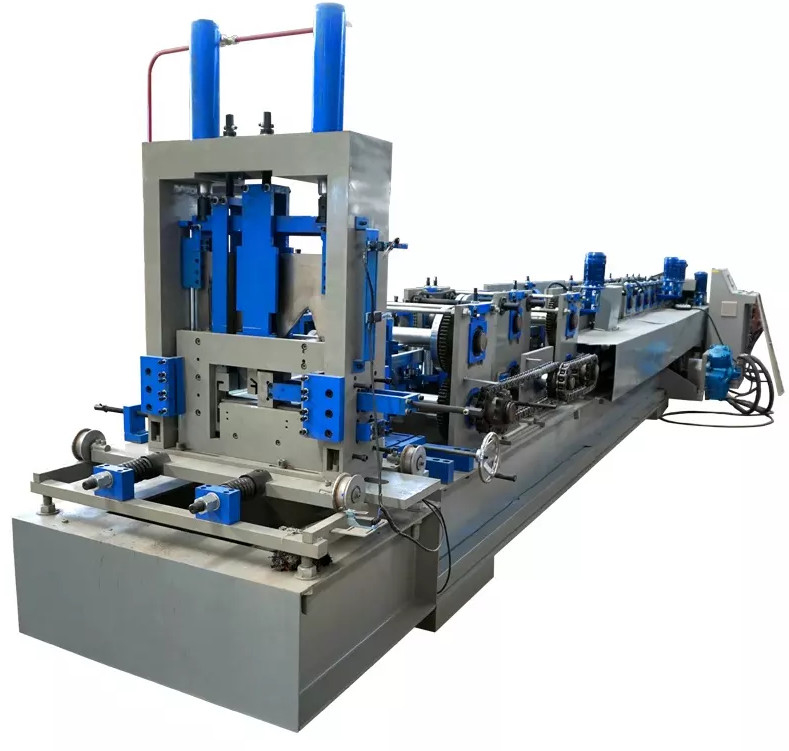

Automatic CZ Purlin Machine Automatic Size-Change Type
Automatic CZ Purlin Machine Automatic Size-Change Type.

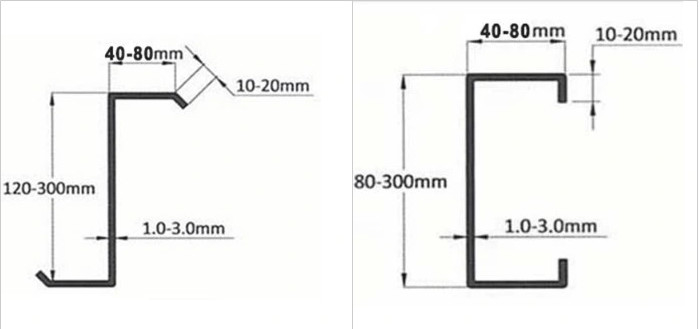

Main features of automatic cz purlin roll forming machine:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
specifications
| NO. | Item | Specification | |
| Servo motor | Hydraulic motor | ||
| 1 | Thickness of material | 1.0~3.0mm galvanized steel | |
| 2 | Main motor power | 22kw | |
| 3 | Hydraulic pressure | 16Mpa | |
| 4 | Control system | PLC panel control | |
| 5 | Shaft material | 40Cr(φ80mm) | |
| 6 | Roller material | GCr15 | |
| 7 | Forming speed | 25~35m/min | 16~20m/min |
| 8 | Hole punch & cutting | Hydraulic 7.5kw | |
| 9 | Decoiler | Manual | |
| 10 | Cutting blade material | Cr12Mov | |
| 11 | Roller station | 22stations | |
| 12 | Dimension of machine(L*W*H) | 10m*1.35m*1.75m | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
