उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
FMS
प्रमाणन:
CE,ISO
वीडियो
वीडियो
वीडियो
वीडियो

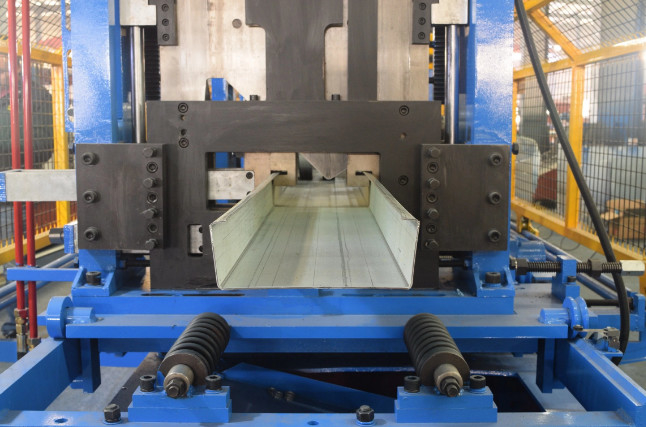

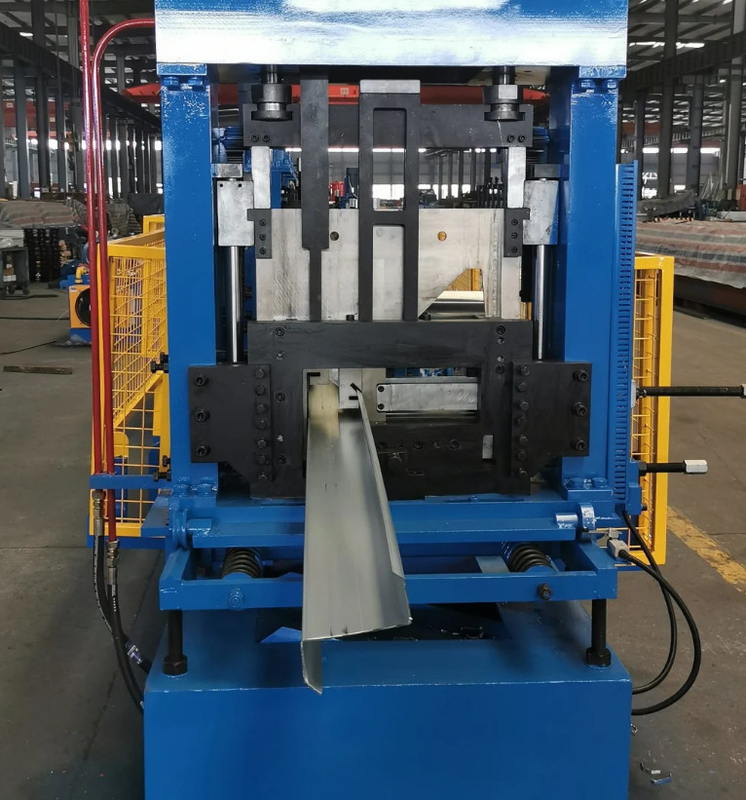

CZ Purlin Roll Forming Machine Full Automatic Hydraulic Motor Drive
Main features of CZ Purlin Roll Forming Machine Full Automatic Hydraulic Motor Drive:
1. Produce different purlin size without changing rollers or spacers.
2. No need changing cutter for different size.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
5. Optional Punch hole at any position of purlin web side and flange side
C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. .It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel. It is made by cold bending of hot rolled plate.
specifications
|
Configurations: |
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming, Motor, Cutting Device ,Hydraulic Station ,PLC Control,Supporter Table.
|
|
Control System:
|
PLC Delta Inverter
|
|
Main Frame:
|
350mm H-Beam
|
|
Main Power:
|
4 kw
|
|
Power Supply:
|
380V, 3-Phase,60Hz
|
|
Forming Speed:
|
15-20m/min
|
|
Roll Station:
|
16 stands
|
|
Roller Diameter:
|
80mm
|
|
Thickness of raw material:
|
1.5-3.0mm
|
|
Main motor type:
|
Hydraulic motor
|
|
Material of roller:
|
GCr15
|
|
Diameter of main shaft:
|
Ø85mm
|
|
The thickness of the side plate:
|
30mm
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
