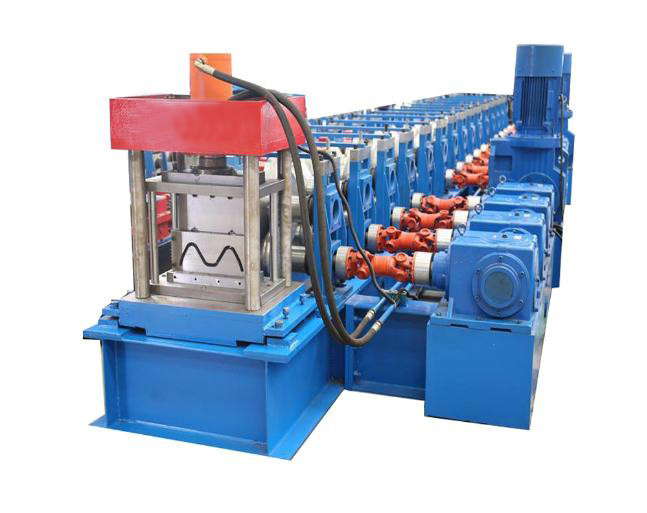

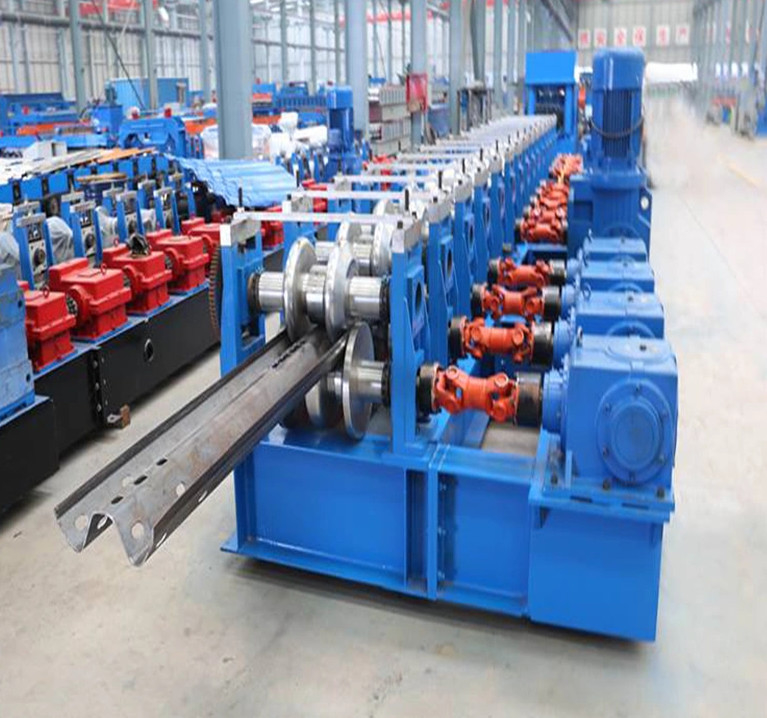

Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance
Custom W Beam 2 Wave Highway Guardrail Roll Forming Machine High Performance.Processes: Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table
highway road guardrail W shape bumpls road barrier making machine cold roll forming.Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.
Specification
| High performance Custom Steel Crash Barrier W Beam 2 Wave Highway Guardrail Roll Forming Machine | |
| Material thickness | 0.3-0.8mm |
| Diameter of shaft(solid shaft) | 70mm |
| Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
| Material of roller | 45# steel polished and coated with chrome HRC55-60° |
| Reducer | 8# cycloid reducer (high grade) |
| Cutting | hydraulic cutting after roll forming |
| Control system | PLC Frequency Control System with touch screen |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
