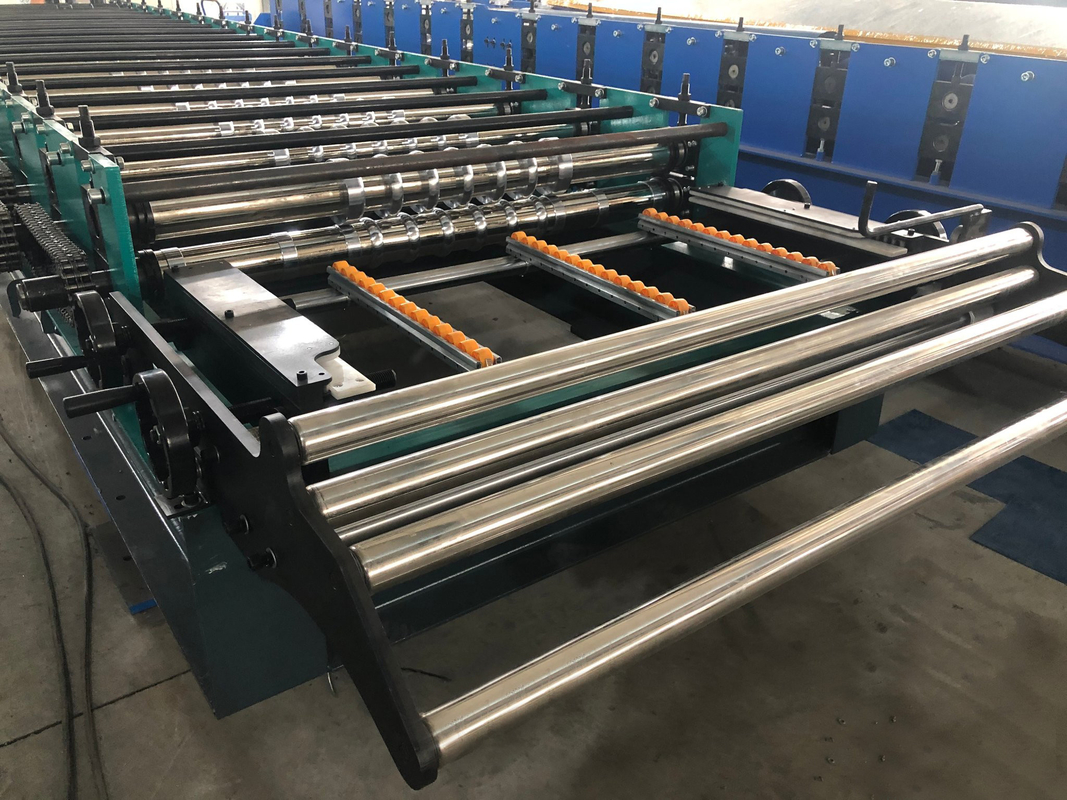

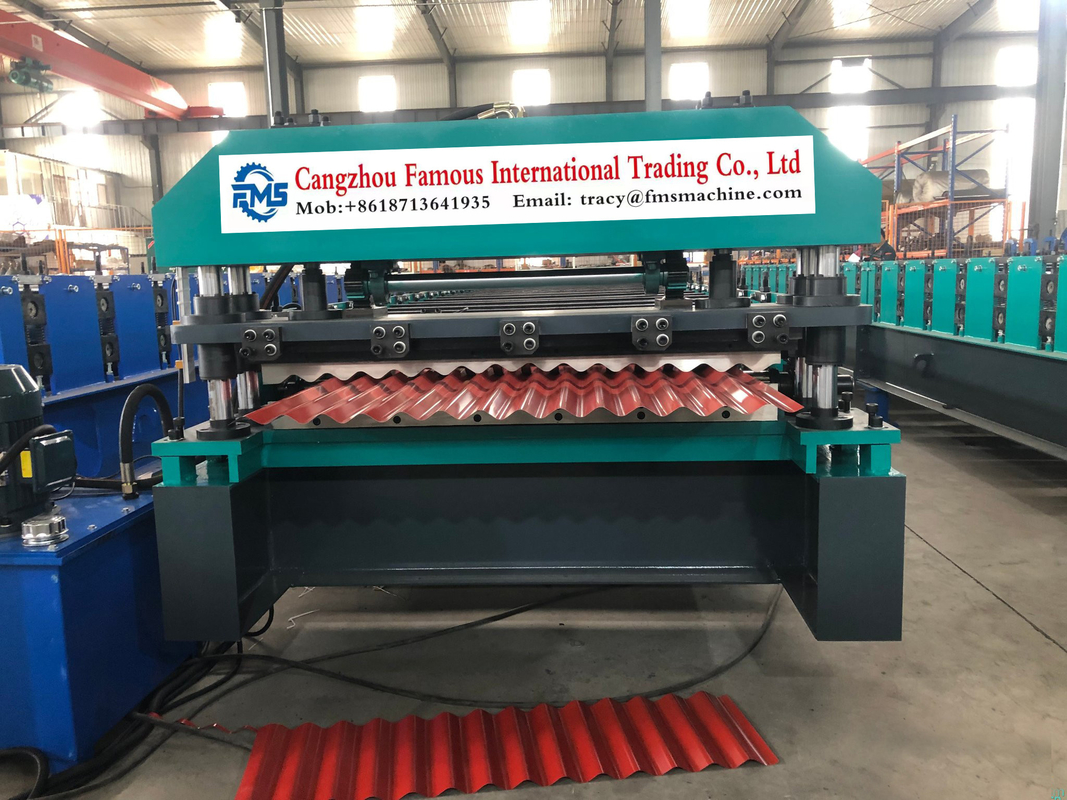

Roof Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine
Roof Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine.The roof panel machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.
Specification
| Name | Roof Roll Forming Machine 7/8'' Corrugated Roof Sheet Making Machine | |
| Raw Material | Material | Aluminium PPGI PPGL GI GL |
| Width | 914/925/1000/1200/1220/1250/1260mm | |
| Thickness | 0.3-0.8mm, customized | |
| Power Required | Power | 380V 3Phase 50Hz, customized |
| Main Motor | 2*7.5KW, Lichao, Shanghai | |
| Cutting Motor | 5.5KW, servo motor | |
| Roll Forming Machine | Support Frame | 400H-beam |
| Forming Station | 26 | |
| Structure | 16mm | |
| Shaft | 45# high grade steel, 90mm, solid, with keyway | |
| Roller | 45# high grade steel with heat treatment, hard chrome plated | |
| Chain | 1.2inch | |
| Bearing | Standard | |
| Speed | 12-18m/min | |
| Electric Components | Delta / Siemens / Mitsubishi | |
| Cutting Blade | Cr12Mov, quenched 58°-62° | |
| Operation | Touch Screen | |
| Dimension | 13.5*1.6*1.45M | |
| Weight | 7.0T | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
