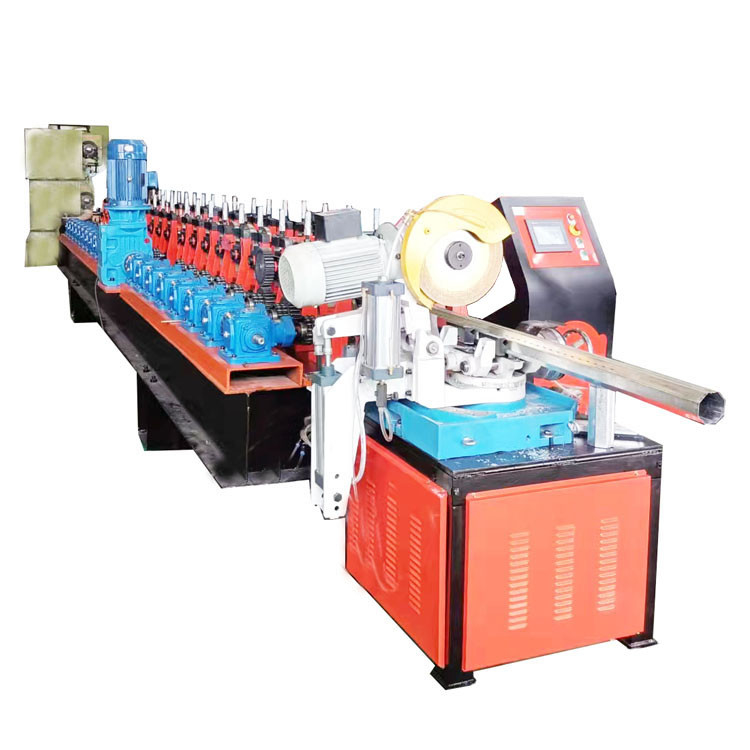

Rolling Shutter System Steel Octagonal Steel Tube Production Line

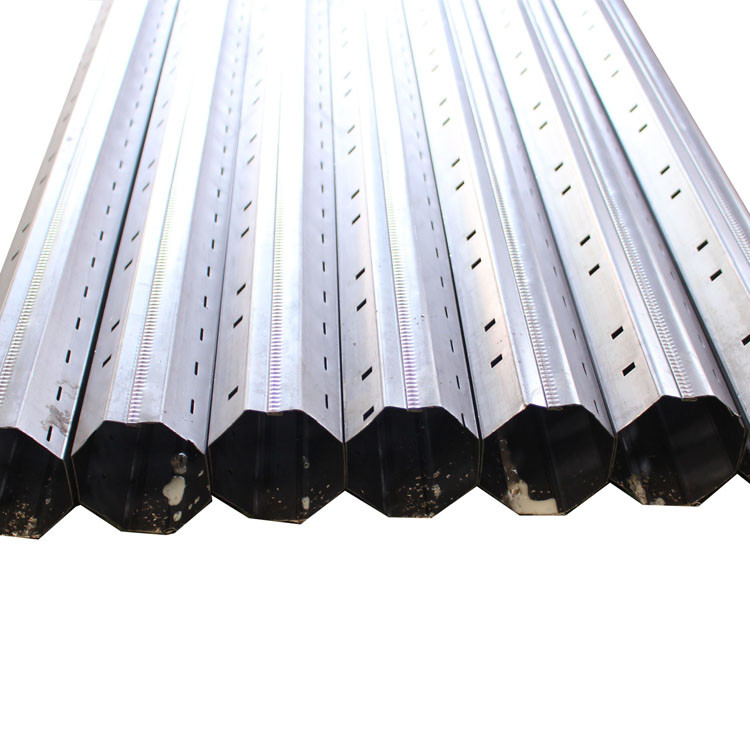

Rolling Shutter System Steel Octagonal Steel Tube Production Line,Good quality galvanized 60mm 70mm octagonal tube roll forming customized ,has the advantage of high production efficiency and accuracy, easy operation and stable performance.the octagonal steel shaft is on the left or right in shutter box bearing bearing and is the changing female for the roller shutter hangings.
Specification
|
No
|
Item
|
Parameter
|
|
1
|
Material thickness
|
0.4-0.8 mm(according to customer's requirement)
|
|
2
|
Speed
|
10-15 m/min
|
|
3
|
Rollers
|
22 stations, 45# forged steel, surface coated with chrome
|
|
4
|
Main motor
|
7.5kw
|
|
5
|
Shaft material
|
45# forged steel, thermal fining
|
|
6
|
Cutting blade material
|
Cr12 Mov, quenching treatment
|
|
7
|
Weight/ Container
|
Abt 7tonne/ one 40'GP
|
|
8
|
Control system
|
Panasonic PLC, Yaskawa Transducer, Omron encoder
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
