उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou fms
प्रमाणन:
CE,ISO
वीडियो
वीडियो

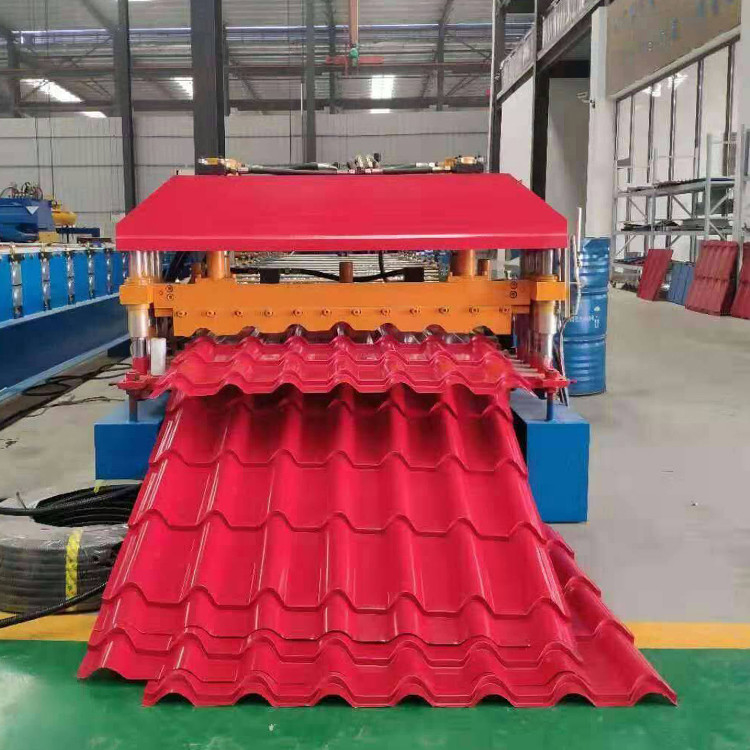

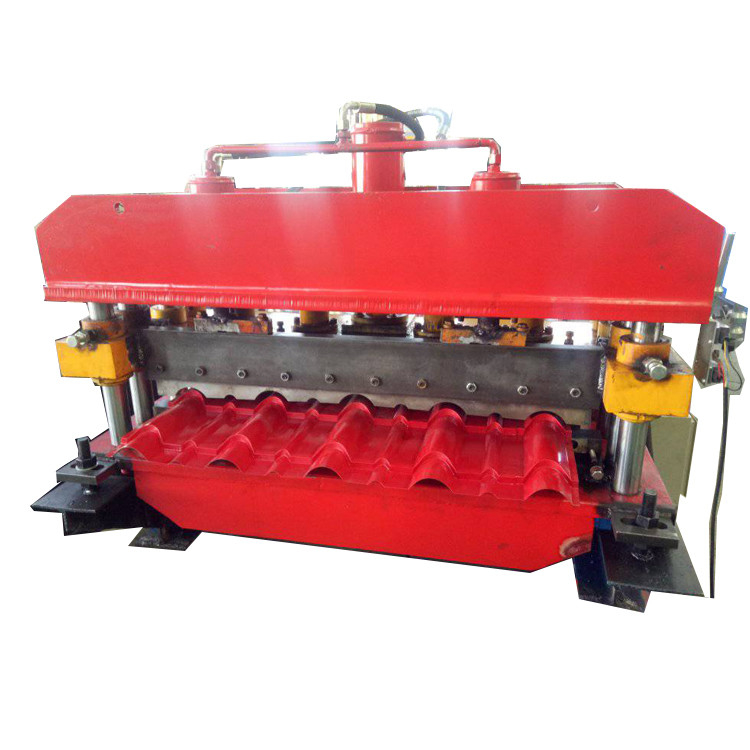

Glazed Tile Roll Forming Machine For Yx35-925 Profile
Customized sheet glazed tile roll forming machine steel coil mould equipment is customized . The speed of roll forming machine is 8m/min. It is double speed than normal 3-4m/min. This roll forming machine can meet standard of CE. Our metal roof machine is very popular in Euro and America. Our glazed tile can build beautiful roof, Every pitch is same with 350mm. 350mm is standard of Euro market. No cut surface painting. There is no gaps when installation
|
Product Name
|
Glazed Tile Roll Forming Machine For Yx35-925 Profile
|
|
Applicable Industries
|
Hotels,Garment Shops, Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works,Energy & Mining,Food & Beverage Shops,Advertising Company
|
|
Tile Type
|
Steel,Colored,Glazed,Colored Steel,Colored Glaze,Colored Glaze Steel, Glazed Steel
|
|
Use
|
Roof,Others
|
|
Production Capacity
|
8m/min,11m/min,Others
|
|
Voltage
|
220 V,380 V,415 V,440 V
|
|
Dimension(L*W*H)
|
20*2*1.5 Meter
|
|
Weight
|
8800 KGS
|
|
Features
|
Fastest speed,Remote Production Control,Easy installation,Easy operation,Mini space,Full lifetime service
|
|
Rolling Thinckness
|
0.3-0.6 mm
|
|
Feeding Width
|
914 mm,940 mm,1000 mm,1219 mm,1250 mm
|
|
Power
|
13 KW
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
