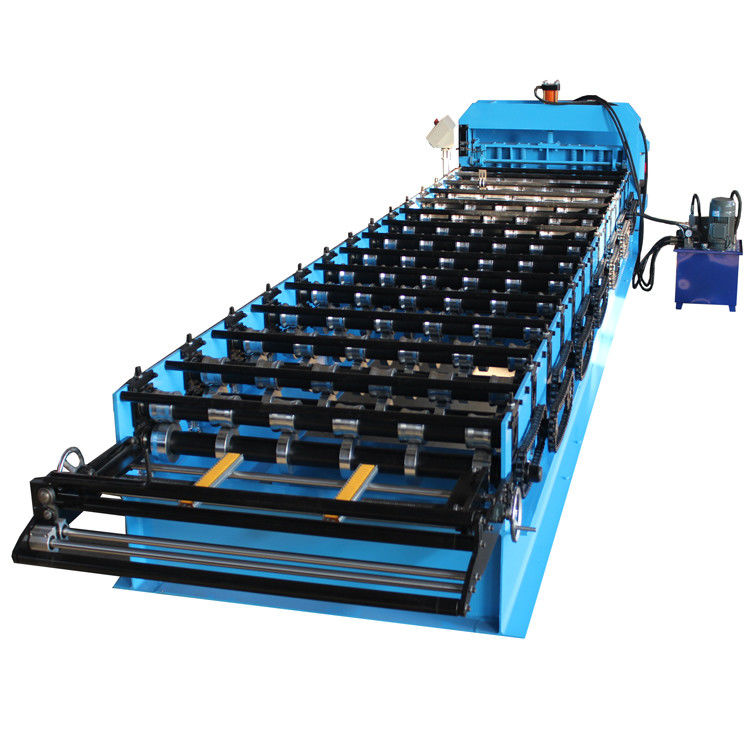

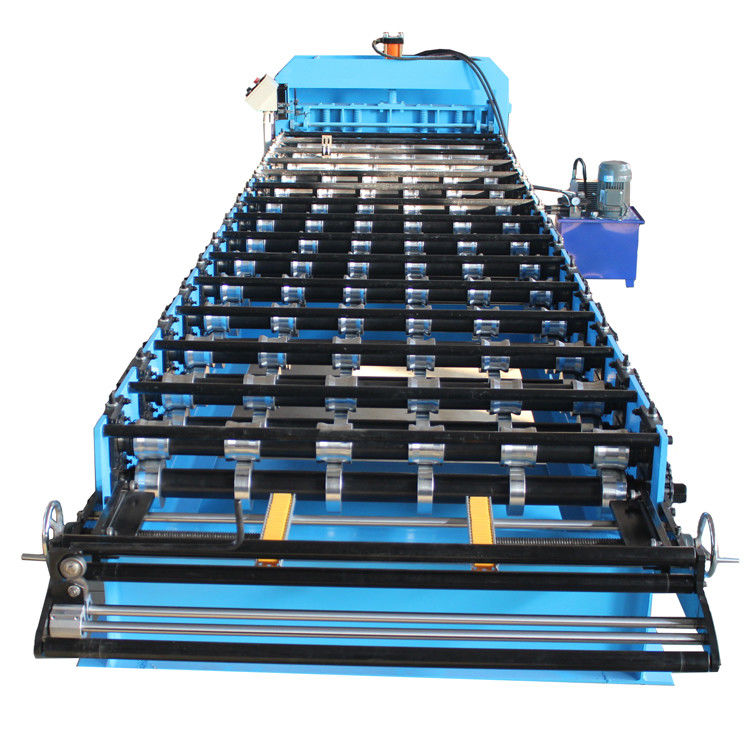

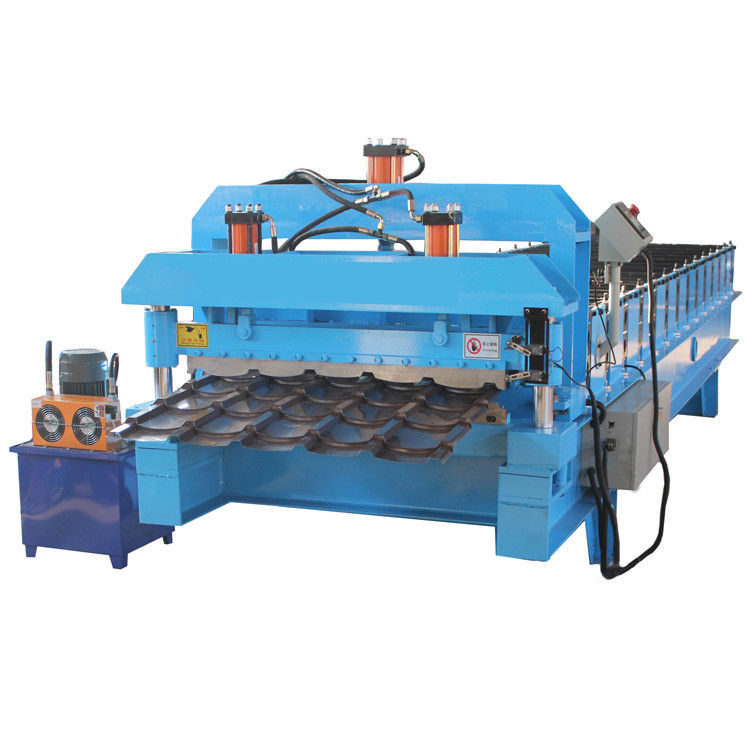

Glazed Tile Step Tile Roll Forming Machine Color Steel Roof Making Machine
Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine.Roofing Tile Making Machine Glazed Tile step roll forming machine , suitable for PPGI material and other harder coils , the finished sheet usually worked for roof and wall panel . It has beautiful water wave design , now is widely used in all over the world.Glazed tile roll forming machine is our advantage equipment. We have high standard for glazed tile roll forming machine. No painting break is our first step. The second is accurate length of every pitch. The third is installation with acceptable gaps.
|
Suitable material
|
Strip steel
|
|
Working speed
|
1- 3 m/min
|
|
Main motor power
|
7.5 kw
|
|
Hydraulic station power
|
4 kw
|
|
Thickness of material
|
0.3-0.8 mm
|
|
Roller station
|
16 stations
|
|
Driving mode
|
Chain
|
|
Electric tension
|
380 V /3 phase/ 50 HZ
|
|
Material of roller
|
45# forged steel
|
|
Material of cutting
|
Cr12
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
