उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou fms
प्रमाणन:
CE,ISO
मॉडल संख्या:
नालीदार
वीडियो
वीडियो

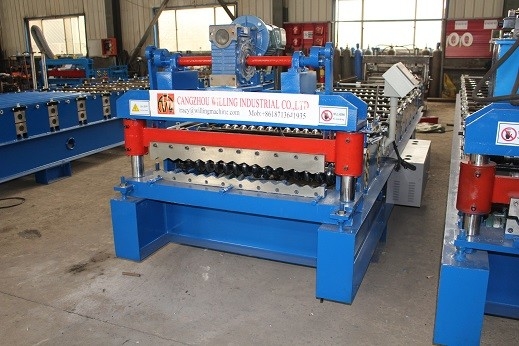

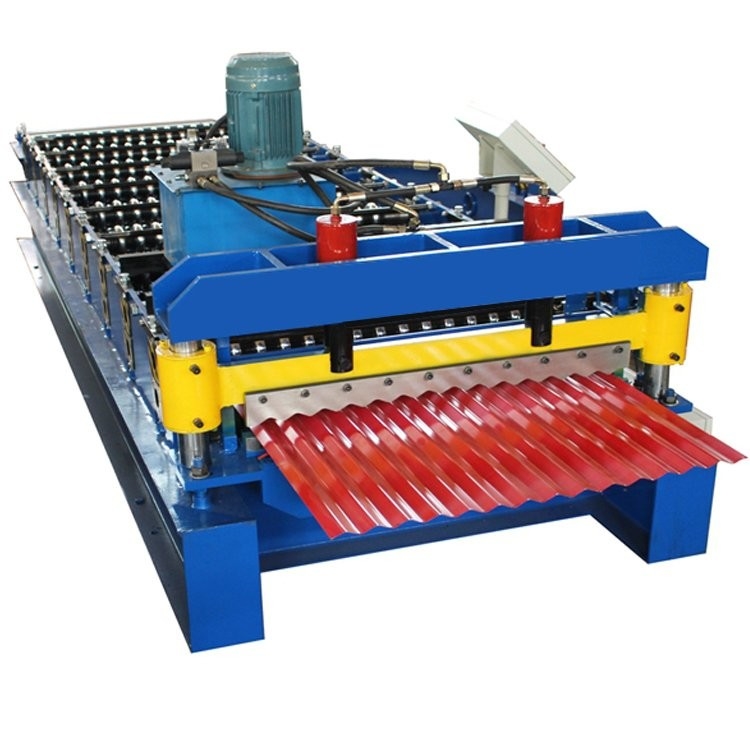

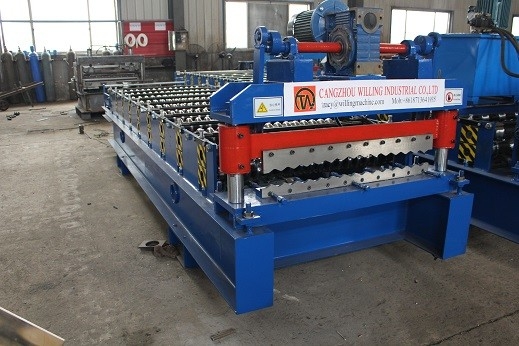

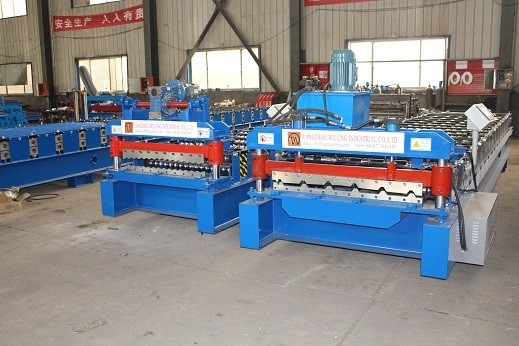

Corrugated Sheet Roll Forming Machine Wave type with high Accuracy cutting
Through a series of steps, this type of corrugated machine produces metal roofing sheets from GI/PPGI. As the motor speed , the length and quantity are controlled by the PLC system, resulting in continuous automatic production, which is ideal for cold roll forming.
| ding host | Model | roof tile making machine |
| Forming machine size | 6500mm*1500mm*1300mm | |
| weight | 3.5T | |
| frame structure | Frame welded | |
| Roll station | 13 row | |
| Shaft materials | 45# steel | |
| Out diameter of shaft | Φ75mm | |
| Roller materials | 45# steel hard chromium plating | |
| Drive | By chain | |
| Sprocket chain | 1 inch | |
| Main power | 5.5 + 4 kw | |
| Working speed | 8-12 m/min | |
| Material thickness | 0.3-0.8mm | |
| Made board | 18mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for 12 months after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% TT in advance
60% TT before the shipment and after inspection
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
