उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
cangzhou fms
प्रमाणन:
ISO
मॉडल संख्या:
आधा गोला
वीडियो
वीडियो

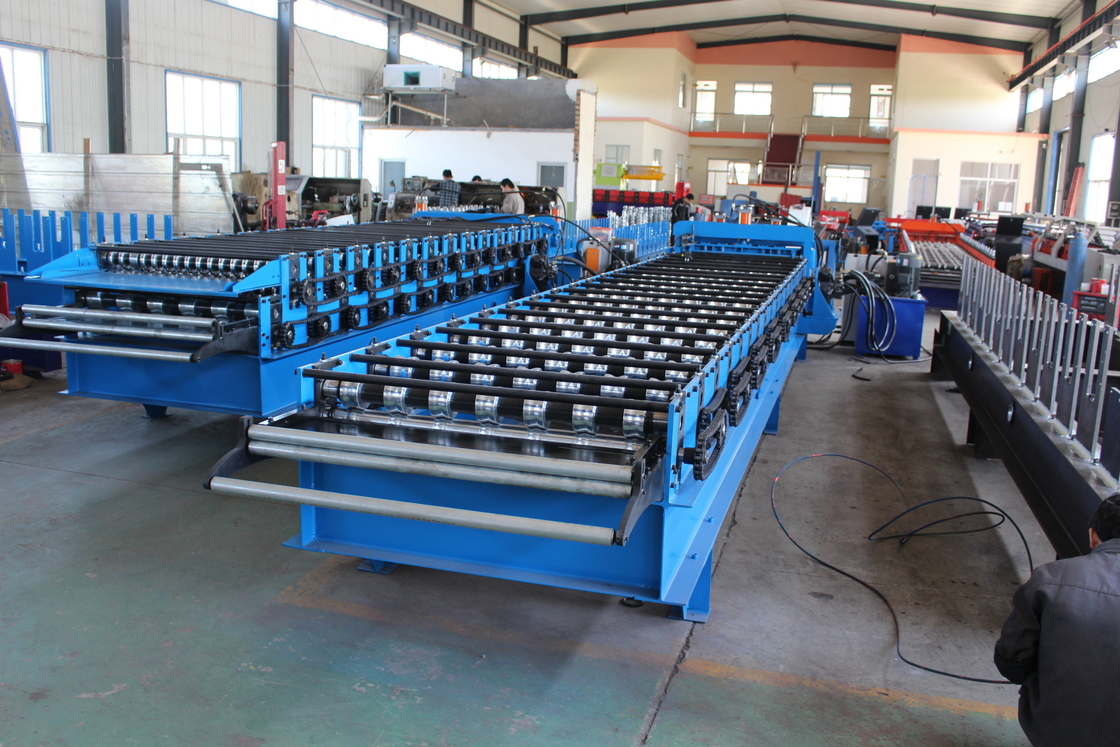

Semicircle Type Tile Roll Forming Machine For Roof And Wall Use
Semicircle Type Tile roll forming machine , suitable for PPGI material and other type coils , the finished product widely use for roof and wall panel . It has wave design .Semicircle Type Tile making machine is our advantage equipment. with long service life and productive produce,it Get customer unanimous praise.
|
Suitable material
|
Strip steel
|
|
Working speed
|
2- 4 m/min
|
|
Main motor power
|
5 kw
|
|

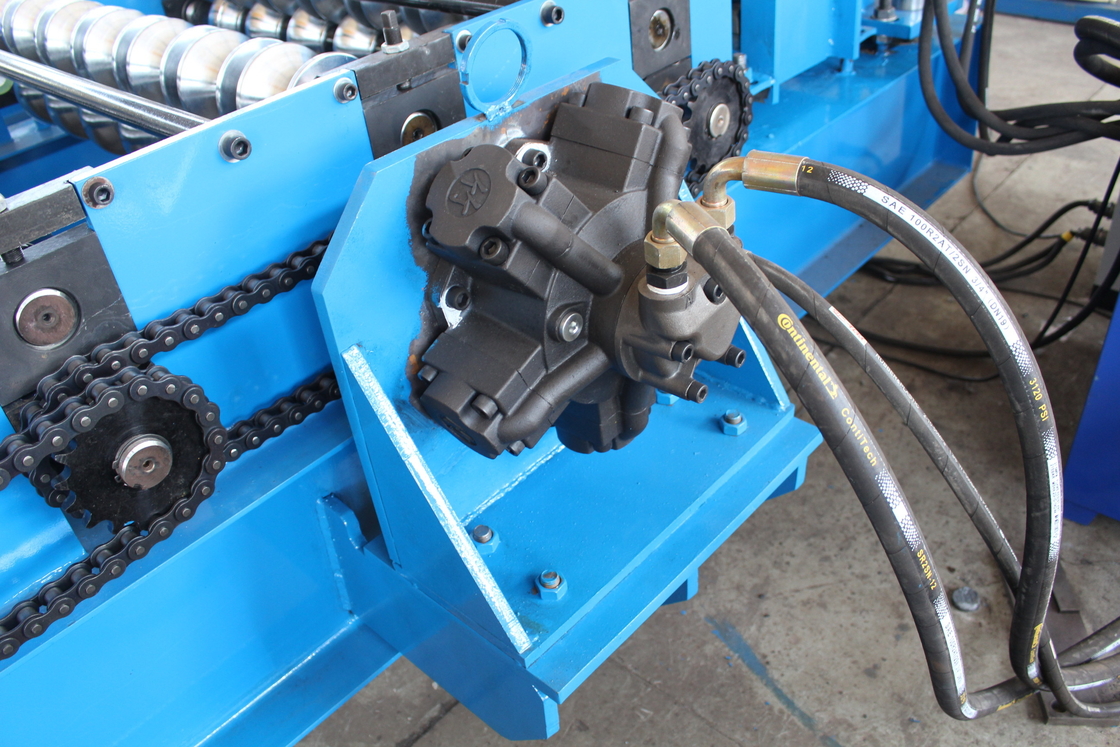

Hydraulic station power
|
4 kw
|
|
Thickness of material
|
0.3-0.6 mm
|
|
Roller station
|
17 stations
|
|
Driving mode
|
single Chain
|
|
Electric tension
|
380 V /3 phase/ 50 HZ
|
|
Material of roller
|
45# forged steel
|
|

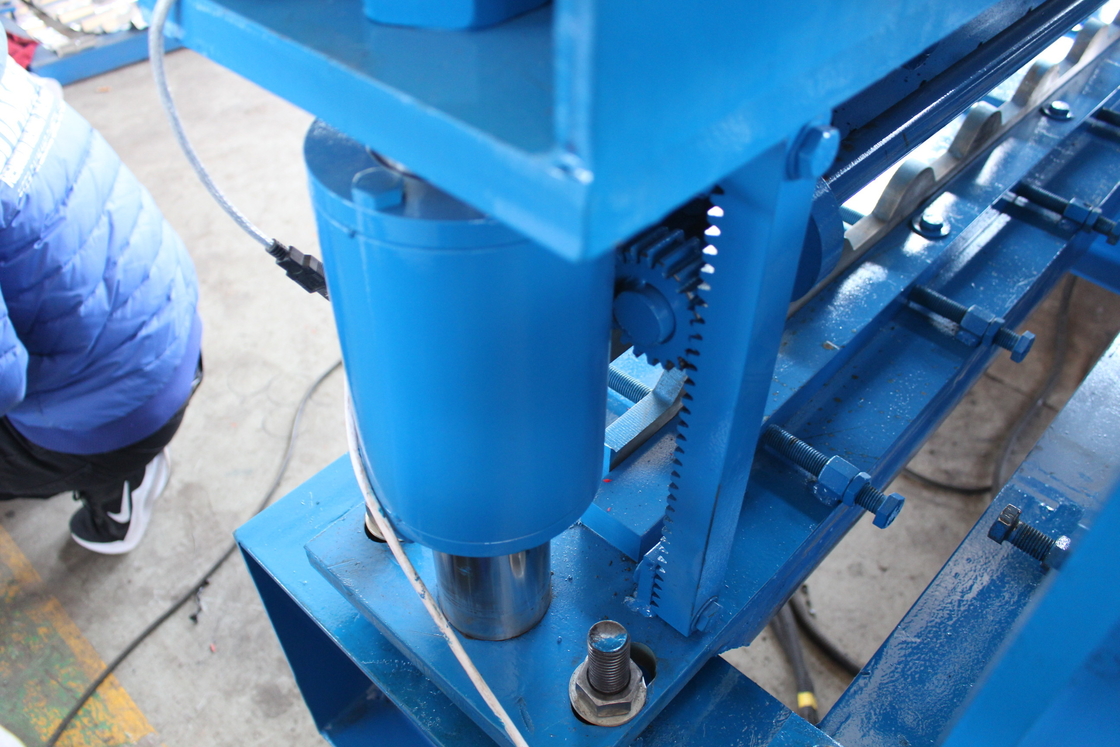

Material of cutting
|
Cr12Mov
|
Payment terms
40% in advance by TT
60% before shipping by TT
Delivery
FOB: Tianjin Xingang Port or CIF requested port
Leading time: 20 days after advance payment.
