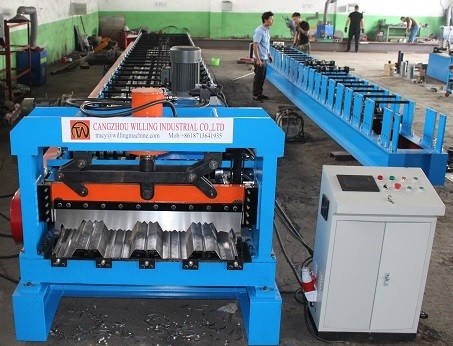

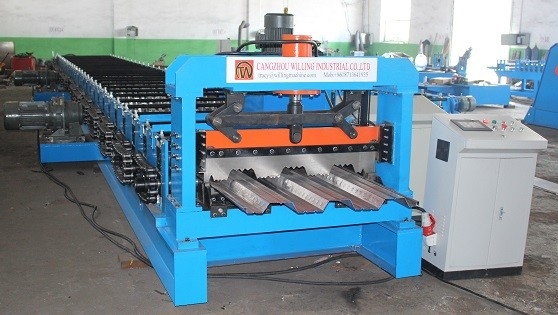

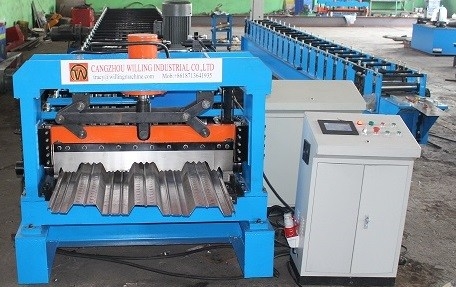

Galvanized Steel Floor Deck Forming Machinet Trapezoidal Profile
The floor Deck making machine is a special production line equipment specially designed for the cold roll processing industry of the metal plate. It can make product according to the user's requirements,The production equipment has the characteristics of low noise, stable gearbox, convenient operation and exquisite rolling products.
| No. | Item | Description |
| 1 | Coil | PI, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-1.5mm |
| 3 | Working Speed | 3-5 m/min ( not including the cutting time) |
| 4 | Roller Station | 16 Raws |
| 5 |
Dimension (L*W*H) |
8000 mm*1500 mm*1500 mm |
| 6 | Machine Weight | 5800 KG |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
7.5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The floor deck combination machine is suitable for various irregular floor structures, and has very prominent application areas in different types of prefabricated panels and high -speed railway structures and buildings. The use of floor deck has many advantages, which can help users save installation costs and reduce disassembly difficulty. At the same time, it can also save decoration time.
Advantage
The material selection of the floor molding machine is economical, and the comprehensive cost advantage is particularly obvious. That is to say, the product is very effective, and its product can improve the quality and efficiency of the laying. Large -scale. Reduce building costs and help users save decorative costs; after using equipment, it can also reduce the construction period and reduce the cost of on -site installation..
