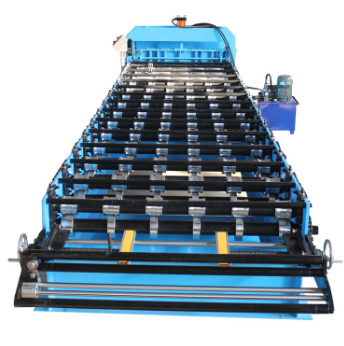

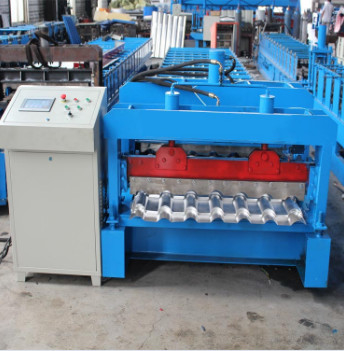

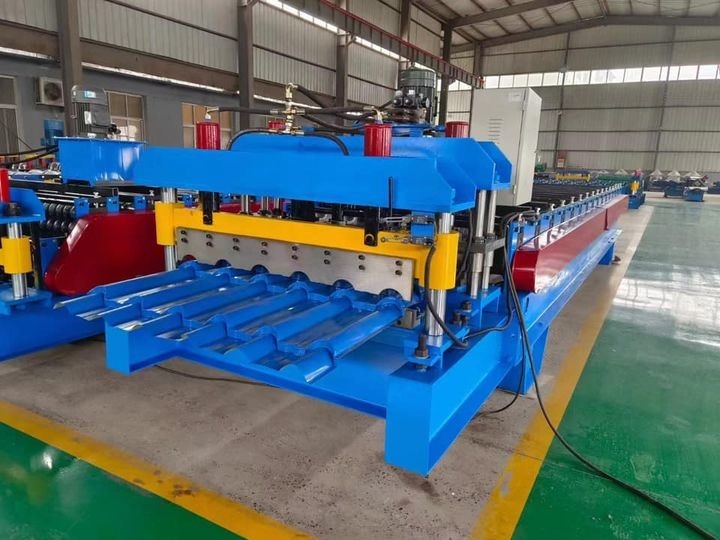

Glazed Tile Roll Forming Machine Bamboo Type Roof Making Machine
Glazed Tile Roll Forming Machine, Use PPGI as material and other harder coils , the finished tiles Widely worked for roof and wall panel . Glazed tile roll forming machine is our advantage equipment. We have high standard for glazed tile roll forming machine. firstly No painting break . secondly is the accurate length of every tiles. The third is installation with easy operate.
|
Suitable material
|
Strip steel
|
|
Working speed
|
1- 3 m/min
|
|
Main motor power
|
7.5 kw
|
|
Hydraulic station power
|
4 kw
|
|
Thickness of material
|
0.3-0.8 mm
|
|
Roller station
|
16 stations
|
|
Driving mode
|
Chain
|
|
Electric tension
|
380 V /3 phase/ 50 HZ
|
|
Material of roller
|
45# forged steel
|
|
Material of cutting
|
Cr12
|
Application
The finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes
Delivery And Payment
FOB Tianjin Xingang Port or CIF require Port
The Delivery Time: 30 days after the down payment is received.
30% advance payment for arrange production .
70% balance before shipping and after inspection .
